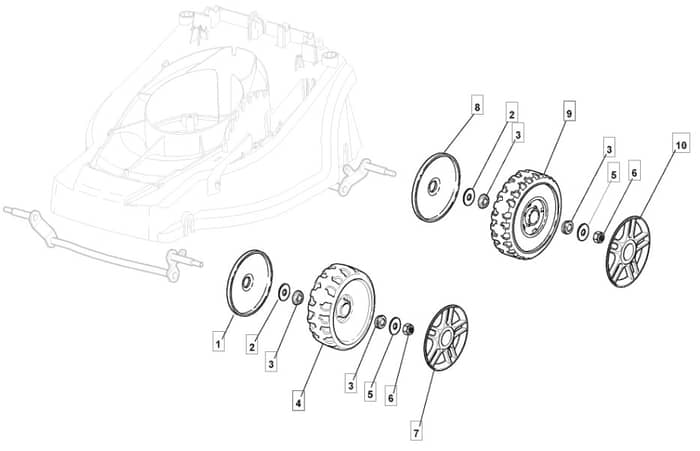

EL 410 - 2011 - 294410663/M11 - Mountfield Rotary Mower Wheels Diagram

Name: EL 410 - 2011 - 294410663/M11 - Mountfield Rotary Mower Wheels Diagram
SKU: el_410_294410663_m11_wheels-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EL 410 - 2011 - 294410663/M11 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield EL 410 Parts Diagram

Model Year - 2011

Model Type - SPL 410

Art.N - 294410663/M11

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322600095/0 Available to backorder	Protection. Wheel	£1.55 £1.29
2	MO122675100/0 Available to backorder	Washer	£1.82 £1.52
3	MO122122206/0 In stock	Bearing	£1.82 £1.52
4	MO322686091/1 In stock	Wheel	£6.76 £5.63
5	MO112523060/0 In stock	Washer	£1.55 £1.29
6	MO112155000/0 In stock	Nut	£1.55 £1.29
7	MOREPLA0000075 In stock	Hub Cap Grey Grey	£5.35 £4.46
8	MO322600131/0 Available to backorder	Protection. Wheel	£1.69 £1.41
9	MO381007347/0 Available to backorder	Wheel To 31-8-2006	£13.84 £11.53
9	MO322686092/0 Available to backorder	Wheel Ø 190 From 01-9-2006	£5.92 £4.93
10	MO322110492/0 Available to backorder	Beta Hub Cap D.210 [Grey]	£2.29 £1.91
