EL 410 - 2009 - 294411663/UM9 - Mountfield Rotary Mower Handle Diagram

Description

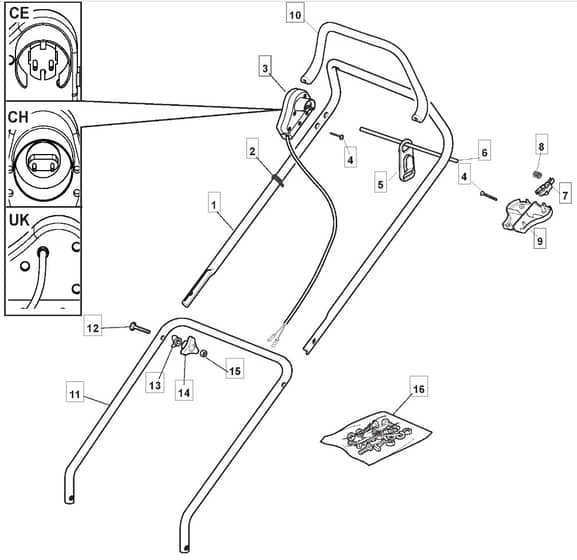

Mountfield EL 410 Parts Diagram

Model Year - 2009

Model Type - SPL 410

Art.N - 294411663/UM9

	Part No.	Details
1	MO381006571/0 Available to backorder	Handle. Upper Part	£24.22 £20.18
2	MO122192000/1 Available to backorder	Clamp	£1.84 £1.53
3	MO381600548/0 Available to backorder	Dead Hand Switch Uk	£89.39 £74.49
4	MO112728701/0 Available to backorder	Screw	£1.39 £1.16
5	MO322195101/4 Available to backorder	Fairlead	£2.11 £1.76
7	MO322230350/2 Available to backorder	Left Fulcrum	£1.97 £1.64
8	MO122450115/0 In stock	Spring	£1.55 £1.29
9	MO322785144/1 Available to backorder	Support	£2.82 £2.35
10	MO322322880/1 Available to backorder	Lever. Engine Brake Black From 01-9-2007	£7.81 £6.51
12	MO112819201/0 In stock	Screw	£2.81 £2.34
13	MO122680006/1 In stock	Washer	£1.84 £1.53
14	MO122399900/0 In stock	Black Knob	£1.55 £1.29
15	MO112293200/0 In stock	Nut	£1.55 £1.29
