EL 3900 - 2008 - 297591653/M08 - Mountfield Rotary Mower Handle Diagram

Name: EL 3900 - 2008 - 297591653/M08 - Mountfield Rotary Mower Handle Diagram
SKU: el_3900_297591653_m08_handle-group
Price: 1.16 GBP
Availability: InStock

Part No. el_3900_297591653_m08_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EL 3900 - 2008 - 297591653/M08 - Mountfield Rotary Mower Handle Diagram

Description

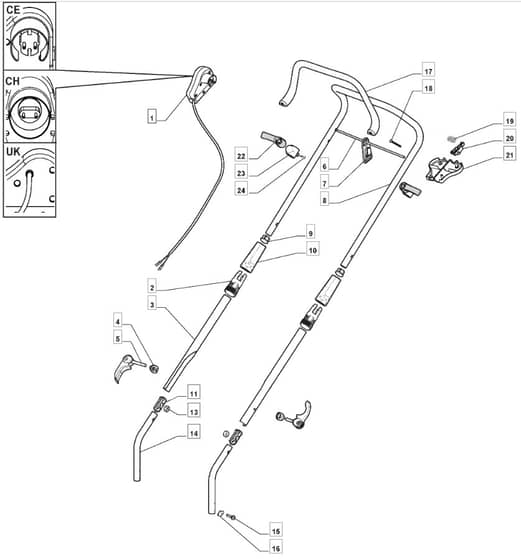

Mountfield EL 3900 Parts Diagram

Model Year - 2008

Model Type - NCL 390

Art.N - 297591653/M08

	Part No.	Details
4	MO322680014/0 Available to backorder	Washer	£1.55 £1.29
5	MO381003252/0 Available to backorder	Lock Handle Lever	£7.12 £5.93
6	MO122010250/0 Available to backorder	Fairlead	£1.70 £1.42
7	MO322195101/4 Available to backorder	Fairlead	£2.11 £1.76
8	MO381006941/4 Available to backorder	Handle. Upper Part	£27.58 £22.98
11	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch To 31-8-2008	£1.55 £1.29
13	MO112293200/0 In stock	Nut From 01-9-2008	£1.55 £1.29
13	MO112155000/0 In stock	Nut To 31-8-2008	£1.55 £1.29
15	MO112731600/1 Available to backorder	Screw	£1.55 £1.29
16	MO322545135/0 Available to backorder	Plate	£1.97 £1.64
17	MO322322880/1 Available to backorder	Lever. Engine Brake Black	£7.81 £6.51
18	MO112728701/0 Available to backorder	Screw	£1.39 £1.16
19	MO122450115/0 In stock	Spring	£1.55 £1.29
20	MO322230350/2 Available to backorder	Left Fulcrum	£1.97 £1.64
21	MO322785144/1 Available to backorder	Support	£2.82 £2.35
24	MO112728706/0 In stock	Screw	£1.60 £1.33
999	MO381600547/2 Available to backorder	Dead Hand Switch Ce	£26.88 £22.40
999	MO381600548/0 Available to backorder	Dead-Hand Switch (Uk)+15Mt Thro	£89.39 £74.49
