EL 390 - 2006-2007 - 297393653/MO6 - Mountfield Rotary Mower Blade Diagram

Name: EL 390 - 2006-2007 - 297393653/MO6 - Mountfield Rotary Mower Blade Diagram
SKU: el_390_297393653_mo6_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. el_390_297393653_mo6_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EL 390 - 2006-2007 - 297393653/MO6 - Mountfield Rotary Mower Blade Diagram

Description

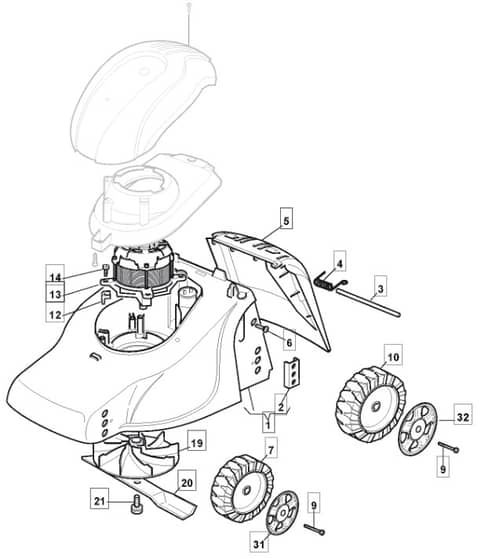

Mountfield EL 390 Parts Diagram

Model Year - 2006-2007

Model Type - C 390

Art.N - 297393653/MO6

	Part No.	Details
2	MO322785087/1 Available to backorder	Support. Wheel	£3.10 £2.58
4	MO122450250/0 Available to backorder	Spring	£1.55 £1.29
6	MO112728450/0 In stock	Screw	£1.55 £1.29
7	MO122686083/0 Available to backorder	Wheel	£3.52 £2.93
9	MO122524337/0 Available to backorder	Pin	£4.64 £3.87
10	MO122686085/0 Available to backorder	Wheel	£4.08 £3.40
12	MO122167700/0 Available to backorder	Spacer	£1.55 £1.29
13	MO118563669/0 Available to backorder	Electric Motor 1300W ATB 1300W 230-240V From 01-9-2006	£147.79 £123.16
14	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
19	MO322465602/1 Available to backorder	Hub Fan From 01-9-2009	£5.80 £4.83
20	MO181004117/1 Available to backorder	Blade Winged To 31-8-2004	£18.70 £15.58
20	MO181004142/0 Available to backorder	Blade Standard From 01-9-2004	£15.62 £13.02
21	MO381004352/1 In stock	Screw	£4.08 £3.40
