EL 380 - 2014 - 294380063/BQ - Mountfield Rotary Mower Wheels Diagram

Name: EL 380 - 2014 - 294380063/BQ - Mountfield Rotary Mower Wheels Diagram
SKU: el_380_294380063_bq_wheels-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EL 380 - 2014 - 294380063/BQ - Mountfield Rotary Mower Wheels Diagram

Description

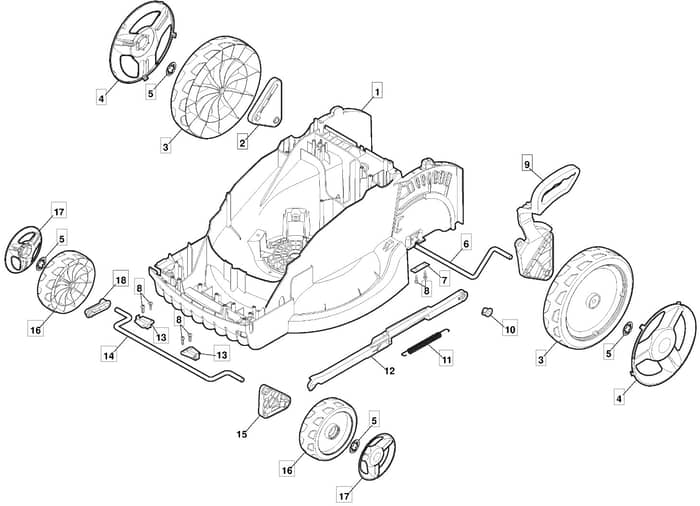

Mountfield EL 380 Parts Diagram

Model Year - 2014

Model Type - EL 380

Art.N - 294380063/BQ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322066783/0 Available to backorder	Deck Stiga Grey	£90.10 £75.08
2	MO322785450/0 Available to backorder	Support. Wheel From 01-9-2014 To 31-5-2019	£1.97 £1.64
2	MO322785450/1 Available to backorder	Support. Wheel From 01-6-2019	£1.97 £1.64
2	MO322785387/0 Available to backorder	Support. Wheel To 31-8-2014	£2.12 £1.77
3	MO322686105/0 Available to backorder	Wheel	£9.08 £7.57
4	MO322110684/0 Available to backorder	Hub Cap Grey	£3.10 £2.58
5	MO112604903/0 In stock	Washer	£1.55 £1.29
6	MO122033425/0 Available to backorder	Rear Wheel Axle	£9.58 £7.98
7	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
8	MO112728714/0 Available to backorder	Screw	£1.55 £1.29
9	MO322785414/0 Available to backorder	Lever. Height Adjustment To 31-8-2012	£14.64 £12.20
9	MO322785443/1 Available to backorder	Lever	£16.34 £13.62
9	MO322785388/1 Available to backorder	Lever	£18.02 £15.02
9	MO322785414/2 Available to backorder	Lever	£16.12 £13.43
10	MO322524354/0 In stock	Pin	£1.55 £1.29
11	MO122446195/0 Available to backorder	Spring	£2.81 £2.34
13	MO322785415/0 Available to backorder	Plate	£1.97 £1.64
14	MO122033424/0 Available to backorder	Rear Wheel Axle	£9.28 £7.73
16	MO2135030 Available to backorder	Wheel	£1.40 £1.17
17	MO322110683/0 In stock	Hub Cap Grey	£1.55 £1.29
18	MO322785449/0 Available to backorder	Front Wheel Support [Grey]	£1.55 £1.29
