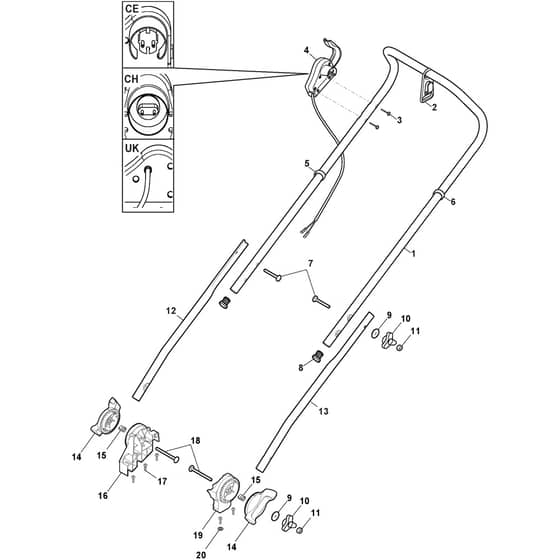

EL 380 - 2014-2016 - 294380063/12 - Castel Garden Rotary Mower Handle Upper Part Diagram

Name: EL 380 - 2014-2016 - 294380063/12 - Castel Garden Rotary Mower Handle Upper Part Diagram
SKU: el_380_294380063_12_handle_upper_part-group
Price: 1.16 GBP
Availability: InStock

Part No. el_380_294380063_12_handle_upper_part-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EL 380 - 2014-2016 - 294380063/12 - Castel Garden Rotary Mower Handle Upper Part Diagram

Description

Castel Garden EL 380 Parts Diagram

Product Name - EL 380

Model Year - 2014-2016

Model Type - EL 380

Art.N - 294380063/12

Engine Model -

	Part No.	Details
1	MO381007516/0 Available to backorder	Handle. Upper Part	£27.04 £22.53
2	MO322195101/4 Available to backorder	Fairlead	£2.11 £1.76
3	MO112728701/0 Available to backorder	Screw	£1.39 £1.16
5	MO122192000/1 Available to backorder	Clamp	£1.84 £1.53
6	MO122192151/0 Available to backorder	Fairlead Holder Clamp	£1.55 £1.29
7	MO122943016/0 In stock	Screw	£1.55 £1.29
8	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch	£1.55 £1.29
9	MO112523050/0 In stock	Washer	£1.57 £1.31
10	MO122399900/0 In stock	Black Knob	£1.55 £1.29
11	MO112154521/0 Available to backorder	Nut	£1.55 £1.29
12	MO381007517/0 Available to backorder	Right Handle. Lower Part	£9.28 £7.73
13	MO381007518/0 Available to backorder	Left Handle. Lower Part	£7.97 £6.64
14	MO322246100/0 Available to backorder	Handle Joint	£4.64 £3.87
15	MO122430210/0 Available to backorder	Spring	£1.70 £1.42
16	MO322745055/0 Available to backorder	Right Joint	£7.31 £6.09
17	MO112728714/0 Available to backorder	Screw	£1.63 £1.36
18	MO122943017/0 Available to backorder	Screw	£1.70 £1.42
19	MO322745051/0 Available to backorder	Left Joint	£7.31 £6.09
20	MO112521320/0 Available to backorder	Washer	£1.63 £1.36
