EL 350 - 2008-2013 - 297353653/UM8 - Mountfield Rotary Mower Handle Diagram

Name: EL 350 - 2008-2013 - 297353653/UM8 - Mountfield Rotary Mower Handle Diagram
SKU: el_350_297353653_um8_handle-group
Price: 1.16 GBP
Availability: InStock

Part No. el_350_297353653_um8_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

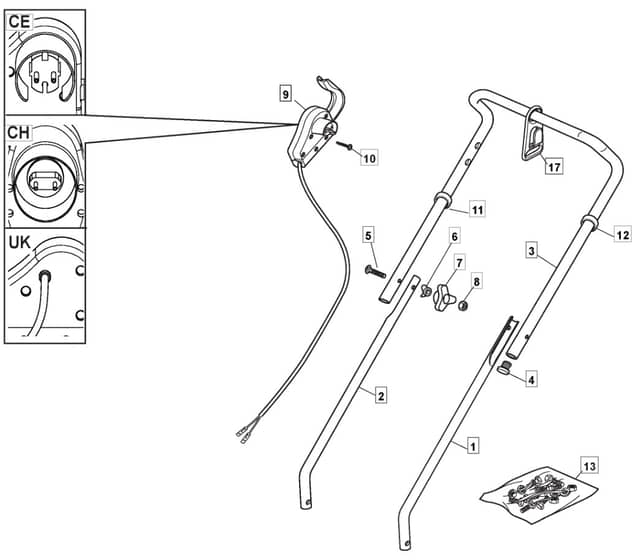

EL 350 - 2008-2013 - 297353653/UM8 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield EL 350 Parts Diagram

Model Year - 2008-2013

Model Type - C 350

Art.N - 297353653/UM8

	Part No.	Details
1	MO381006940/2 Available to backorder	Handle	£9.07 £7.56
2	MO381006939/2 Available to backorder	Right Handle	£9.17 £7.64
3	MO381006941/4 Available to backorder	Handle	£27.58 £22.98
4	MO118566116/0 Available to backorder	Cap From 01-9-2011	£2.24 £1.87
4	MO118566112/0 Available to backorder	Polyethylene Push Road D.20Inch To 31-8-2011	£1.55 £1.29
5	MO112815245/0 Available to backorder	Screw From 01-9-2004	£1.55 £1.29
5	MO112819121/0 In stock	Screw To 31-8-2004	£1.97 £1.64
6	MO122680006/1 In stock	Washer	£1.84 £1.53
7	MO122399900/0 In stock	Black Knob	£1.55 £1.29
8	MO112293200/0 In stock	Nut	£1.55 £1.29
9	MO381600548/0 Available to backorder	Dead Hand Switch Uk (UK) From 01-9-2011 To 31-8-2013	£89.39 £74.49
9	MO381600547/2 Available to backorder	Dead Hand Switch Ce (CE) From 01-9-2005 To 31-8-2011	£26.88 £22.40
10	MO112728701/0 Available to backorder	Screw	£1.39 £1.16
11	MO122192000/1 Available to backorder	Clamp	£1.84 £1.53
12	MO122192151/0 Available to backorder	Fairlead Holder Clamp	£1.55 £1.29
13	MO381008669/0 Available to backorder	Outfit. Screws From 01-9-2004	£14.70 £12.25
17	MO322195101/4 Available to backorder	Cableholder For Electric Lawnmowers	£2.11 £1.76
