EL 350 - 2006-2007 - 297353653/MO6 - Mountfield Rotary Mower Blade Diagram

Description

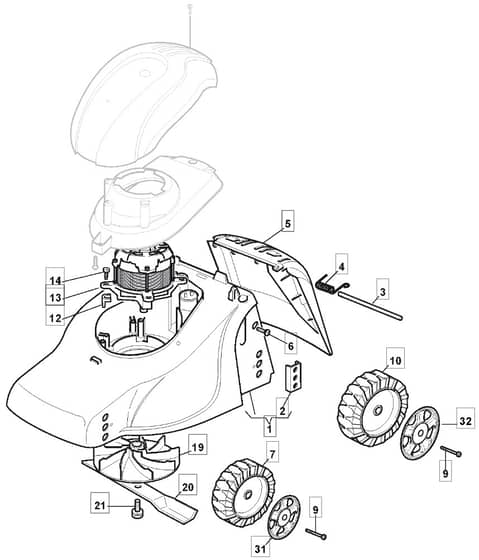

Mountfield EL 350 Parts Diagram

Model Year - 2006-2007

Model Type - C 350

Art.N - 297353653/MO6

	Part No.	Details
2	MO322785087/1 Available to backorder	Support. Wheel	£3.10 £2.58
4	MO122450250/0 Available to backorder	Spring	£1.55 £1.29
5	MO322600055/3 Available to backorder	Stone-Guard	£10.00 £8.33
6	MO112728450/0 In stock	Screw	£1.55 £1.29

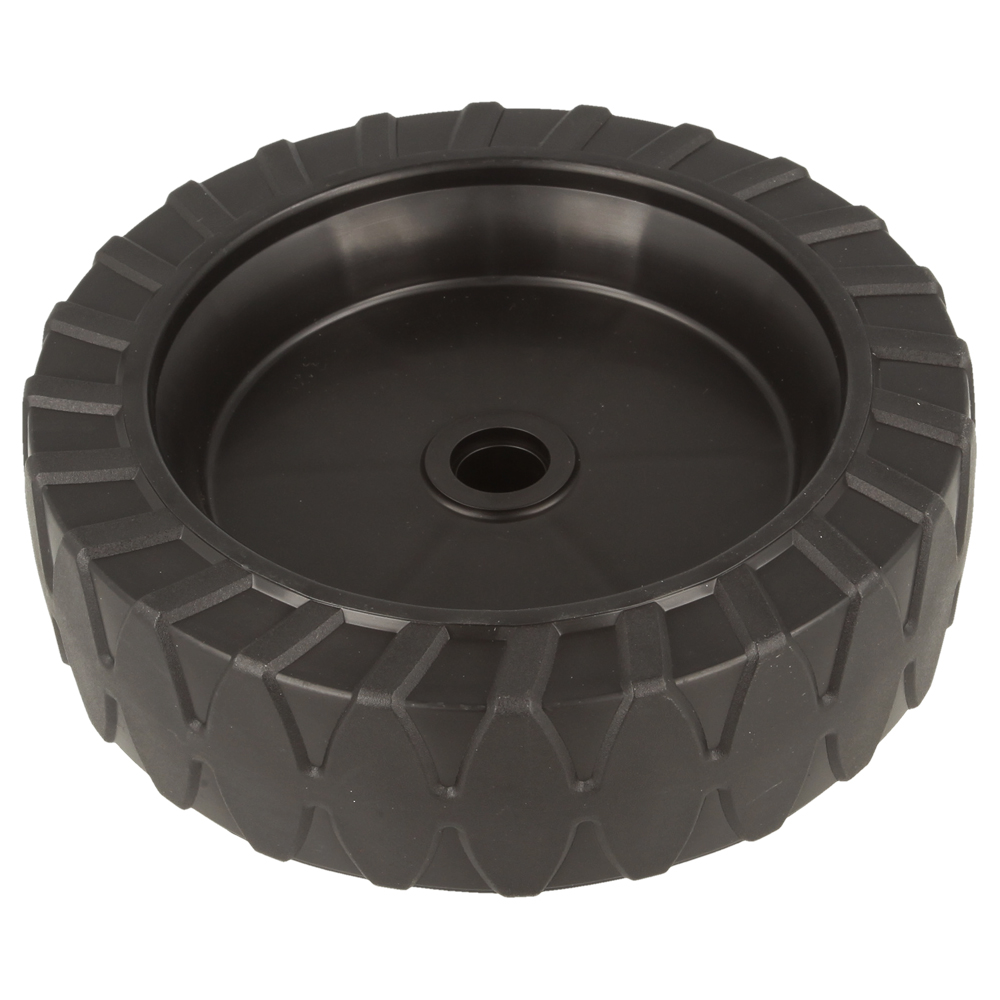

7	MO122686083/0 Available to backorder	Wheel	£3.52 £2.93
9	MO122524337/0 Available to backorder	Pin	£4.64 £3.87
10	MO122686085/0 Available to backorder	Wheel	£4.08 £3.40
12	MO122167700/0 Available to backorder	Spacer	£1.55 £1.29
13	MO118563678/0 Available to backorder	Electric Motor 1000W	£78.85 £65.71
14	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
19	MO322465602/1 Available to backorder	Hub Fan From 01-9-2009	£5.80 £4.83
20	MO181004115/1 Available to backorder	Blade To 31-8-2004	£7.94 £6.62
20	MO181004116/0 Available to backorder	Blade Winged	£13.57 £11.31
21	MO381004352/1 In stock	Screw	£4.08 £3.40
