EL 340 Li - 2013-2014 - 294345063/13 - Castel Garden Rotary Mower Handle Upper Part Diagram

Name: EL 340 Li - 2013-2014 - 294345063/13 - Castel Garden Rotary Mower Handle Upper Part Diagram
SKU: el_340_li_294345063_13_handle_upper_part-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EL 340 Li - 2013-2014 - 294345063/13 - Castel Garden Rotary Mower Handle Upper Part Diagram

Description

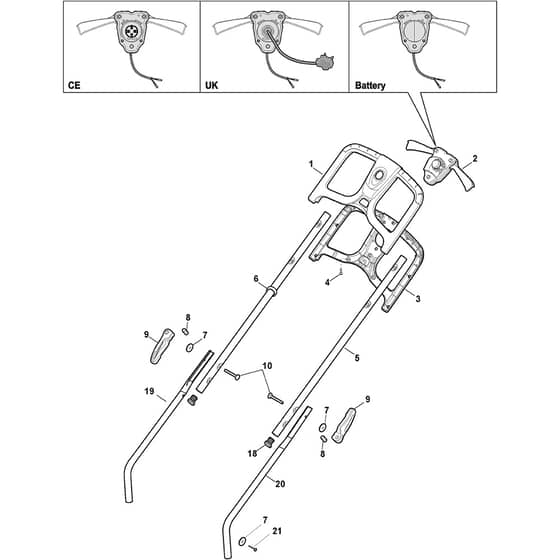

Castel Garden EL 340 Li Parts Diagram

Product Name - EL 340 Li 36V-2,6Ah DC Brushless

Model Year - 2013-2014

Model Type - EL 340 Li

Art.N - 294345063/13

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322291068/0 Available to backorder	Upper Half Handgrip Switch From 01-1-2014	£13.93 £11.61
2	MO381600540/0 Available to backorder	Dead Hand Switch To 31-8-2013	£24.64 £20.53
2	MO381600540/1 Available to backorder	Dead Hand Switch From 01-9-2013 To 31-8-2016	£35.20 £29.33
2	MO381600561/0 Available to backorder	Dead Hand Switch From 01-9-2016	£40.82 £34.02
3	MO322291069/0 Available to backorder	Lower Half Handgrip Switch From 01-9-2013	£12.82 £10.68
4	MO112728713/0 Available to backorder	Screw	£1.40 £1.17
5	MO381007532/0 Available to backorder	Handle. Upper Part	£6.76 £5.63
6	MO122192000/1 Available to backorder	Clamp	£1.82 £1.52
7	MO112523050/0 In stock	Washer	£1.55 £1.29
8	MO122524352/0 In stock	Pin	£3.52 £2.93
9	MO322319520/0 Available to backorder	Fixing Lever Handle To 31-8-2014	£2.17 £1.81
9	MO322319526/1 Available to backorder	Fixing Lever Handle From 01-9-2017	£2.40 £2.00
10	MO122943016/0 Available to backorder	Screw	£1.55 £1.29
18	MO118566116/0 Available to backorder	Cap	£2.26 £1.88
19	MO381007529/0 Available to backorder	Right Lower Handle. Black	£9.16 £7.63
20	MO381007530/0 Available to backorder	Left Lower Handle. Black	£9.00 £7.50
21	MO112728450/0 In stock	Self-Tap Screw 4.8 X 19	£1.55 £1.29
