EL 340 - 2014 - 294340063/BQ - Mountfield Rotary Mower Height Adjusting Diagram

Name: EL 340 - 2014 - 294340063/BQ - Mountfield Rotary Mower Height Adjusting Diagram
SKU: el_340_294340063_bq_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Part No. el_340_294340063_bq_height_adjusting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EL 340 - 2014 - 294340063/BQ - Mountfield Rotary Mower Height Adjusting Diagram

Description

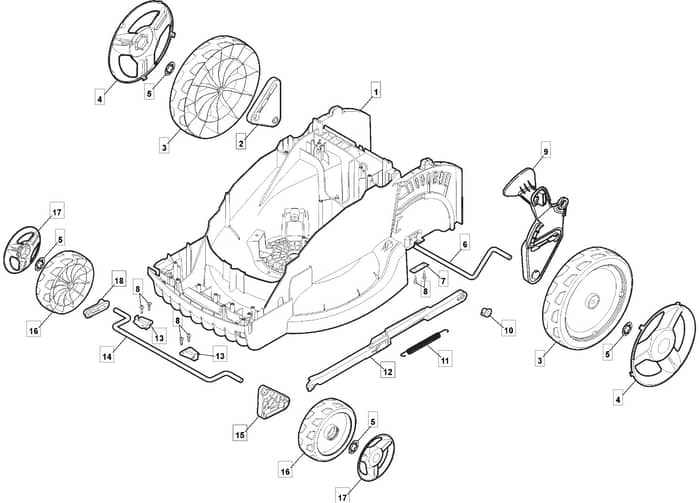

Mountfield EL 340 Parts Diagram

Model Year - 2014

Model Type -

Art.N - 294340063/BQ

	Part No.	Details
1	MO322066782/0 Available to backorder	Deck Stiga Grey	£59.12 £49.27
2	MO322785426/0 Available to backorder	Support. Wheel To 31-8-2014	£4.24 £3.53
2	MO322785448/1 Available to backorder	Support	£3.10 £2.58
3	MO322686107/0 Available to backorder	Wheel	£6.19 £5.16
4	MO322110729/0 In stock	Hub Cap Grey	£2.69 £2.24
5	MO112604903/0 In stock	Washer	£1.55 £1.29
7	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
8	MO112728714/0 Available to backorder	Screw	£1.63 £1.36
9	MO322785444/0 Available to backorder	Lever. Height Adjustment	£5.65 £4.71
10	MO322524354/0 In stock	Pin	£1.55 £1.29
11	MO122450425/0 Available to backorder	Spring	£2.94 £2.45
12	MO322869689/0 Available to backorder	Rod. Height Adjustment From 01-9-2014	£6.76 £5.63
12	MO322869687/0 Available to backorder	Rod. Height Adjustment To 31-8-2014	£7.74 £6.45
13	MO322785415/0 Available to backorder	Plate	£1.97 £1.64
14	MO122033422/0 Available to backorder	Axle. Wheels	£7.31 £6.09
15	MO322785437/0 Available to backorder	Support	£2.11 £1.76
16	MO322686106/0 In stock	Wheel	£5.21 £4.34
17	MO322110683/0 In stock	Hub Cap Grey	£1.55 £1.29
18	MO322785447/0 Available to backorder	Front Wheel Support [Grey]	£1.97 £1.64
