EL 33 - 2005 - 297307963/MOU - Mountfield Rotary Mower Main Assembly Diagram

Description

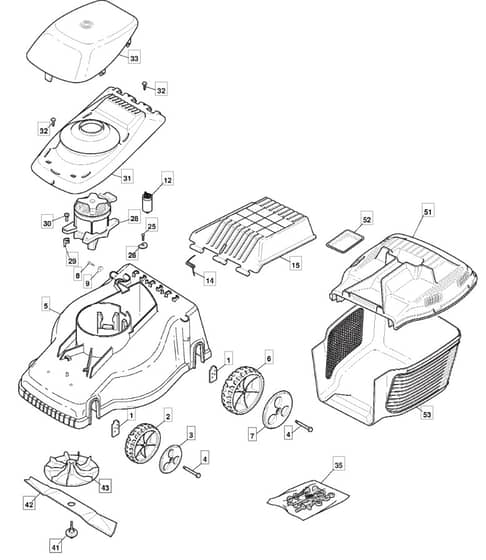

Mountfield EL 33 Parts Diagram

Model Year - 2005

Model Type - EP 350

Art.N - 297307963/MOU

	Part No.	Details
4	MO122524326/0 Available to backorder	Pin To 31-8-2006	£6.77 £5.64
6	MO322686090/0 Available to backorder	Wheel	£6.05 £5.04
8	MO112728450/0 In stock	Screw	£1.55 £1.29
9	MO322545135/0 Available to backorder	Plate	£1.97 £1.64
14	MO122450435/0 Available to backorder	Spring	£9.58 £7.98
25	MO112728099/1 Available to backorder	Screw	£1.63 £1.36
29	MO122167700/0 Available to backorder	Spacer	£1.55 £1.29
30	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
41	MO381004352/1 In stock	Screw	£4.08 £3.40
42	MO181004127/0 Available to backorder	Blade From 01-9-2007	£12.66 £10.55
43	MO322465603/0 Available to backorder	Hub Fan To 31-8-2007	£8.08 £6.73
43	MO322465602/1 Available to backorder	Hub Fan From 01-9-2010	£5.80 £4.83
52	MO322486098/0 Available to backorder	Plate	£5.63 £4.69
