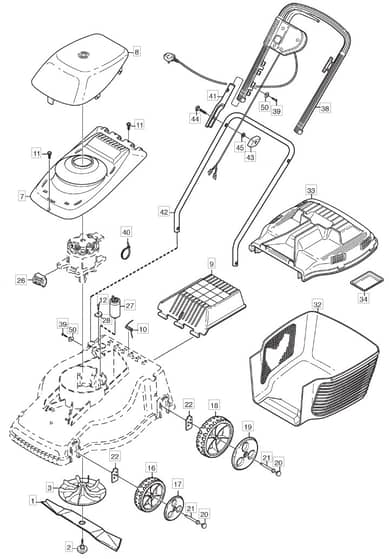

EL 33 - 2003 - 12-4521-51 - Mountfield Rotary Mower Main Assembly Diagram

Name: EL 33 - 2003 - 12-4521-51 - Mountfield Rotary Mower Main Assembly Diagram
SKU: el_33_12_4521_51_main_assembly-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EL 33 - 2003 - 12-4521-51 - Mountfield Rotary Mower Main Assembly Diagram

Description

Mountfield EL 33 Parts Diagram

Model Year - 2003

Model Type - 33 ELECTRIC

Art.N - 12-4521-51

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1111-2759-01 Available to backorder	Blade	£11.38 £9.48
3	MO322465603/0 Available to backorder	Fan.Bladeholder	£8.08 £6.73

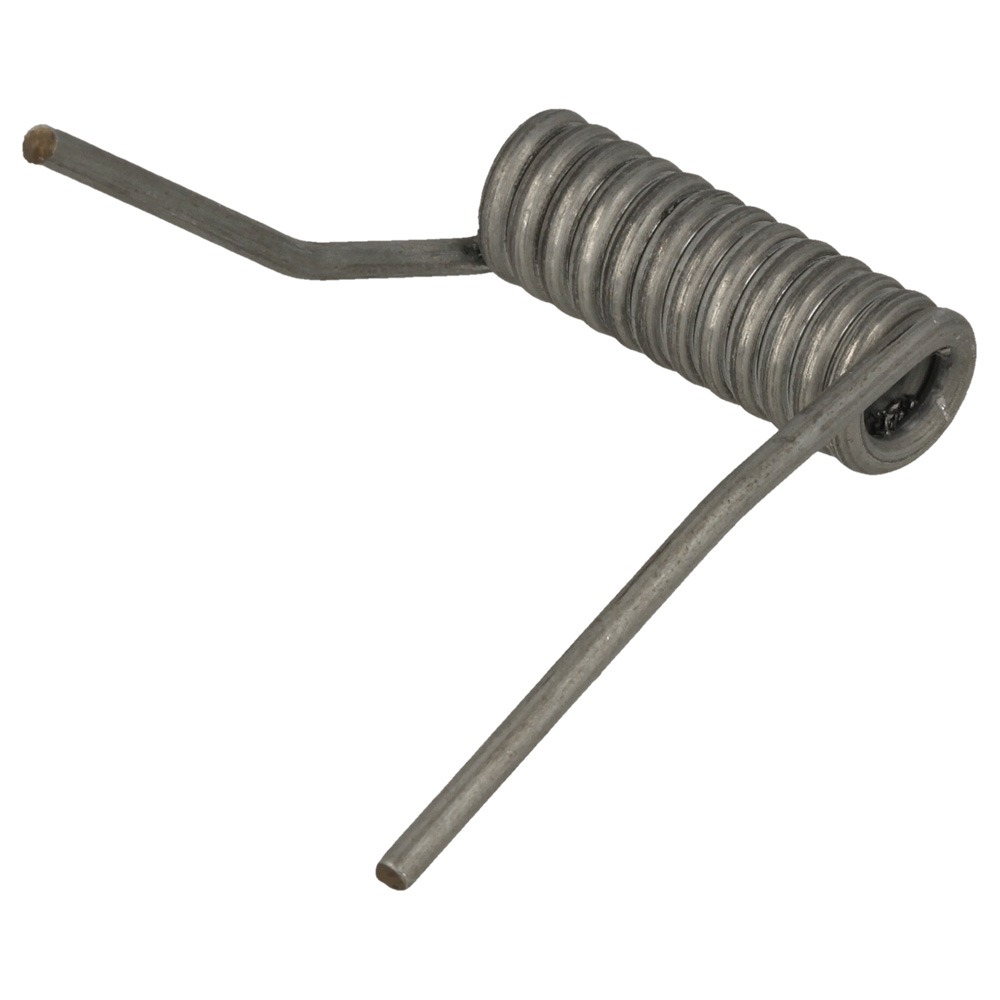

10	MO122450435/0 Available to backorder	Spring	£9.58 £7.98
12	MO112728124/0 Available to backorder	Screw	£1.55 £1.29
16	MO322686089/0 Available to backorder	Wheel	£4.87 £4.06
18	MO322686090/0 Available to backorder	Wheel	£6.05 £5.04
21	MO122524326/0 Available to backorder	Shoulderbolt 2	£6.76 £5.63
33	MO322486148/0 Available to backorder	Upper Collector (Black)	£30.55 £25.46
34	MO322486098/0 Available to backorder	Cover	£5.64 £4.70
44	MO9899-3545-12 Available to backorder	Screw	£4.63 £3.86
45	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
50	MO322545135/0 Available to backorder	Washer	£1.97 £1.64
