EGO ZT5200E-L - Ride-on Mower (Feb 2023) Main Assy Diagram

Name: EGO ZT5200E-L - Ride-on Mower (Feb 2023) Main Assy Diagram
SKU: zt5200e_l_ride_on_mower_feb_2023_main_assy-group
Price: 0.26 GBP
Availability: InStock

Part No. zt5200e_l_ride_on_mower_feb_2023_main_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EGO ZT5200E-L - Ride-on Mower (Feb 2023) Main Assy Diagram

Description

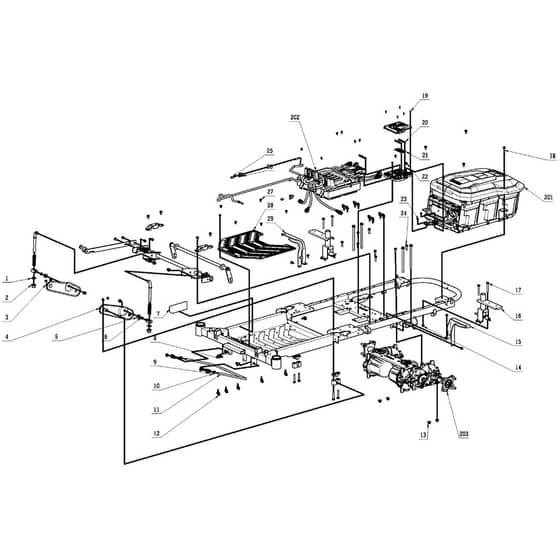

EGO ZT5200E-L Ride-on Mower (Feb 2023) Zero Turn Main Assy Parts Diagram

	Part No.	Details
1	EG5650741001 Available to backorder	Plain Washer	£0.83 £0.69
2	EG5630468001 Available to backorder	Prevailing Torque Type Hexagon Lock Nut With Flange	£2.74 £2.28
3	EG2827074001 Available to backorder	Right Lift Arm Assembly	£21.97 £18.31
4	EG2827075001 Available to backorder	Left Lift Arm Assembly	£21.97 £18.31
5	EG5650740001 Available to backorder	Plain Washer	£0.41 £0.34
6	EG5690532001 Available to backorder	Seal Ring	£0.83 £0.69
7	EG2245662003 Available to backorder	Nameplate	£4.46 £3.72
8	EG5670561001 Available to backorder	Split Pin	£0.83 £0.69
9	EG3553471001 Available to backorder	Connecting Rod Spindle	£5.14 £4.28
10	EG5630022004 Available to backorder	Hexagon Nut	£0.83 £0.69
11	EG3707327001 Available to backorder	Hanger Rod	£21.85 £18.21
12	EG3131157001 Available to backorder	Wire Holder	£2.92 £2.43
13	EG5630267001 Available to backorder	Nut	£0.83 £0.69
14	EG5630371001 Available to backorder	Prevailing Torque Type Hexagon Lock Nut With Flange	£1.40 £1.17
15	EG3707365001 Available to backorder	Left Supporting Plate	£13.55 £11.29
16	EG2827182001 Available to backorder	Support Assembly	£37.72 £31.43
17	EG5640363001 Available to backorder	Flange Bolt-Large Series	£1.66 £1.38
18	EG5640360001 Available to backorder	Hexagon Flange Head Thread Forming Screw	£1.97 £1.64
19	EG5620377003 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
20	EG5620618001 Available to backorder	Screw With Washer	£0.83 £0.69
21	EG4970355001 Available to backorder	Fuse	£15.97 £13.31
22	EG5610388001 Available to backorder	Hexalobular Socket Thread Forming Screw	£0.48 £0.40
23	EG5640373001 Available to backorder	Hex Serrated Flange Screw	£0.71 £0.59
24	EG5640361001 Available to backorder	Hexagon Flange Head Thread Forming Screw	£1.97 £1.64
25	EG3580076001 Available to backorder	Rubber Sleeve	£0.83 £0.69
26	EG3131055001 Available to backorder	Wire Holder	£0.83 £0.69
27	EG3131528001 Available to backorder	Hook	£1.22 £1.02
28	EG3131403001 Available to backorder	Base Foot	£47.48 £39.57
29	EG3707366001 Available to backorder	Right Supporting Plate	£13.55 £11.29
30	EG2827272001 Available to backorder	Right Handle Set	£41.26 £34.38
31	EG5640222001 Available to backorder	Hexagon Flange Bolt	£1.68 £1.40
32	EG3707328001 Available to backorder	Depth Stop Plate	£12.46 £10.38
33	EG5640358001 Available to backorder	Small Round Head Low Square Neck Bolt	£0.83 £0.69
34	EG5630244004 Available to backorder	Nut	£0.31 £0.26
35	EG2827261001 Available to backorder	Left Handle Set	£41.26 £34.38
36	EG2827147001 Available to backorder	Damper	£78.72 £65.60
37	EG5640350001 Available to backorder	Hexagon Head Bolt	£0.85 £0.71
38	EG2827464002 Available to backorder	Footrest Pedal Assembly	£161.76 £134.80
39	EG2824320001 Available to backorder	Front Wheel Bracket Assembly	£66.96 £55.80
40	EG5630070003 Available to backorder	Nut	£1.72 £1.43
41	EG5640464001 Available to backorder	Hexagon Head Bolt	£7.22 £6.02
42	EG2824251002 Available to backorder	Front Wheel Set	£92.88 £77.40
43	EG3130956001 Available to backorder	Bearing Cover	£0.83 £0.69
44	EG2827083001 Available to backorder	Connecting Rod Assembly	£15.74 £13.12
45	EG5670563001 Available to backorder	R Pin	£0.62 £0.52
46	EG5670553001 Available to backorder	Pin Shaft	£2.09 £1.74
47	EG5650016007 Available to backorder	Plain Washer	£0.83 £0.69
48	EG5640353001 Available to backorder	Flange Bolt-Large Series	£1.72 £1.43
49	EG3707449001 Available to backorder	Hitch	£8.06 £6.72
50	EG2827209001 Available to backorder	Shock Absorber	£377.64 £314.70
51	EG5620021004 Available to backorder	Hexagon Socket Screw	£0.52 £0.43
52	EG5620453003 Available to backorder	Tapping Screw	£0.83 £0.69
53	EG2828736002 Available to backorder	Rear Wheel Set	£198.96 £165.80
54	EG5630372001 Available to backorder	Conical Nut	£1.84 £1.53
55	EG3131306001 Available to backorder	Rear Hubcap	£6.83 £5.69
56	EG5970136002 Available to backorder	Grease	£34.46 £28.72
57	EG2827673001 Available to backorder	Key Assembly	£12.11 £10.09
58	EG2823689001 Available to backorder	Quick Connect Coupling	£3.66 £3.05
59	EG5680145001 Available to backorder	Hexagon Socket Screw Key	£4.28 £3.57
60	EG5680137001 Available to backorder	Combination Wrench	£8.06 £6.72
201	EG2827138002 Available to backorder	Battery Box Assembly	£568.80 £474.00
202	EG2829387001 Available to backorder	Control Box Assembly	£853.20 £711.00
203	EG2827266001 Available to backorder	Drive Train Assembly	£1,179.60 £983.00
204	EG2829451001 Available to backorder	Control Assembly	£242.04 £201.70
205	EG2827044001 Available to backorder	Front Frame Assembly	£196.68 £163.90
206	EG2827245002 Available to backorder	Parking Assembly	£98.40 £82.00
207	EG2824284001 Available to backorder	Deck Unit	£1,279.20 £1,066.00
208	EG2827406003 Available to backorder	Left Cover Assembly	£318.36 £265.30
209	EG2827270002 Available to backorder	Rear Guard Assembly	£157.32 £131.10
210	EG2827431003 Available to backorder	Right Cover Assembly	£568.80 £474.00
211	EG2827269001 Available to backorder	Damping Seat Assembly	£377.64 £314.70
212	EG2521079001 Available to backorder	Accessory Box	£61.03 £50.86
