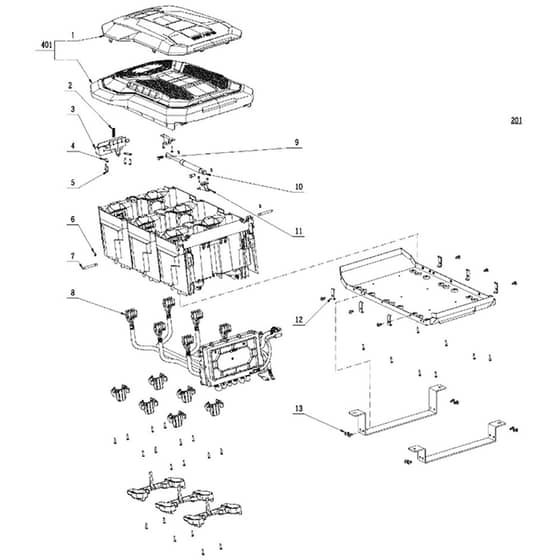

EGO ZT5200E-L - Ride-on Mower (Feb 2023) Battery Box Assembly Diagram

EGO ZT5200E-L - Ride-on Mower (Feb 2023) Battery Box Assembly Diagram
EGO ZT5200E-L - Ride-on Mower (Feb 2023) Battery Box Assembly Diagram

Description

EGO ZT5200E-L Ride-on Mower (Feb 2023) Zero Turn Battery Box Assembly Parts Diagram

Ref. Img. Part No. Details
  1 Rear Transparent Guard
Rear Transparent Guard
EG3130889001
Available to backorder
Rear Transparent Guard
£42.72 £35.60

  2 Compression Spring
Compression Spring
EG3660705002
Available to backorder
Compression Spring
£0.80 £0.67

  3 Latch
Latch
EG3130964001
Available to backorder
Latch
£3.20 £2.67

  4 Clamp
Clamp
EG3706580001
Available to backorder
Clamp
£0.80 £0.67

  5 Hexagon Socket Screw
Hexagon Socket Screw
EG5620157006
Available to backorder
Hexagon Socket Screw
£0.47 £0.39

  6 E Ring
E Ring
EG5660305001
Available to backorder
E Ring
£0.80 £0.67

  7 Spindle
Spindle
EG3553477001
Available to backorder
Spindle
£1.72 £1.43

  8 Bms Electric Assembly
Bms Electric Assembly
EG2830882001
Available to backorder
Bms Electric Assembly
£520.62 £433.85

  9 Pin Shaft
Pin Shaft
EG5670559001
Available to backorder
Pin Shaft
£0.85 £0.71

  10 Gas Spring
Gas Spring
EG3660805001
Available to backorder
Gas Spring
£33.43 £27.86

  11 Support Base
Support Base
EG3707349001
Available to backorder
Support Base
£1.84 £1.53

  12 Hook
Hook
EG3707351001
Available to backorder
Hook
£0.85 £0.71

  13 Hexalobular Socket Thread Forming Screw
Hexalobular Socket Thread Forming Screw
EG5610388001
Available to backorder
Hexalobular Socket Thread Forming Screw
£0.22 £0.18

  401 Battery Box Cover Assembly
Battery Box Cover Assembly
EG2827772001
Available to backorder
Battery Box Cover Assembly
£98.08 £81.73


Description

EGO ZT5200E-L Ride-on Mower (Feb 2023) Zero Turn Battery Box Assembly Parts Diagram
