EGO ZT4200E-S - Ride-on Mower (Feb 2023) Main Cont. Diagram

Description

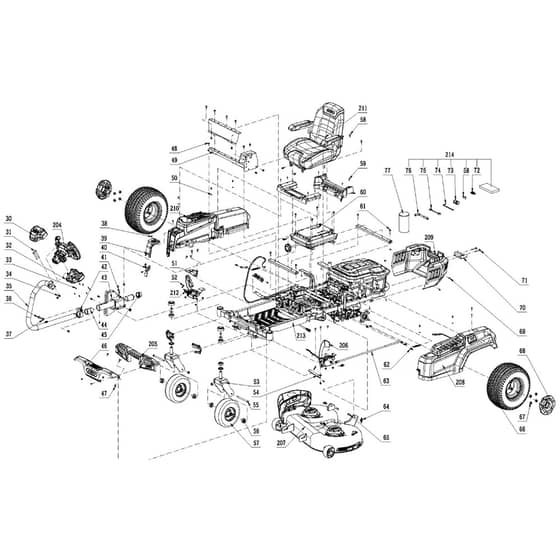

EGO ZT4200E-S Ride-on Mower (Feb 2023) Zero Turn Main Cont. Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG5650909001 Available to backorder	Plain Washer	£0.80 £0.67
2	EG5630070003 Available to backorder	Nut	£1.72 £1.43
3	EG2827074001 Available to backorder	Right Lift Arm Assembly	£21.24 £17.70
4	EG2827075001 Available to backorder	Left Lift Arm Assembly	£21.24 £17.70
5	EG5650740001 Available to backorder	Plain Washer	£0.42 £0.35
6	EG5690532001 Available to backorder	Seal Ring	£0.80 £0.67
7	EG2245662003 Available to backorder	Nameplate	£4.48 £3.73
9	EG3553471001 Available to backorder	Connecting Rod Spindle	£5.14 £4.28
10	EG5630022004 Available to backorder	Hexagon Nut	£0.80 £0.67
11	EG3707327001 Available to backorder	Hanger Rod	£21.12 £17.60
12	EG3131157001 Available to backorder	Wire Holder	£2.82 £2.35
13	EG5630267001 Available to backorder	Nut	£0.80 £0.67
15	EG3707365001 Available to backorder	Left Supporting Plate	£13.10 £10.92
16	EG2827182001 Available to backorder	Support Assembly	£37.72 £31.43
17	EG5640363001 Available to backorder	Flange Bolt-Large Series	£1.66 £1.38
20	EG5610388001 Available to backorder	Hexalobular Socket Thread Forming Screw	£0.22 £0.18
21	EG5640373001 Available to backorder	Hex Serrated Flange Screw	£0.71 £0.59
22	EG5620618001 Available to backorder	Screw With Washer	£0.80 £0.67
23	EG3580076001 Available to backorder	Rubber Sleeve	£0.80 £0.67
24	EG3131055001 Available to backorder	Wire Holder	£0.80 £0.67
25	EG3707366001 Available to backorder	Right Supporting Plate	£13.10 £10.92
26	EG3131528001 Available to backorder	Hook	£1.22 £1.02
27	EG3131403001 Available to backorder	Base Foot	£45.90 £38.25
29	EG4970355001 Available to backorder	Fuse	£19.16 £15.97
30	EG2829422001 Available to backorder	Decorative Cover Assembly	£20.48 £17.07
31	EG5610923001 Available to backorder	Hexagon Head Bolt	£4.80 £4.00
32	EG3133728001 Available to backorder	Lower Housing	£16.99 £14.16
33	EG5610223002 Available to backorder	Hexagon Lobuar Screw	£0.34 £0.28
34	EG5630329001 Available to backorder	Lock Nut	£0.53 £0.44
35	EG2829130001 Available to backorder	Inner Tube Welded Assembly	£94.42 £78.68
36	EG5640212002 Available to backorder	Bolt	£2.59 £2.16
37	EG5650259001 Available to backorder	Washer	£0.34 £0.28
38	EG5620377003 Available to backorder	Hexagon Socket Screw	£0.13 £0.11
39	EG3133548001 Available to backorder	Top Cover	£8.93 £7.44
40	EG3403426001 Available to backorder	Lower Housing	£6.36 £5.30
41	EG5620339002 Available to backorder	Hexagon Socket Screw	£0.71 £0.59
42	EG3423390001 Available to backorder	Hoop	£10.42 £8.68
43	EG2829131001 Available to backorder	Outer Tube Welded Assembly	£98.82 £82.35
44	EG3580440001 Available to backorder	Pressing Sleeve	£20.28 £16.90
45	EG3133549001 Available to backorder	Lock Sleeve	£1.91 £1.59
46	EG2829470001 Available to backorder	Footrest Pedal Assembly	£101.84 £84.87
47	EG5630371001 Available to backorder	Prevailing Torque Type Hexagon Lock Nut With Flange	£1.62 £1.35
48	EG5640360001 Available to backorder	Hexagon Flange Head Thread Forming Screw	£1.97 £1.64
49	EG2829100001 Available to backorder	Support Assembly	£56.33 £46.94
50	EG5650016007 Available to backorder	Plain Washer	£0.80 £0.67
51	EG3708673001 Available to backorder	Decorative Cover	£11.48 £9.57
52	EG5640358001 Available to backorder	Small Round Head Low Square Neck Bolt	£0.80 £0.67
53	EG2827052001 Available to backorder	Front Wheel Bracket Assembly	£74.00 £61.67
54	EG3708360001 Available to backorder	Bracket	£6.02 £5.02
55	EG5640356001 Available to backorder	Hexagon Head Bolt	£7.32 £6.10
56	EG3130956001 Available to backorder	Bearing Cover	£0.80 £0.67
57	EG2827184001 Available to backorder	Front Wheel Set	£82.36 £68.63
58	EG5620021004 Available to backorder	Hexagon Socket Screw	£0.53 £0.44
59	EG5620453003 Available to backorder	Tapping Screw	£0.80 £0.67
60	EG2827209001 Available to backorder	Shock Absorber	£393.38 £327.82
61	EG5640361001 Available to backorder	Hexagon Flange Head Thread Forming Screw	£1.97 £1.64
62	EG5670563001 Available to backorder	R Pin	£0.62 £0.52
63	EG2827083001 Available to backorder	Connecting Rod Assembly	£15.74 £13.12
64	EG5670561001 Available to backorder	Split Pin	£0.80 £0.67
65	EG5670553001 Available to backorder	Pin Shaft	£2.09 £1.74
66	EG2828736001 Available to backorder	Rear Wheel Set	£171.56 £142.97
67	EG5630372001 Available to backorder	Conical Nut	£1.84 £1.53
214	EG2829672001 Available to backorder	Wrench Tool Set	£50.34 £41.95
