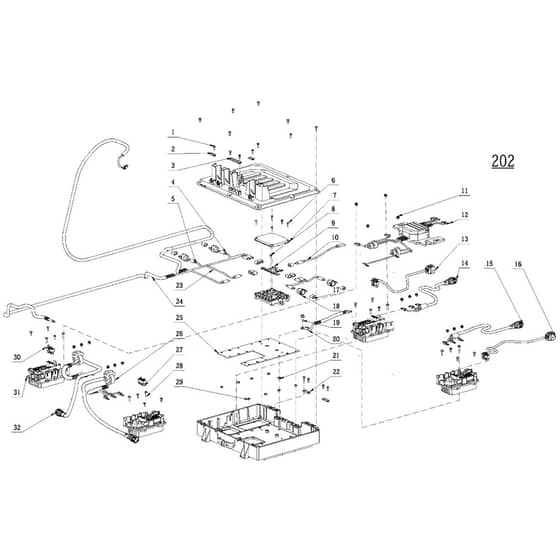

EGO ZT4200E-S Ride-on Mower (Feb 2023) Zero Turn Control Electric Assembly Parts Diagram

Ref. Img. Part No. Details
  1 Hexagon Socket Screw
Hexagon Socket Screw
EG5620377003
Available to backorder
Hexagon Socket Screw
£0.13 £0.11

  2 Cord Anchorage
Cord Anchorage
EG3700367001
Available to backorder
Cord Anchorage
£0.48 £0.40

  3 Cord Anchorage
Cord Anchorage
EG3708930001
Available to backorder
Cord Anchorage
£0.53 £0.44

  4 Type-C Male-Male Wire
Type-C Male-Male Wire
EG4860792004
Available to backorder
Type-C Male-Male Wire
£21.00 £17.50

  5 Type-C Male-Male Wire
Type-C Male-Male Wire
EG4860792003
Available to backorder
Type-C Male-Male Wire
£21.24 £17.70

  6 Tapping Screw
Tapping Screw
EG5610305002
Available to backorder
Tapping Screw
£0.22 £0.18

  7 Pcb Box
Pcb Box
EG3900369002
Available to backorder
Pcb Box
£5.14 £4.28

  8 Tapping Screw
Tapping Screw
EG5610021001
Available to backorder
Tapping Screw
£0.22 £0.18

  9 Connecting Pcba
Connecting Pcba
EG4891968001
Available to backorder
Connecting Pcba
£41.00 £34.17

  10 Type-C Male-Female Wire
Type-C Male-Female Wire
EG4860791003
Available to backorder
Type-C Male-Female Wire
£20.30 £16.92

  11 Screw With Washer
Screw With Washer
EG5620618001
Available to backorder
Screw With Washer
£0.80 £0.67

  12 Magnet Ring Assembly
Magnet Ring Assembly
EG2829641001
Available to backorder
Magnet Ring Assembly
£67.22 £56.02

  13 Wire Harness
Wire Harness
EG4860788001
Available to backorder
Wire Harness
£26.90 £22.42

  14 Motor Wire Harness
Motor Wire Harness
EG4861056001
Available to backorder
Motor Wire Harness
£40.69 £33.91

  15 Motor Wire Harness
Motor Wire Harness
EG4861056002
Available to backorder
Motor Wire Harness
£48.83 £40.69

  16 Wire Harness
Wire Harness
EG4860789001
Available to backorder
Wire Harness
£27.14 £22.62

  17 Rubber Sleeve
Rubber Sleeve
EG3580076001
Available to backorder
Rubber Sleeve
£0.80 £0.67

  18 Wire Holder
Wire Holder
EG3131055001
Available to backorder
Wire Holder
£0.80 £0.67

  19 Hex Serrated Flange Screw
Hex Serrated Flange Screw
EG5640373001
Available to backorder
Hex Serrated Flange Screw
£0.71 £0.59

  20 Host Power Wire Harness
Host Power Wire Harness
EG4860768002
Available to backorder
Host Power Wire Harness
£18.23 £15.19

  21 Prevailing Torque Hexagon Nut
Prevailing Torque Hexagon Nut
EG5630015001
Available to backorder
Prevailing Torque Hexagon Nut
£0.48 £0.40

  22 Cord Anchorage
Cord Anchorage
EG3707407001
Available to backorder
Cord Anchorage
£0.80 £0.67

  23 Communication Wire Harness
Communication Wire Harness
EG4861094001
Available to backorder
Communication Wire Harness
£47.26 £39.38

  24 Type-C Male-Male Wire
Type-C Male-Male Wire
EG4860797001
Available to backorder
Type-C Male-Male Wire
£23.60 £19.67

  25 Base Plate
Base Plate
EG3707400001
Available to backorder
Base Plate
£14.52 £12.10

  26 Motor Wire Harness
Motor Wire Harness
EG4861140003
Available to backorder
Motor Wire Harness
£84.90 £70.75

  27 Motor Wiring Harness
Motor Wiring Harness
EG4860785001
Available to backorder
Motor Wiring Harness
£5.78 £4.82

  28 Screw
Screw
EG5620051009
Available to backorder
Screw
£0.80 £0.67

  29 Prevailing Torque Hexagon Nut
Prevailing Torque Hexagon Nut
EG5630006003
Available to backorder
Prevailing Torque Hexagon Nut
£0.80 £0.67

  30 Motor Wiring Harness
Motor Wiring Harness
EG4860786001
Available to backorder
Motor Wiring Harness
£5.78 £4.82

  31 Control Electric Assembly
Control Electric Assembly
EG2829376001
Available to backorder
Control Electric Assembly
£179.98 £149.98

  32 Motor Wire Harness
Motor Wire Harness
EG4861140001
Available to backorder
Motor Wire Harness
£61.76 £51.47
