EGO ZT4200E-L - Ride-on Mower (Feb 2023) Right Cover Assembly Diagram

Name: EGO ZT4200E-L - Ride-on Mower (Feb 2023) Right Cover Assembly Diagram
SKU: zt4200e_l_ride_on_mower_feb_2023_right_cover_assembly-group
Price: 0.34 GBP
Availability: InStock

Part No. zt4200e_l_ride_on_mower_feb_2023_right_cover_assembly-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EGO ZT4200E-L - Ride-on Mower (Feb 2023) Right Cover Assembly Diagram

Description

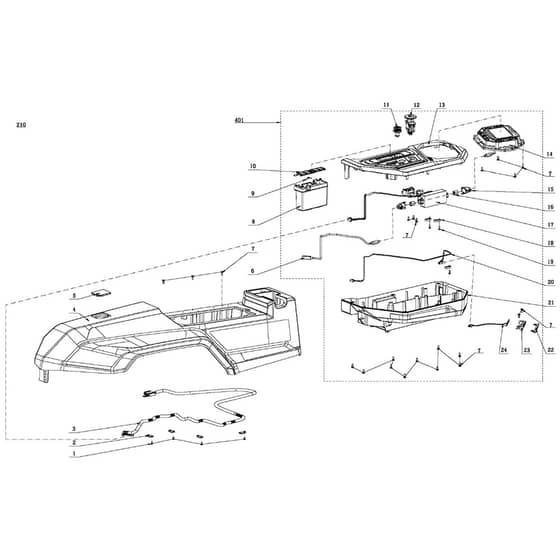

EGO ZT4200E-L Ride-on Mower (Feb 2023) Zero Turn Right Cover Assembly Parts Diagram

	Part No.	Details
1	EG5610021001 Available to backorder	Tapping Screw	£0.48 £0.40
2	EG3700367001 Available to backorder	Cord Anchorage	£0.48 £0.40
3	EG4860777001 Available to backorder	Wiring Harness	£23.57 £19.64
4	EG3130904001 Available to backorder	Right Cover	£232.20 £193.50
5	EG3131105001 Available to backorder	Right Cover Plate	£0.41 £0.34
6	EG4860791002 Available to backorder	Type-C Male-Female Wire	£24.41 £20.34
7	EG5620377003 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
8	EG3131078001 Available to backorder	Phone Box	£3.66 £3.05
9	EG3660812001 Available to backorder	Torsion Spring	£0.83 £0.69
10	EG3322835001 Available to backorder	Phone Box Cover	£1.72 £1.43
11	EG4870764001 Available to backorder	Push Switch	£28.49 £23.74
12	EG4870762001 Available to backorder	Push Switch	£61.03 £50.86
13	EG3130995001 Available to backorder	Control Panel	£11.71 £9.76
14	EG2827438001 Available to backorder	Lcd Assembly	£251.52 £209.60
15	EG3131055001 Available to backorder	Wire Holder	£0.83 £0.69
16	EG3580076001 Available to backorder	Rubber Sleeve	£0.83 £0.69
17	EG2830779001 Available to backorder	Switch Electric Assembly	£84.72 £70.60
18	EG3122798001 Available to backorder	Cord Anchorage	£0.48 £0.40
19	EG5610305002 Available to backorder	Tapping Screw	£0.48 £0.40
20	EG4860782001 Available to backorder	Wiring Harness	£4.51 £3.76
21	EG3130996001 Available to backorder	Control Box Base	£20.26 £16.88
22	EG3131076001 Available to backorder	Led Cover	£0.83 £0.69
23	EG3131077001 Available to backorder	Led Holder	£1.22 £1.02
24	EG2830790001 Available to backorder	Led Electric Assembly	£10.09 £8.41
401	EG2827437001 Available to backorder	Control Box Assembly	£379.80 £316.50
