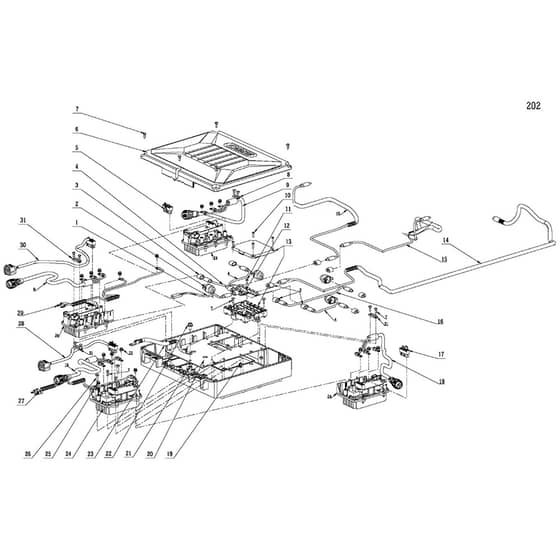

EGO ZT4200E-L Ride-on Mower (Feb 2023) Zero Turn Control Electric Assembly Parts Diagram

Ref. Img. Part No. Details
  1 Type-C Male-Female Wire
Type-C Male-Female Wire
EG4860791001
Available to backorder
Type-C Male-Female Wire
£25.74 £21.45

  2 Wire Holder
Wire Holder
EG3131055001
Available to backorder
Wire Holder
£0.80 £0.67

  3 Rubber Sleeve
Rubber Sleeve
EG3580076001
Available to backorder
Rubber Sleeve
£0.80 £0.67

  4 Type-C Male-Male Wire
Type-C Male-Male Wire
EG4860792004
Available to backorder
Type-C Male-Male Wire
£21.00 £17.50

  5 Motor Wiring Harness
Motor Wiring Harness
EG4860785001
Available to backorder
Motor Wiring Harness
£5.78 £4.82

  6 Close Cover
Close Cover
EG3131036001
Available to backorder
Close Cover
£23.48 £19.57

  7 Hexagon Socket Screw
Hexagon Socket Screw
EG5620377003
Available to backorder
Hexagon Socket Screw
£0.13 £0.11

  8 Cord Anchorage
Cord Anchorage
EG3700367001
Available to backorder
Cord Anchorage
£0.48 £0.40

  9 Motor Wire Harness
Motor Wire Harness
EG4861056001
Available to backorder
Motor Wire Harness
£40.69 £33.91

  10 Tapping Screw
Tapping Screw
EG5610305002
Available to backorder
Tapping Screw
£0.22 £0.18

  11 Tapping Screw
Tapping Screw
EG5610021001
Available to backorder
Tapping Screw
£0.22 £0.18

  12 Connecting Pcba
Connecting Pcba
EG4891968001
Available to backorder
Connecting Pcba
£41.00 £34.17

  13 Pcb Box
Pcb Box
EG3900369002
Available to backorder
Pcb Box
£5.14 £4.28

  14 Type-C Male-Male Wire
Type-C Male-Male Wire
EG4860797001
Available to backorder
Type-C Male-Male Wire
£23.60 £19.67

  15 Type-C Male-Male Wire
Type-C Male-Male Wire
EG4860797002
Available to backorder
Type-C Male-Male Wire
£20.30 £16.92

  16 Type-C Male-Male Wire
Type-C Male-Male Wire
EG4860792003
Available to backorder
Type-C Male-Male Wire
£21.24 £17.70

  17 Motor Wiring Harness
Motor Wiring Harness
EG4860786001
Available to backorder
Motor Wiring Harness
£5.78 £4.82

  18 Motor Wire Harness
Motor Wire Harness
EG4861056002
Available to backorder
Motor Wire Harness
£48.83 £40.69

  19 Prevailing Torque Hexagon Nut
Prevailing Torque Hexagon Nut
EG5630006003
Available to backorder
Prevailing Torque Hexagon Nut
£0.80 £0.67

  20 Base Plate
Base Plate
EG3707400001
Available to backorder
Base Plate
£14.52 £12.10

  21 Prevailing Torque Hexagon Nut
Prevailing Torque Hexagon Nut
EG5630015001
Available to backorder
Prevailing Torque Hexagon Nut
£0.48 £0.40

  22 Hex Serrated Flange Screw
Hex Serrated Flange Screw
EG5640373001
Available to backorder
Hex Serrated Flange Screw
£0.71 £0.59

  23 Host Power Wire Harness
Host Power Wire Harness
EG4860768001
Available to backorder
Host Power Wire Harness
£14.40 £12.00

  24 Control Electric Assembly
Control Electric Assembly
EG2831221001
Available to backorder
Control Electric Assembly
£196.68 £163.90

  25 Screw With Washer
Screw With Washer
EG5620618001
Available to backorder
Screw With Washer
£0.80 £0.67

  26 Screw
Screw
EG5620051009
Available to backorder
Screw
£0.80 £0.67

  27 Host Power Wire Harness
Host Power Wire Harness
EG4860793001
Available to backorder
Host Power Wire Harness
£12.50 £10.42

  28 Wire Harness
Wire Harness
EG4860788001
Available to backorder
Wire Harness
£26.90 £22.42

  29 Host Power Wire Harness
Host Power Wire Harness
EG4860793002
Available to backorder
Host Power Wire Harness
£16.49 £13.74

  30 Wire Harness
Wire Harness
EG4860789001
Available to backorder
Wire Harness
£27.14 £22.62

  31 Cord Anchorage
Cord Anchorage
EG3707407001
Available to backorder
Cord Anchorage
£0.80 £0.67
