EGO Z6 - Ride-on Mower (ZT4200E-L) (Jan 2022) Right Cover Assembly Diagram

Name: EGO Z6 - Ride-on Mower (ZT4200E-L) (Jan 2022) Right Cover Assembly Diagram
SKU: z6_ride_on_mower_zt4200e_l_jan_2022_right_cover_assembly-group
Price: 0.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EGO Z6 - Ride-on Mower (ZT4200E-L) (Jan 2022) Right Cover Assembly Diagram

Description

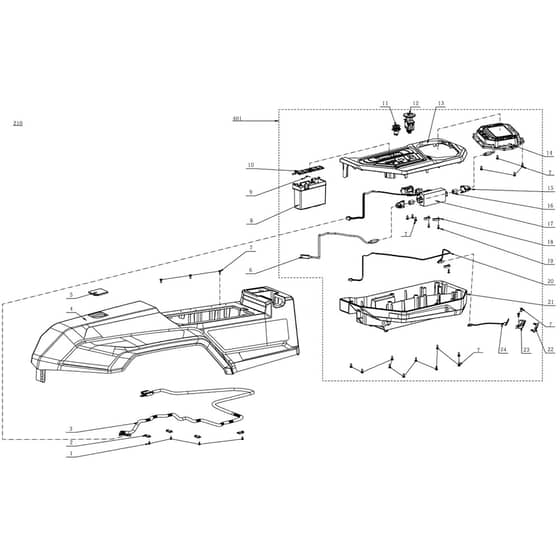

EGO Z6 Ride-on Mower (ZT4200E-L) (Jan 2022) Zero Turn Right Cover Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG5610021001 Available to backorder	Tapping Screw	£0.22 £0.18
2	EG3700367001 Available to backorder	Cord Anchorage	£0.48 £0.40
3	EG4860777001 Available to backorder	Wiring Harness	£23.57 £19.64
4	EG3130904001 Available to backorder	Right Cover	£217.92 £181.60
5	EG3131105001 Available to backorder	Right Cover Plate	£0.48 £0.40
6	EG4860791002 Available to backorder	Type-C Male-Female Wire	£23.60 £19.67
7	EG5620377003 Available to backorder	Hexagon Socket Screw	£0.13 £0.11
8	EG3131078001 Available to backorder	Phone Box	£3.54 £2.95
9	EG3660812001 Available to backorder	Torsion Spring	£0.80 £0.67
10	EG3322835001 Available to backorder	Phone Box Cover	£1.72 £1.43
11	EG4870764001 Available to backorder	Push Switch	£27.54 £22.95
12	EG4870762001 Available to backorder	Push Switch	£59.00 £49.17
13	EG3130995001 Available to backorder	Control Panel	£11.71 £9.76
14	EG2827438001 Available to backorder	Lcd Assembly	£255.68 £213.07
15	EG3131055001 Available to backorder	Wire Holder	£0.80 £0.67
16	EG3580076001 Available to backorder	Rubber Sleeve	£0.80 £0.67
17	EG2830779001 Available to backorder	Switch Electric Assembly	£84.72 £70.60
18	EG3122798001 Available to backorder	Cord Anchorage	£0.48 £0.40
19	EG5610305002 Available to backorder	Tapping Screw	£0.22 £0.18
20	EG4860782001 Available to backorder	Wiring Harness	£4.51 £3.76
21	EG3130996001 Available to backorder	Control Box Base	£19.58 £16.32
22	EG3131076001 Available to backorder	Led Cover	£0.80 £0.67
23	EG3131077001 Available to backorder	Led Holder	£1.22 £1.02
24	EG2830790001 Available to backorder	Led Electric Assembly	£10.09 £8.41
401	EG2827437001 Available to backorder	Control Box Assembly	£339.12 £282.60
