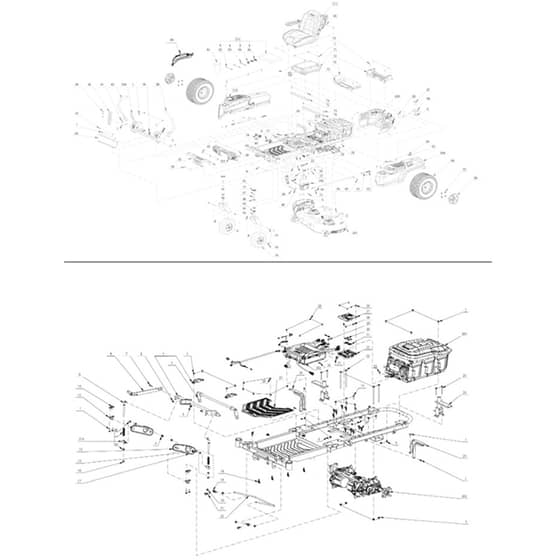

EGO Z6 Ride-on Mower (ZT4200E-L) (Jan 2022) Zero Turn Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG5640360001 Available to backorder	Hexagon Flange Head Thread Forming Screw	£1.97 £1.64
3	EG2827067001 Available to backorder	Rocker Assembly	£31.62 £26.35
4	EG5630267001 Available to backorder	Nut	£0.80 £0.67
5	EG2824132001 Available to backorder	Lift Shaft Assembly	£64.78 £53.98
6	EG5630371001 Available to backorder	Prevailing Torque Type Hexagon Lock Nut With Flange	£1.62 £1.35
7	EG5640354001 Available to backorder	Flange Bolt-Large Series	£1.36 £1.13
8	EG3707330001 Available to backorder	Handle Lever	£20.40 £17.00
9	EG2827130001 Available to backorder	Connecting Rod Assembly	£11.46 £9.55
10	EG3521236001 Available to backorder	Support Base	£3.90 £3.25
11	EG3707307001 Available to backorder	Pressure Plate	£1.84 £1.53
13	EG2827074001 Available to backorder	Right Lift Arm Assembly	£21.24 £17.70
15	EG5650740001 Available to backorder	Plain Washer	£0.42 £0.35
16	EG5630070003 Available to backorder	Nut	£1.72 £1.43
17	EG2827075001 Available to backorder	Left Lift Arm Assembly	£21.24 £17.70
18	EG3131157001 Available to backorder	Wire Holder	£2.82 £2.35
19	EG3553471001 Available to backorder	Connecting Rod Spindle	£5.14 £4.28
20	EG5630022004 Available to backorder	Hexagon Nut	£0.80 £0.67
21	EG5670561001 Available to backorder	Split Pin	£0.80 £0.67
22	EG3707327001 Available to backorder	Hanger Rod	£21.12 £17.60
23	EG3707365001 Available to backorder	Left Supporting Plate	£13.10 £10.92
24	EG2827182001 Available to backorder	Support Assembly	£37.72 £31.43
25	EG5640363001 Available to backorder	Flange Bolt-Large Series	£1.66 £1.38
26	EG5620377003 Available to backorder	Hexagon Socket Screw	£0.13 £0.11
27	EG3131053001 Available to backorder	Fuse Pcb Box	£4.76 £3.97
28	EG5610388001 Available to backorder	Hexalobular Socket Thread Forming Screw	£0.22 £0.18
29	EG5640373001 Available to backorder	Hex Serrated Flange Screw	£0.71 £0.59
33	EG5640355001 Available to backorder	Flange Bolt-Large Series	£6.14 £5.12
30	EG5620618001 Available to backorder	Screw With Washer	£0.80 £0.67
34	EG3131055001 Available to backorder	Wire Holder	£0.80 £0.67
35	EG3580076001 Available to backorder	Rubber Sleeve	£0.80 £0.67
31	EG4970355001 Available to backorder	Fuse	£19.16 £15.97
36	EG3707366001 Available to backorder	Right Supporting Plate	£13.10 £10.92
32	EG2827461001 Available to backorder	Base Assembly	£45.08 £37.57
37	EG3131403001 Available to backorder	Base Foot	£45.90 £38.25
38	EG3131528001 Available to backorder	Hook	£1.22 £1.02
39	EG2827261001 Available to backorder	Left Handle Set	£41.26 £34.38
40	EG2827272001 Available to backorder	Right Handle Set	£41.26 £34.38
41	EG5640222001 Available to backorder	Hexagon Flange Bolt	£1.62 £1.35
42	EG3707328001 Available to backorder	Depth Stop Plate	£12.46 £10.38
43	EG5640358001 Available to backorder	Small Round Head Low Square Neck Bolt	£0.80 £0.67
44	EG3707339001 Available to backorder	Baffle	£16.88 £14.07
45	EG2827464002 Available to backorder	Footrest Pedal Assembly	£161.80 £134.83
46	EG3130955001 Available to backorder	Upper Dust Cover	£0.80 £0.67
47	EG5650739001 Available to backorder	Larger Washer	£0.80 £0.67
48	EG5700402001 Available to backorder	Deep Groove Ball Bearing	£8.17 £6.81
49	EG5690493001 Available to backorder	Seal Ring	£1.34 £1.12
50	EG2827052001 Available to backorder	Front Wheel Bracket Assembly	£74.00 £61.67
51	EG5640356001 Available to backorder	Hexagon Head Bolt	£7.32 £6.10
52	EG3130956001 Available to backorder	Bearing Cover	£0.80 £0.67
53	EG2827184002 Available to backorder	Front Wheel Set	£78.66 £65.55
54	EG3707333001 Available to backorder	Fixing Board	£0.80 £0.67
55	EG3660808001 Available to backorder	Compression Spring	£1.60 £1.33
56	EG2827147001 Available to backorder	Damper	£78.66 £65.55
57	EG5640350001 Available to backorder	Hexagon Head Bolt	£0.85 £0.71
58	EG2827083001 Available to backorder	Connecting Rod Assembly	£15.74 £13.12
59	EG5670553001 Available to backorder	Pin Shaft	£2.09 £1.74
60	EG5670563001 Available to backorder	R Pin	£0.62 £0.52
61	EG2827086001 Available to backorder	Rear Connecting Rod Set	£4.63 £3.86
62	EG3660793001 Available to backorder	Tension Spring	£3.30 £2.75
63	EG5650016007 Available to backorder	Plain Washer	£0.80 £0.67
64	EG2827185002 Available to backorder	Rear Wheel Set	£118.69 £98.91
65	EG5630372001 Available to backorder	Conical Nut	£1.84 £1.53
66	EG3131306001 Available to backorder	Rear Hubcap	£6.60 £5.50
67	EG5640353001 Available to backorder	Flange Bolt-Large Series	£1.72 £1.43
68	EG3707449001 Available to backorder	Hitch	£7.80 £6.50
69	EG5620021004 Available to backorder	Hexagon Socket Screw	£0.53 £0.44
70	EG5620453003 Available to backorder	Tapping Screw	£0.80 £0.67
71	EG2827209001 Available to backorder	Shock Absorber	£393.38 £327.82
72	EG3130957001 Available to backorder	Rear Cover	£13.46 £11.22
73	EG3130950001 Available to backorder	Lid Case	£11.71 £9.76
74	EG5640361001 Available to backorder	Hexagon Flange Head Thread Forming Screw	£1.97 £1.64
75	EG3707397001 Available to backorder	Base	£26.74 £22.28
76	EG3707398001 Available to backorder	Beam Bottom Support	£34.18 £28.48
77	EG5630244004 Available to backorder	Nut	£0.31 £0.26
78	EG3403156001 Available to backorder	Adjusting Handle	£5.54 £4.62
79	EG3131251001 Available to backorder	Handle Cover	£1.46 £1.22
80	EG5610010003 Available to backorder	Tapping Screw	£0.80 £0.67
81	EG5970136002 Available to backorder	Grease	£33.32 £27.77
82	EG5680137001 Available to backorder	Combination Wrench	£7.80 £6.50
83	EG5680145001 Available to backorder	Hexagon Socket Screw Key	£4.14 £3.45
84	EG2823689001 Available to backorder	Quick Connect Coupling	£3.54 £2.95
85	EG2827673001 Available to backorder	Key Assembly	£11.70 £9.75
86	EG5690532001 Available to backorder	Seal Ring	£0.80 £0.67
87	EG5650909001 Available to backorder	Plain Washer	£0.80 £0.67
88	EG3708360001 Available to backorder	Bracket	£6.02 £5.02
89	EGAMP4200 Available to backorder	Mulch Plug Assembly	£43.43 £36.19
201	EG2831223001 Available to backorder	Bms Electric Assembly	£786.72 £655.60
202	EG2831222001 Available to backorder	Control Electric Assembly	£661.20 £551.00
203	EG2827266001 Available to backorder	Drive Train Assembly	£1,376.76 £1,147.30
204	EG2827267002 Available to backorder	Control Assembly	£255.68 £213.07
205	EG2827044001 Available to backorder	Front Frame Assembly	£196.68 £163.90
206	EG2827245002 Available to backorder	Parking Assembly	£98.34 £81.95
207	EG2827360002 Available to backorder	Deck Unit	£661.20 £551.00
208	EG2827406002 Available to backorder	Left Cover Assembly	£472.04 £393.37
209	EG2827270002 Available to backorder	Rear Guard Assembly	£157.34 £131.12
210	EG2827431002 Available to backorder	Right Cover Assembly	£786.72 £655.60
211	EG2827269001 Available to backorder	Damping Seat Assembly	£393.38 £327.82
212	EG2521079001 Available to backorder	Accessory Box	£59.00 £49.17
214	EG2824471001 Available to backorder	Lift Shaft Assembly	£18.91 £15.76
