EGO Z6 - Ride-on Mower (ZT4200E-L) (Jan 2022) Deck Unit Diagram

Description

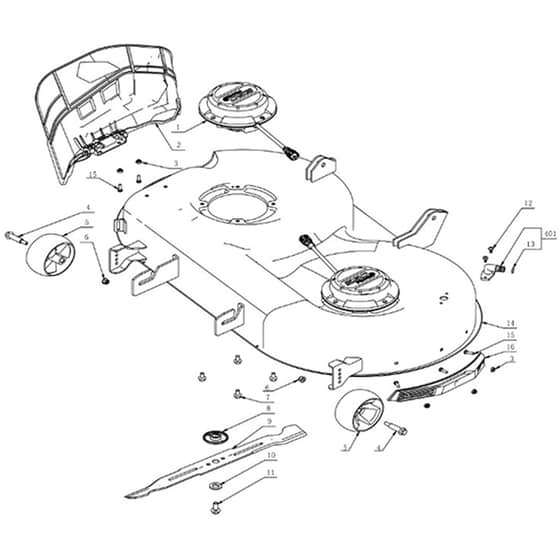

EGO Z6 Ride-on Mower (ZT4200E-L) (Jan 2022) Zero Turn Deck Unit Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG2730319001 Available to backorder	Dc Motor	£242.04 £201.70
2	EG2823670002 Available to backorder	Chute Deflector Assembly	£48.86 £40.72
3	EG5630244004 Available to backorder	Nut	£0.31 £0.26
4	EG5640352001 Available to backorder	Hexagon Flange Bolt	£3.66 £3.05
5	EG3131072001 Available to backorder	Roller Wheel	£11.46 £9.55
6	EG5630371001 Available to backorder	Prevailing Torque Type Hexagon Lock Nut With Flange	£1.62 £1.35
7	EG5640222001 Available to backorder	Hexagon Flange Bolt	£1.62 £1.35
8	EG3580113001 Available to backorder	Flange	£18.48 £15.40

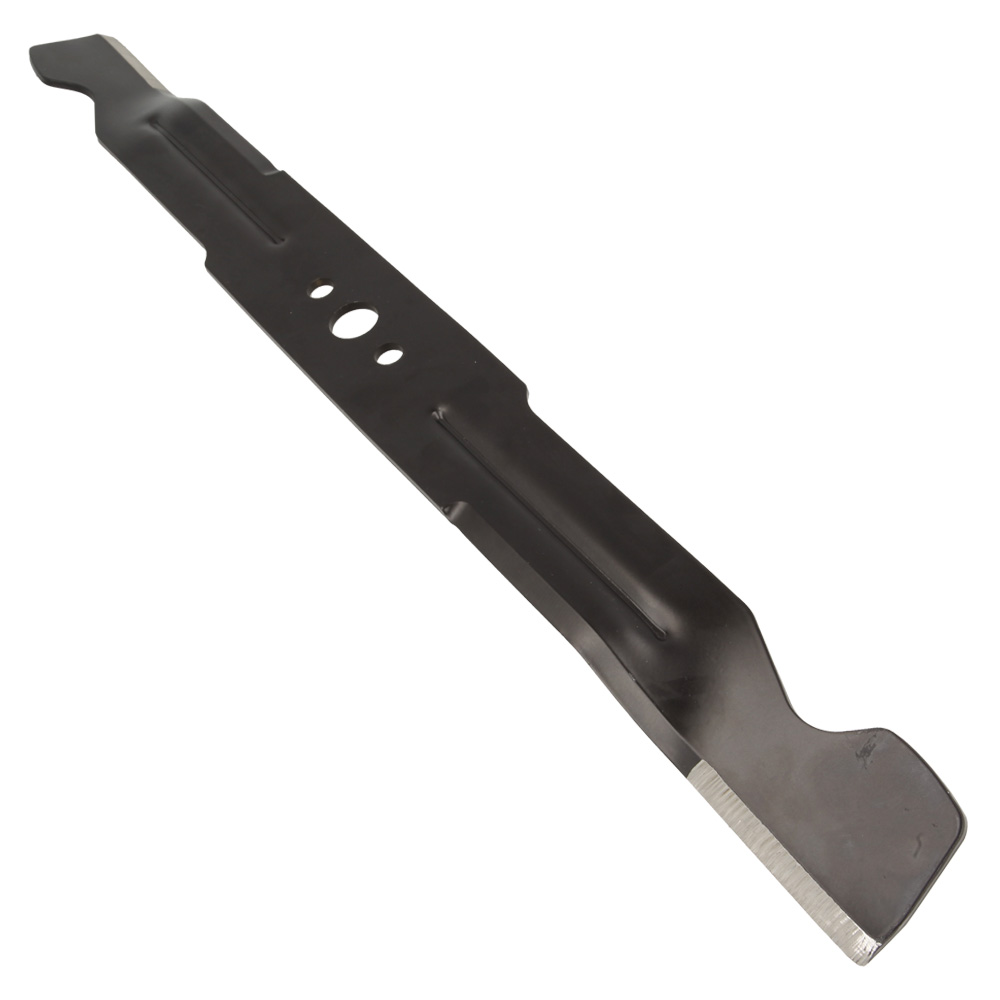

9	EGAB4200 Available to backorder	Standard Blade (Fitted As Standard)	£32.66 £27.22

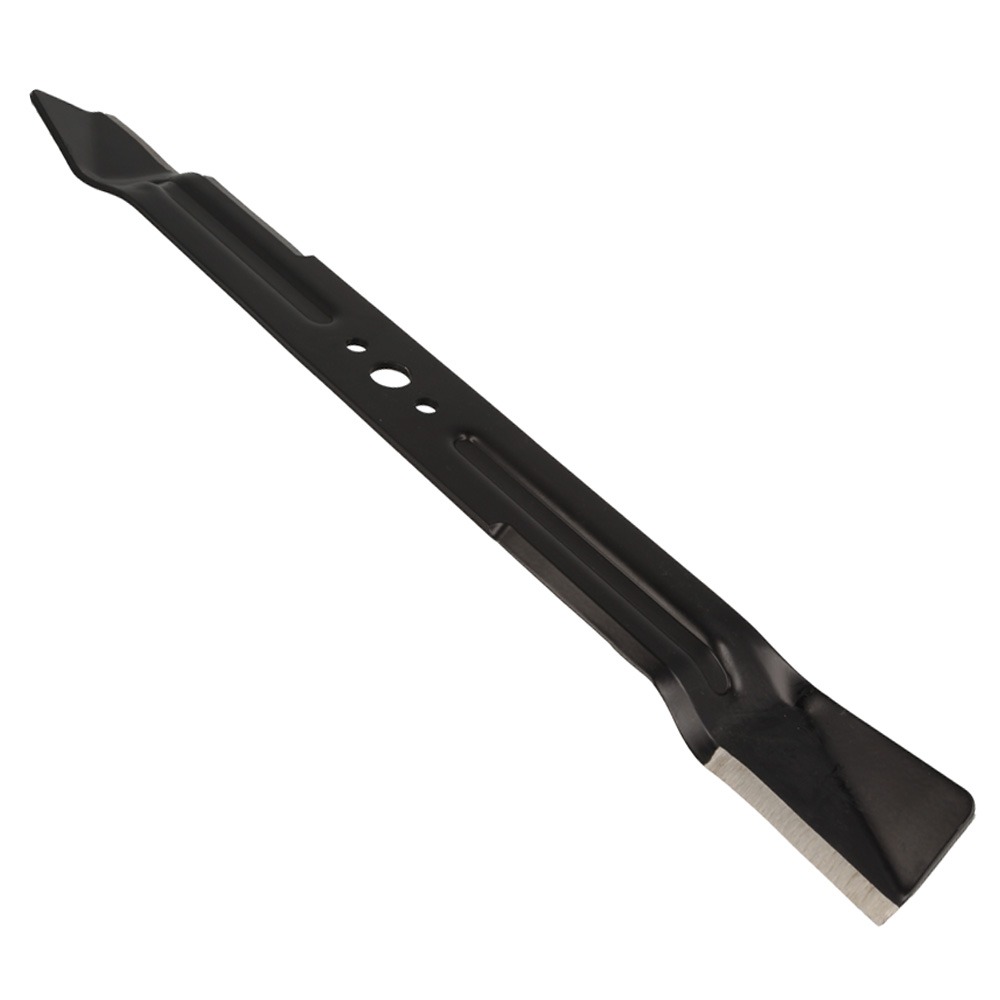

9	EGAB4201 Available to backorder	High-Lift Blade (Optional Accessory)	£34.98 £29.15
10	EG5650510001 Available to backorder	Washer	£1.46 £1.22
11	EG5640226001 Available to backorder	Flange Bolt	£1.70 £1.42
12	EG5610388001 Available to backorder	Hexalobular Socket Thread Forming Screw	£0.22 £0.18
13	EG5690141001 Available to backorder	O Ring	£0.80 £0.67
14	EG2827070001 Available to backorder	Deck Unit	£295.02 £245.85
15	EG5640357001 Available to backorder	Semicircular Head Square Neck Bolt	£0.80 £0.67
16	EG3131048001 Available to backorder	Baffle Strip	£5.54 £4.62
401	EG2823718002 Available to backorder	Outlet Nozzle Assembly	£14.88 £12.40
