EGO STX3800 String Trimmer (Jan 2022) Brushcutter Main Assy Parts Diagram

	Part No.	Details
1	EG3402942001 Available to backorder	Upper Housing	£13.69 £11.41
2	EG3660699001 Available to backorder	Compression Spring	£1.68 £1.40
3	EG5630292001 Available to backorder	Nut	£2.20 £1.83
4	EG5620479001 Available to backorder	Screw	£0.48 £0.40
5	EG5650278002 Available to backorder	Washer	£0.31 £0.26
6	EG2825610001 Available to backorder	Mounting Wire Holder Assy	£14.11 £11.76
7	EG2825608001 Available to backorder	Lower Housing Assy	£20.64 £17.20
8	EG3129386001 Available to backorder	Support Head	£5.60 £4.67
9	EGAL3060R Available to backorder	Line - Round - 3.0mm - 60 Metres	£27.74 £23.12
9	EGAL3012R In stock	Line - Round - 3.0mm - 12 Metres	£10.61 £8.84
10	EG5650015012 Available to backorder	Spring Washer	£0.48 £0.40
11	EG5620216006 Available to backorder	Hexagon Socket Screw	£0.68 £0.57
12	EG3705417001 Available to backorder	Fixing Board	£1.91 £1.59
13	EG5620213003 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
14	EG5650598001 Available to backorder	Washer	£0.48 £0.40
15	EG5620606001 Available to backorder	Hexagon Socket Screw	£0.83 £0.69
16	EG3706103001 Available to backorder	Shield	£3.00 £2.50
17	EG3552509001 Available to backorder	Inner Flange	£7.22 £6.02
18	EG2824142003 Available to backorder	Handle Lever Set	£7.27 £6.06
19	EG3127657001 Available to backorder	Front Handle	£13.36 £11.13
20	EG3127651001 Available to backorder	Clamping Block	£0.34 £0.28
21	EG3400010003 Available to backorder	Wing Nut	£1.39 £1.16
22	EG3706559001 Available to backorder	Fixed Ring	£0.91 £0.76
23	EG3129457001 Available to backorder	Holding Ring	£0.83 £0.69
24	EG3130093001 Available to backorder	Push Button	£0.83 £0.69
25	EG3900163001 Available to backorder	Handle Set	£37.78 £31.48
26	EG4870685001 Available to backorder	Switch Assembly	£76.32 £63.60
27	EG3660088003 Available to backorder	Knob-Reset Spring	£0.48 £0.40
28	EG2826345001 Available to backorder	Switch Lever Assy	£14.98 £12.48
29	EG5670028002 Available to backorder	Pin	£0.83 £0.69
30	EG5650604001 Available to backorder	Rubber Gasket	£0.83 £0.69
31	EG3422157001 Available to backorder	Right Housing	£61.80 £51.50
32	EG4860525002 Available to backorder	Internal Wire Assy	£89.04 £74.20
33	EG5620018005 Available to backorder	Hexagon Socket Screw	£0.77 £0.64
34	EG2825783001 Available to backorder	Base Assembly	£22.97 £19.14
35	EG3552896001 Available to backorder	Shaft Sleeve	£7.85 £6.54

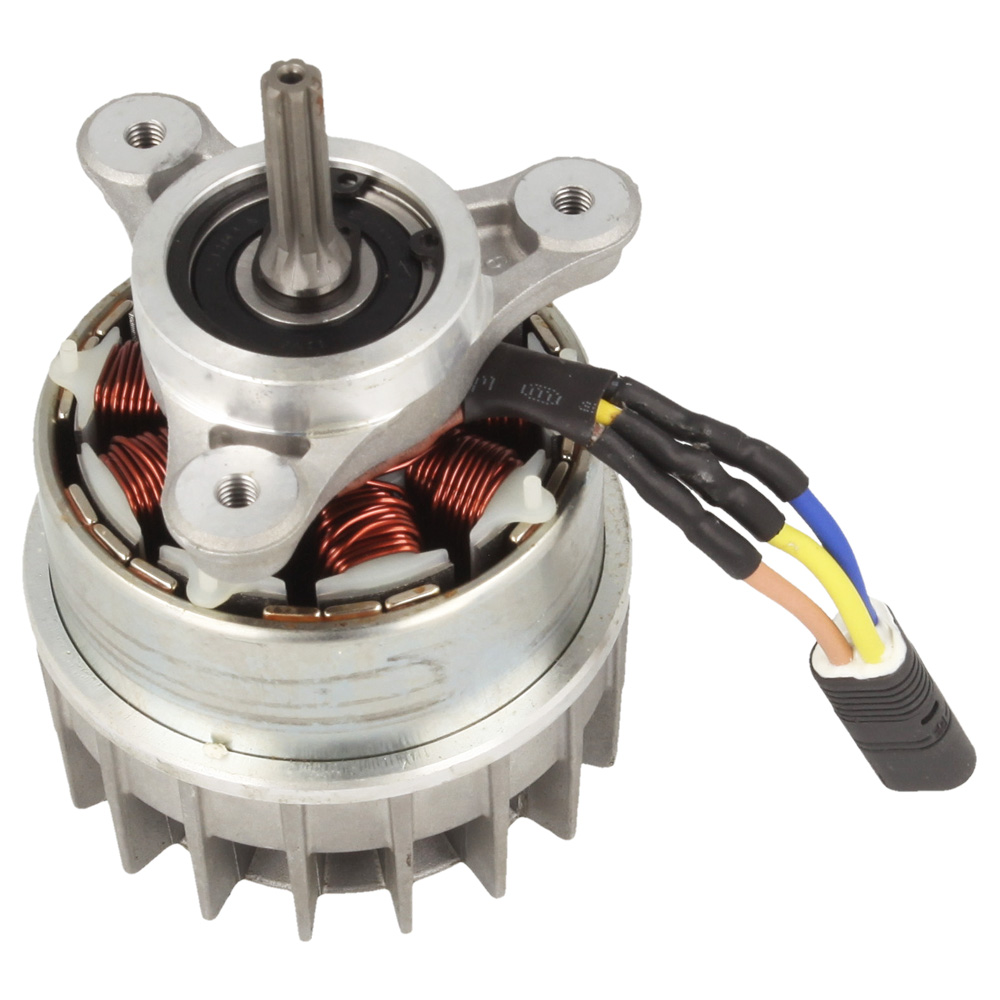

36	EG2730271001 Available to backorder	Dc Motor	£128.28 £106.90
37	EG3422158001 Available to backorder	Rear Cover	£12.49 £10.41
38	EG5620019004 Available to backorder	Hexagon Socket Screw	£0.34 £0.28
39	EG3704820001 Available to backorder	Sponge Pad	£0.83 £0.69
40	EG3129444001 Available to backorder	Plate	£0.83 £0.69
41	EG2830332002 Available to backorder	Electric Assembly	£154.80 £129.00
42	EG3422156001 Available to backorder	Left Housing	£58.63 £48.86
43	EG5610305001 Available to backorder	Tapping Screw	£0.48 £0.40
44	EG2826455001 Available to backorder	Tube Assembly	£173.76 £144.80
45	EG2825589001 Available to backorder	Shaft	£16.61 £13.84
46	EG3128598001 Available to backorder	Retaining Ring	£0.34 £0.28
47	EG2825605001 Available to backorder	Guard Assy	£36.58 £30.48
48	EG5620548001 Available to backorder	Screw With Washer	£0.54 £0.45
49	EG3706542001 Available to backorder	Blade	£3.35 £2.79
50	EG5680164001 Available to backorder	Inner Hexagon Spanner	£0.54 £0.45
51	EG5680217001 Available to backorder	Wrench	£4.79 £3.99
52	EG2825135002 Available to backorder	Handle Lever Set	£9.14 £7.62
53	EG3128672001 Available to backorder	Front Handle Cover	£2.72 £2.27
54	EG3421864001 Available to backorder	Outer Flange	£10.82 £9.02
202	EGAH3800 In stock	Cutting Head	£33.79 £28.16
201	EG2825611001 Available to backorder	Gear Case Assy	£66.48 £55.40
203	EG2824020003 Available to backorder	Handle Assy	£20.36 £16.97
204	EG2825603001 Available to backorder	Guard Assy	£58.85 £49.04
401	EG2825604001 Available to backorder	Lower Guard Assy	£28.82 £24.02
