EGO ST1530E - String Trimmer (Jan 2022) Main Assy Diagram

Description

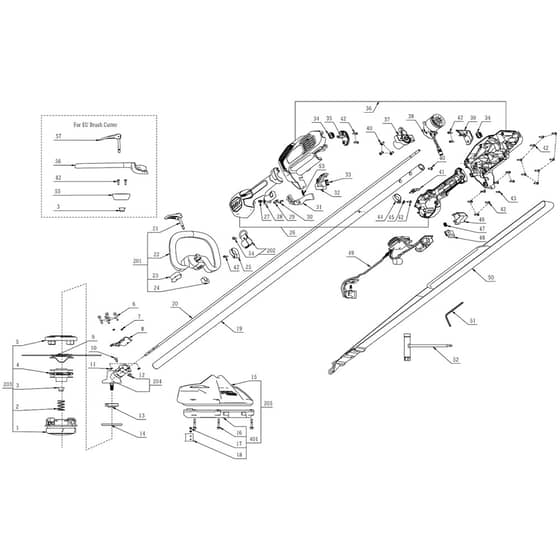

EGO ST1530E String Trimmer (Jan 2022) Brushcutter Main Assy Parts Diagram

	Part No.	Details
1	EG2826637001 Available to backorder	Lower Housing Assy	£35.09 £29.24
2	EG3660582001 In stock	Compression Spring	£1.46 £1.22
3	EG5630292001 Available to backorder	Nut	£2.20 £1.83
4	EG2826376002 Available to backorder	Spool Assembly	£14.42 £12.02
5	EG3130090001 Available to backorder	Upper Housing	£7.43 £6.19
6	EG5620216003 Available to backorder	Hexagon Socket Screw	£0.34 £0.28
7	EG5650015012 Available to backorder	Spring Washer	£0.48 £0.40
8	EG3705417001 Available to backorder	Fixing Board	£1.91 £1.59
10	EG5620213003 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
11	EG5650598001 Available to backorder	Washer	£0.48 £0.40
12	EG5620546001 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
13	EG3552509001 Available to backorder	Inner Flange	£7.22 £6.02
14	EG3706103001 Available to backorder	Shield	£3.00 £2.50
15	EG2824703001 Available to backorder	Guard Assy	£12.86 £10.72
16	EG5620548001 Available to backorder	Screw With Washer	£0.54 £0.45
17	EG5610294001 Available to backorder	Tapping Screw	£0.48 £0.40
18	EG3706106001 Available to backorder	Blade	£2.53 £2.11
19	EG2825710002 Available to backorder	Tube Assembly	£61.08 £50.90
20	EG3552666001 Available to backorder	Shaft	£13.50 £11.25
21	EG2824142003 Available to backorder	Handle Lever Set	£7.27 £6.06
22	EG3127657001 Available to backorder	Front Handle	£13.36 £11.13
23	EG3127651001 Available to backorder	Clamping Block	£0.34 £0.28
24	EG3400010003 Available to backorder	Wing Nut	£1.39 £1.16
25	EG3128598001 Available to backorder	Retaining Ring	£0.34 £0.28
26	EG2824786002 Available to backorder	L R Handle Set	£17.71 £14.76
27	EG3660235001 Available to backorder	Spring	£0.48 £0.40
28	EG3128577001 Available to backorder	Lock-Off Trigger	£0.91 £0.76
29	EG3126865001 Available to backorder	Clamp Block	£0.48 £0.40
30	EG5610011006 Available to backorder	Tapping Screw	£0.48 £0.40
31	EG3128578002 Available to backorder	Switch Trigger	£1.39 £1.16
32	EG3128266001 Available to backorder	Lever	£0.85 £0.71
33	EG3660614001 Available to backorder	Compression Spring	£0.54 £0.45
34	EG3127738001 Available to backorder	Rubber Gasket	£0.82 £0.68
35	EG3128566001 Available to backorder	Left Rear Cover	£1.00 £0.83
36	EG2824785001 Available to backorder	L R Housing Set	£32.22 £26.85
37	EG2824761002 Available to backorder	Gear Case Assy	£56.21 £46.84
38	EG2824757004 Available to backorder	Motor & Gear Assy	£89.04 £74.20
39	EG3128567001 Available to backorder	Right Rear Cover	£1.00 £0.83
40	EG5620050007 Available to backorder	Screw	£0.48 £0.40
41	EG3128276001 Available to backorder	Speed Change Button	£0.43 £0.36
42	EG5620479001 Available to backorder	Screw	£0.48 £0.40
43	EG5610305001 Available to backorder	Tapping Screw	£0.48 £0.40
44	EG3705178001 Available to backorder	Fixed Ring	£0.58 £0.48
45	EG5650005001 Available to backorder	Plain Washer	£0.48 £0.40
46	EG3127201001 Available to backorder	Release Button	£1.10 £0.92
47	EG3660013003 Available to backorder	Spring1	£0.48 £0.40
48	EG3127202001 Available to backorder	Power Pack Button	£0.62 £0.52
49	EG2830215002 Available to backorder	Electric Assembly	£117.96 £98.30

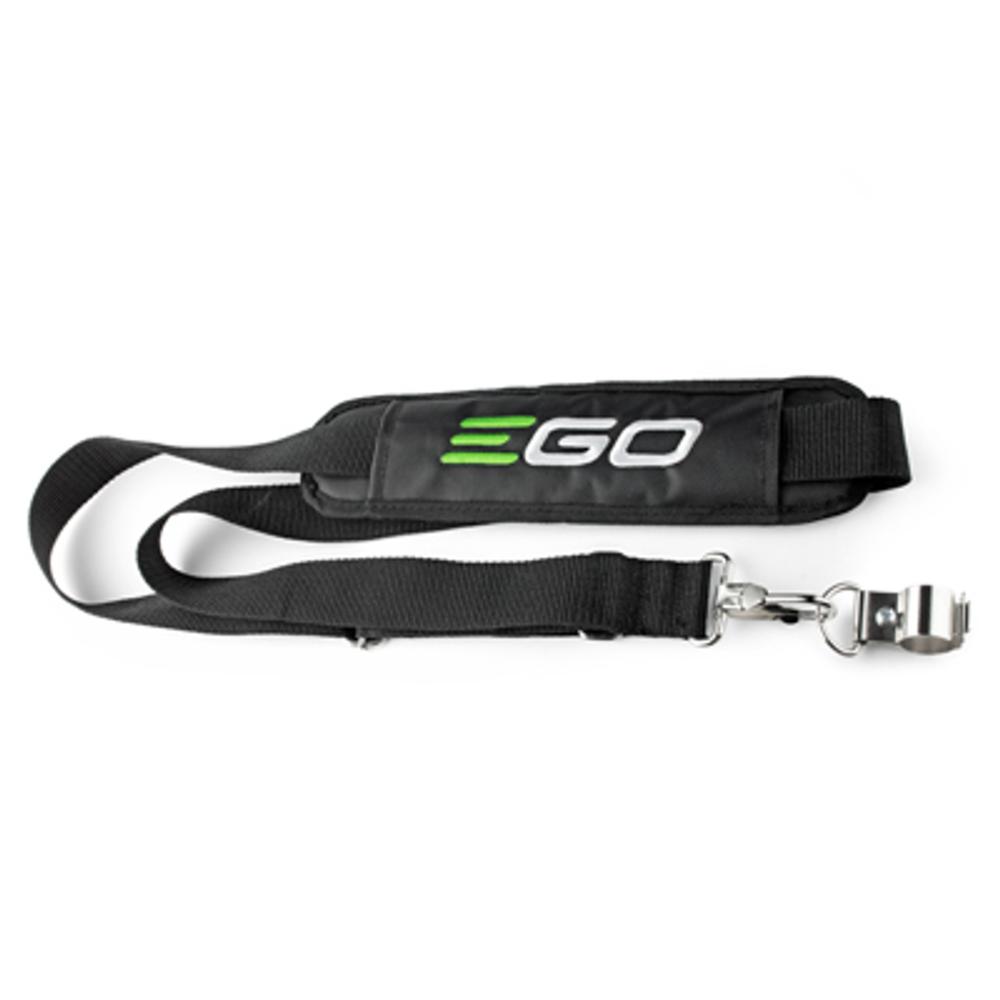

50	EGAP1500 Available to backorder	Harness	£10.86 £9.05
51	EG5680164001 Available to backorder	Inner Hexagon Spanner	£0.54 £0.45
52	EG5680217001 Available to backorder	Wrench	£4.79 £3.99
53	EG3660075001 Available to backorder	Spring	£0.48 £0.40
54	EG5620050001 Available to backorder	Screw	£0.48 £0.40
55	EG3421864001 Available to backorder	Outer Flange	£10.82 £9.02
56	EG3128672001 Available to backorder	Front Handle Cover	£2.72 £2.27
57	EG2825135002 Available to backorder	Handle Lever Set	£9.14 £7.62
201	EG2824020001 Available to backorder	Handle Assy	£22.66 £18.88
202	EG2823319001 Available to backorder	Hook Set	£4.64 £3.87
204	EG2824954004 Available to backorder	Gear Case Assy	£51.48 £42.90
205	EG2824957002 Available to backorder	Guard Assy	£26.04 £21.70
401	EG2824586002 Available to backorder	Lower Guard Assy	£11.65 £9.71
