EGO ST1510E - String Trimmer (Jan 2022) Main Assy Diagram

Name: EGO ST1510E - String Trimmer (Jan 2022) Main Assy Diagram
SKU: st1510e_string_trimmer_jan_2022_main_assy-group
Price: 0.19 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

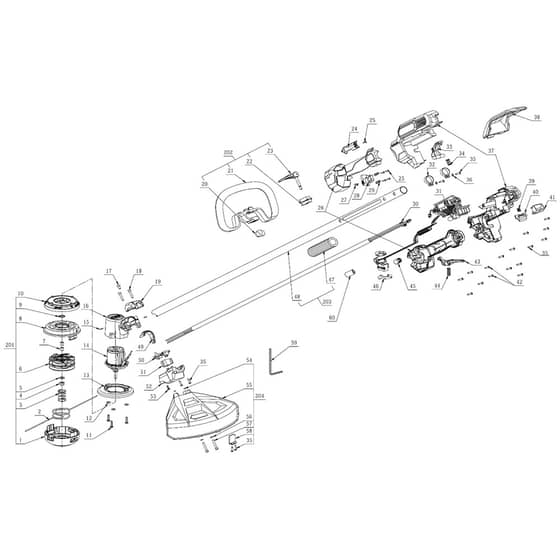

EGO ST1510E - String Trimmer (Jan 2022) Main Assy Diagram

Description

EGO ST1510E String Trimmer (Jan 2022) Brushcutter Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

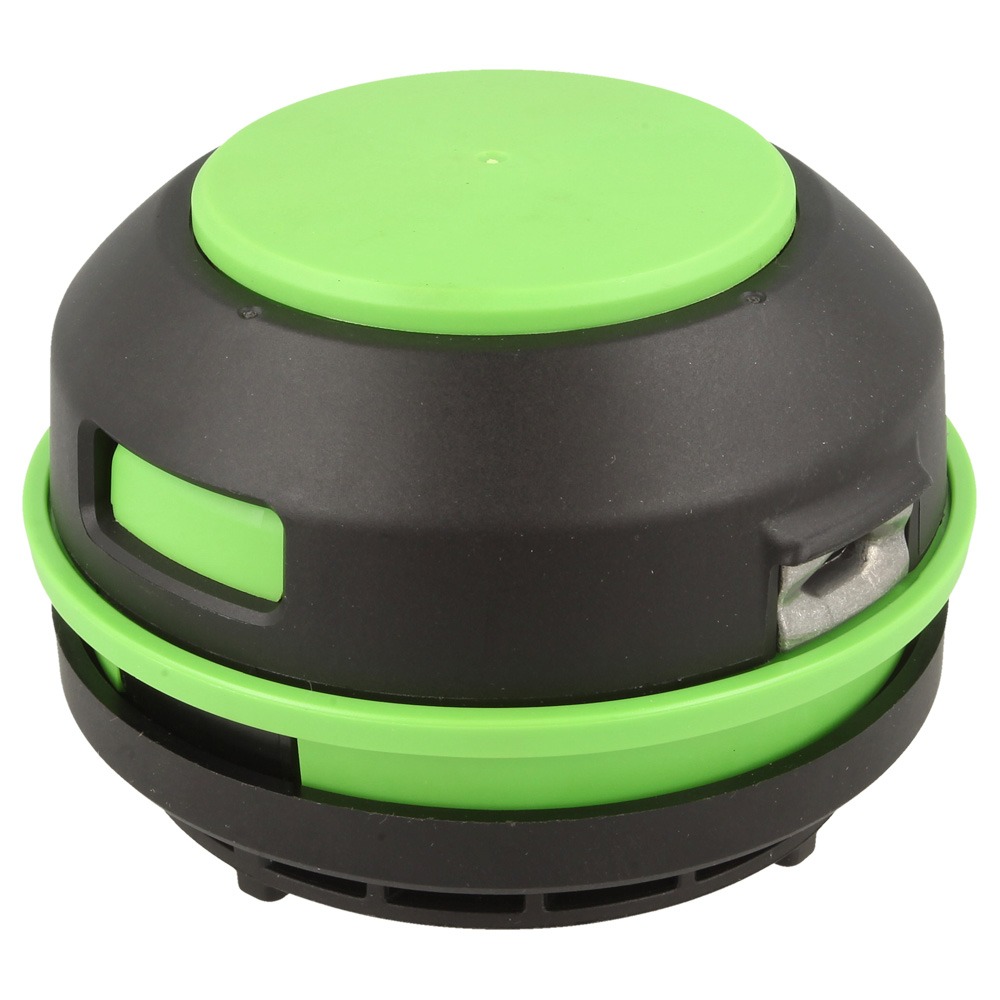

0	EGAH1520 Available to backorder	Powerload Head	£54.26 £45.22

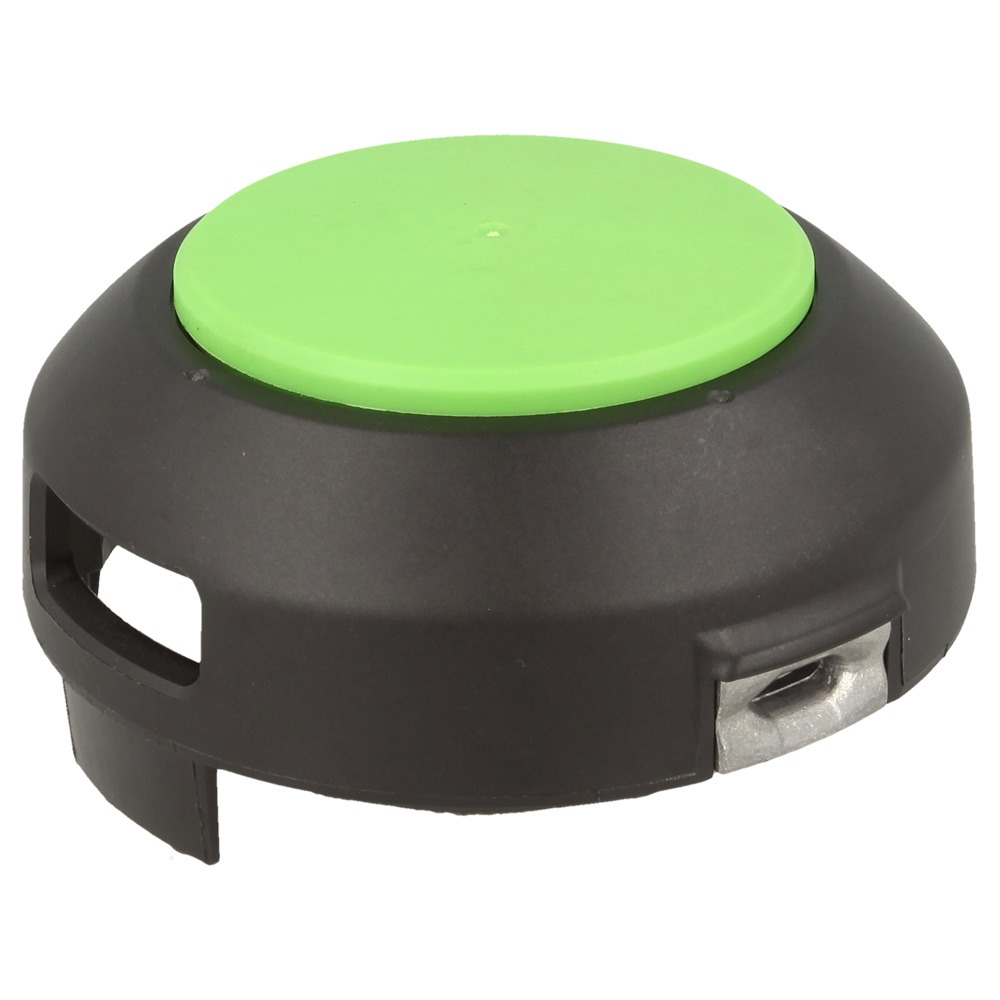

1	EG2825469002 Available to backorder	Lower Housing Assy	£24.74 £20.62
3	EG3660582001 Available to backorder	Compression Spring	£1.70 £1.42
4	EG5630271001 Available to backorder	Nut	£0.48 £0.40
5	EG3700155002 Available to backorder	Washer	£0.48 £0.40

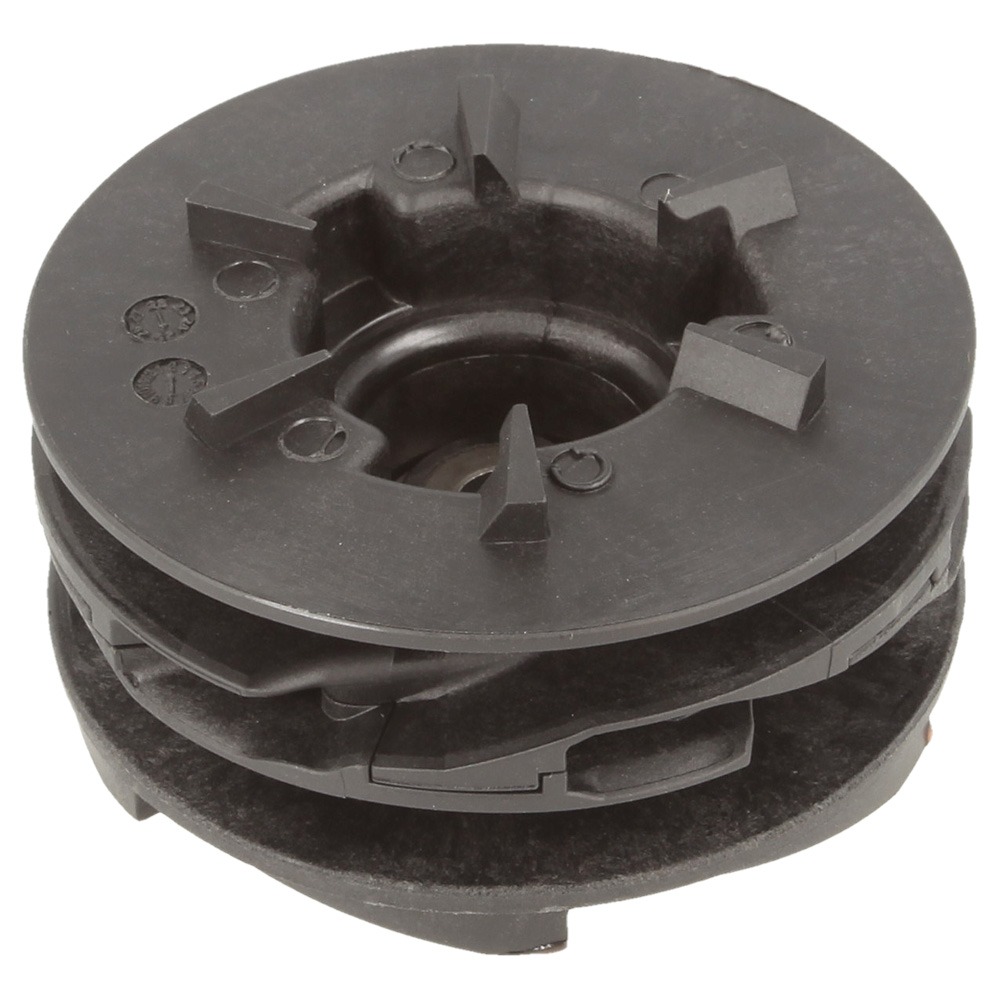

6	EG2825307002 Available to backorder	Spool Assembly	£22.01 £18.34
7	EG3552901001 Available to backorder	Position Sleeve	£0.80 £0.67

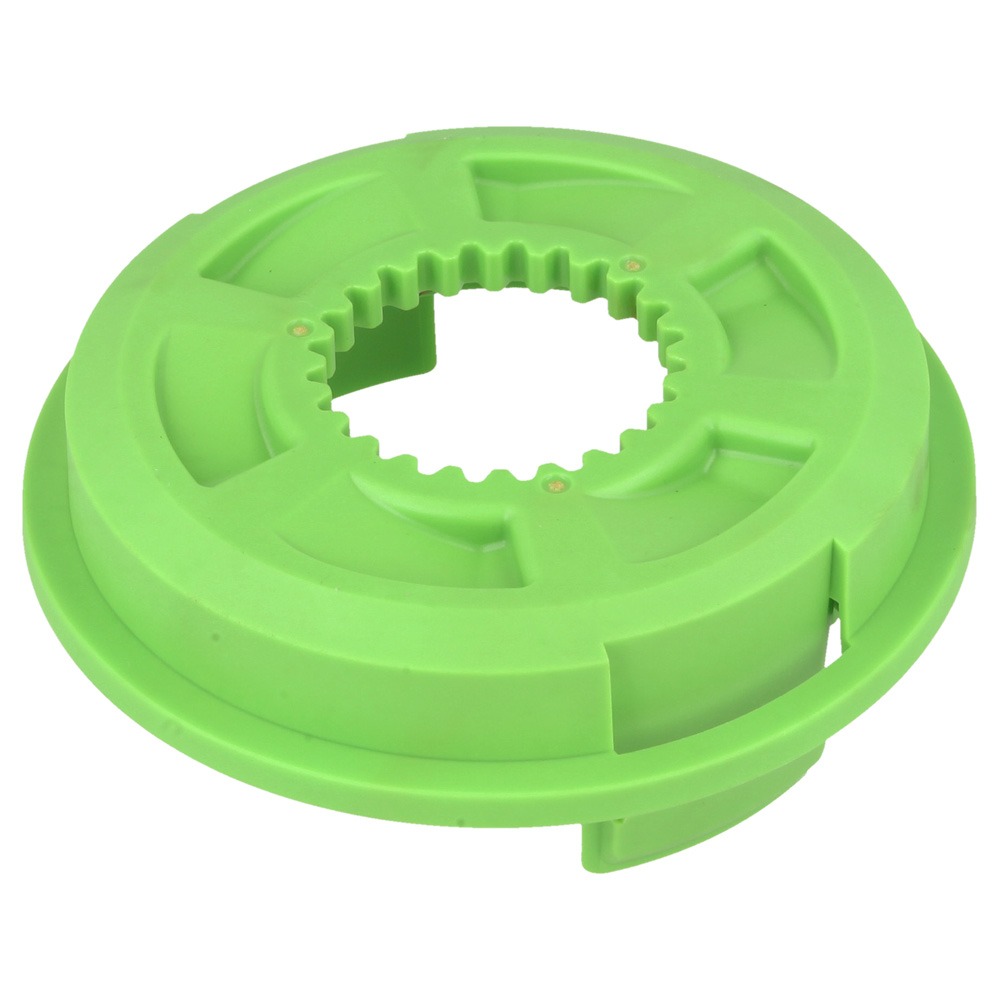

8	EG3129007001 Available to backorder	Upper Housing	£7.61 £6.34
9	EG5660018001 Available to backorder	Circlips For Shaft	£0.48 £0.40

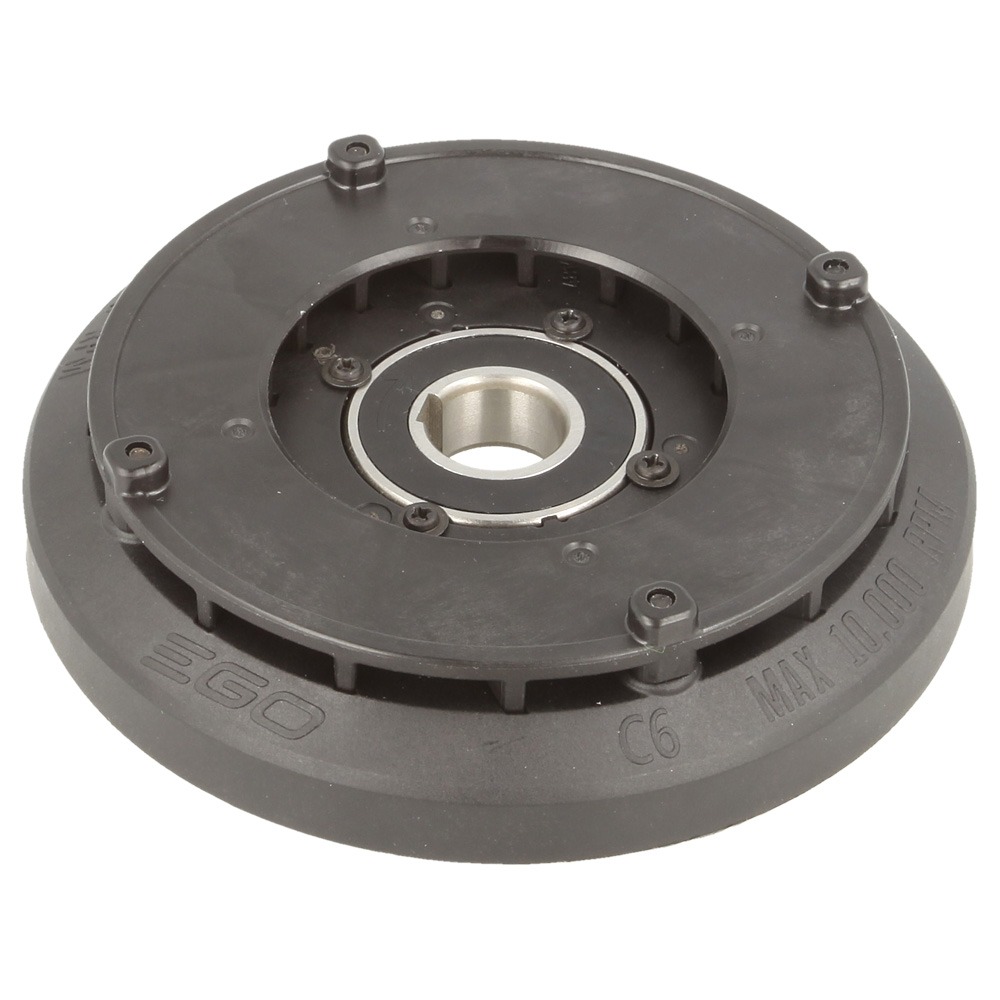

10	EG2825470002 Available to backorder	Support Assy	£37.76 £31.47
11	EG5610059008 Available to backorder	Thread Forming Screw	£0.23 £0.19
12	EG5650497001 Available to backorder	Plain Washer	£0.80 £0.67
13	EG3129171001 Available to backorder	Shield	£1.76 £1.47
14	EG2730267001 Available to backorder	Dc Motor	£109.80 £91.50
15	EG3700731002 Available to backorder	Washer	£0.80 £0.67
16	EG3422085001 Available to backorder	Motor Housing	£24.48 £20.40
17	EG5620213003 Available to backorder	Hexagon Socket Screw	£0.47 £0.39
18	EG5620216003 Available to backorder	Hexagon Socket Screw	£0.38 £0.32
19	EG3322287001 Available to backorder	Top Switch Box Cover	£1.38 £1.15
20	EG3400010003 Available to backorder	Wing Nut	£1.42 £1.18
21	EG3127657001 Available to backorder	Front Handle	£13.55 £11.29
22	EG3127651001 Available to backorder	Clamping Block	£0.38 £0.32
23	EG2824142003 Available to backorder	Handle Lever Set	£7.38 £6.15
24	EG3129271001 Available to backorder	Mounting Plate	£0.80 £0.67
25	EG5610011006 Available to backorder	Tapping Screw	£0.48 £0.40
26	EG2825617002 Available to backorder	L R Handle Set	£11.33 £9.44
27	EG3660029003 Available to backorder	Spring	£0.80 £0.67
28	EG3129274001 Available to backorder	Lock-Off Trigger	£0.80 £0.67
29	EG3126865001 Available to backorder	Clamp Block	£0.48 £0.40
30	EG4860544002 Available to backorder	Internal Wire Assy	£37.16 £30.97
31	EG2830371002 Available to backorder	Electric Assembly	£145.36 £121.13
32	EG3705178001 Available to backorder	Fixed Ring	£0.59 £0.49
33	EG3128266001 Available to backorder	Lever	£0.86 £0.72
34	EG3660614001 Available to backorder	Compression Spring	£0.54 £0.45
35	EG5610294001 Available to backorder	Tapping Screw	£0.48 £0.40
36	EG5650005002 Available to backorder	Plain Washer	£0.48 £0.40
37	EG2825616002 Available to backorder	L R Housing Set	£21.02 £17.52
38	EG3129172001 Available to backorder	Cover	£3.02 £2.52
39	EG3660013003 Available to backorder	Spring1	£0.48 £0.40
40	EG3127497001 Available to backorder	Power Pack Button	£0.58 £0.48
41	EG3127498001 Available to backorder	Power Pack Button	£0.83 £0.69
42	EG5610305001 Available to backorder	Tapping Screw	£0.48 £0.40
43	EG3129273001 Available to backorder	Switch Trigger	£1.02 £0.85
44	EG3660717001 Available to backorder	Compression Spring	£0.80 £0.67
45	EG3680267001 Available to backorder	Magnetic Block	£3.89 £3.24
46	EG3129272001 Available to backorder	Switch Support	£0.80 £0.67
47	EG3705711001 Available to backorder	Sheath	£2.36 £1.97
49	EG3129168001 Available to backorder	Switch Lever	£0.80 £0.67
50	EG3129169002 Available to backorder	Switch Support	£0.23 £0.19
52	EG3129170001 Available to backorder	Bottom Switch Box Cover	£1.56 £1.30
53	EG5610237001 Available to backorder	Tapping Screw	£0.80 £0.67
54	EG5690203001 Available to backorder	O Ring	£0.48 £0.40
56	EG5650015012 Available to backorder	Spring Washer	£0.34 £0.28
57	EG5620646001 Available to backorder	Hexagon Socket Screw	£0.80 £0.67
58	EG3704344001 Available to backorder	Blade	£2.09 £1.74
59	EG5680164001 Available to backorder	Inner Hexagon Spanner	£0.54 £0.45
60	EG3680196001 Available to backorder	Magnet Ring	£1.64 £1.37
202	EG2824020003 Available to backorder	Handle Assy	£24.78 £20.65
203	EG2826087001 Available to backorder	Connecting Tube Assy	£35.66 £29.72
204	EG2825430002 Available to backorder	Guard Assy	£16.62 £13.85
205	EG4870786001 Available to backorder	Switch Assembly	£16.25 £13.54
