EGO ST1500E-F A - String Trimmer (Version A) Main Assy Diagram

Name: EGO ST1500E-F A - String Trimmer (Version A) Main Assy Diagram
SKU: st1500e_f_a_string_trimmer_version_a_est12181000001x_est12-group
Price: 0.28 GBP
Availability: InStock

Part No. st1500e_f_a_string_trimmer_version_a_est12181000001x_est12-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EGO ST1500E-F A - String Trimmer (Version A) Main Assy Diagram

Description

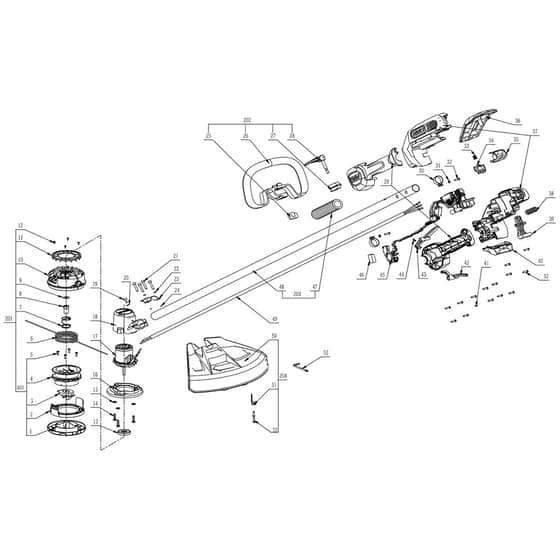

EGO ST1500E-F A String Trimmer (Version A) (EST12181000001X - EST12181099999X) (Jan 2022) Brushcutter Main Assy Parts Diagram

	Part No.	Details
2	EG3128668001 Available to backorder	Lower Housing	£7.04 £5.87
3	EG3128671001 Available to backorder	Slot Cover	£2.02 £1.68
4	EG2824912001 Available to backorder	Mounting Wire Holder Assy	£17.96 £14.97
5	EG5610022001 Available to backorder	Tapping Screw	£0.48 £0.40
7	EG3660650001 Available to backorder	Compression Spring	£1.54 £1.28
8	EG5630301001 Available to backorder	Nut	£3.46 £2.88
9	EG5650573001 Available to backorder	Plain Washer	£0.74 £0.62
10	EG2824809001 Available to backorder	Upper Housing Assy	£22.72 £18.93
11	EG3128193001 Available to backorder	Support Plate	£3.26 £2.72
12	EG5610076004 Available to backorder	Tapping Screw	£0.48 £0.40
13	EG3520800001 Available to backorder	Outer Flange	£3.59 £2.99
14	EG5610059007 Available to backorder	Thread Forming Screw	£0.48 £0.40
15	EG5650396003 Available to backorder	Washer	£0.48 £0.40
16	EG3127655001 Available to backorder	Shield	£2.02 £1.68
17	EG2730220001 Available to backorder	Dc Motor	£63.00 £52.50
18	EG3421602001 Available to backorder	Motor Housing	£27.86 £23.22
19	EG5620213003 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
20	EG5650014003 Available to backorder	Plain Washer	£0.48 £0.40
21	EG5620216003 Available to backorder	Screw	£0.34 £0.28
22	EG5650015012 Available to backorder	Spring Washer	£0.48 £0.40
23	EG3705712001 Available to backorder	Fixing Board	£1.58 £1.32
24	EG5690203001 Available to backorder	O Ring	£0.48 £0.40
25	EG3400010003 Available to backorder	Wing Nut	£1.39 £1.16
26	EG3127657001 Available to backorder	Front Handle	£13.36 £11.13
27	EG3127651001 Available to backorder	Press Block	£0.34 £0.28
28	EG2824142003 Available to backorder	Handle Lever Set	£7.27 £6.06
29	EG2824018001 Available to backorder	Handle Assy	£14.51 £12.09
30	EG3705178001 Available to backorder	Fixed Ring	£0.58 £0.48
31	EG5650005002 Available to backorder	Plain Washer	£0.48 £0.40
32	EG5610294001 Available to backorder	Tapping Screw	£0.48 £0.40
33	EG3660013003 Available to backorder	Spring1	£0.48 £0.40
34	EG3127202001 Available to backorder	Power Pack Button	£0.62 £0.52
35	EG3127201001 Available to backorder	Release Button	£1.10 £0.92
36	EG3127650001 Available to backorder	Cover	£4.88 £4.07
37	EG2824012001 Available to backorder	Rear Housing	£26.41 £22.01
38	EG3660129002 Available to backorder	Spring	£1.06 £0.88
39	EG3127206001 Available to backorder	Lever	£1.39 £1.16
40	EG3127675002 Available to backorder	Support Leg	£1.54 £1.28
41	EG5670160001 Available to backorder	Pin	£0.48 £0.40
42	EG3127653001 Available to backorder	Switch Trigger	£0.85 £0.71
43	EG3127654001 Available to backorder	Lock-Off	£1.39 £1.16
44	EG3660030005 Available to backorder	Spring	£0.48 £0.40
45	EG2830204001 Available to backorder	Electric Assembly	£86.52 £72.10
46	EG3128391001 Available to backorder	Rubber Block	£0.71 £0.59
47	EG3705711001 Available to backorder	Sheath	£2.36 £1.97
48	EG3705819003 Available to backorder	Connecting Tube	£25.22 £21.02
49	EG4860276001 Available to backorder	Internal Wire Assy	£31.70 £26.42
50	EG2824871001 Available to backorder	Guard Assy	£9.76 £8.13
51	EG3704344001 Available to backorder	Blade	£2.05 £1.71
52	EG5680188001 Available to backorder	Inner Hexagon Spanner	£0.82 £0.68
201	EGAH1530 In stock	Cutting Head	£35.00 £29.17
202	EG2824020003 Available to backorder	Handle Assy	£20.36 £16.97
203	EG2824657001 Available to backorder	Connecting Tube	£33.37 £27.81
204	EG2824870002 Available to backorder	Guard Assy	£11.09 £9.24
