EGO SNT2120E-AP - Snow Thrower (Apr 2023) Main Assy Diagram

Name: EGO SNT2120E-AP - Snow Thrower (Apr 2023) Main Assy Diagram
SKU: snt2120e_ap_snow_thrower_apr_2023_main_assy-group
Price: 0.19 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EGO SNT2120E-AP - Snow Thrower (Apr 2023) Main Assy Diagram

Description

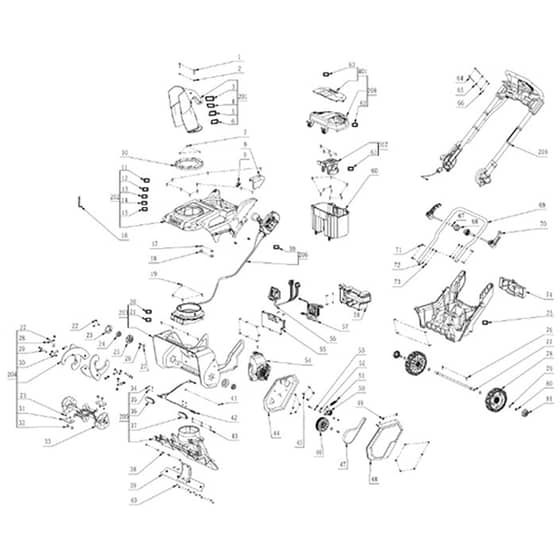

EGO SNT2120E-AP Snow Thrower (Apr 2023) Snow Thrower Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG5620553003 Available to backorder	Hexagon Socket Screw	£1.20 £1.00
2	EG5650016008 Available to backorder	Plain Washer	£0.34 £0.28
3	EG2244424001 Available to backorder	Nameplate	£2.05 £1.71
4	EG2243817001 Available to backorder	Label	£0.53 £0.44
5	EG2243818007 Available to backorder	Label	£3.46 £2.88
6	EG2243818008 Available to backorder	Label	£3.46 £2.88
7	EG5610082004 Available to backorder	Tapping Screw	£0.34 £0.28
8	EG3128459001 Available to backorder	Cover	£3.79 £3.16
9	EG3128636001 Available to backorder	Wire Hold	£1.73 £1.44
10	EG3128438001 Available to backorder	Cover	£8.08 £6.73
11	EG2243157051 Available to backorder	Label	£0.23 £0.19
12	EG2245742002 Available to backorder	Nameplate	£4.13 £3.44
13	EG2245743001 Available to backorder	Nameplate	£2.40 £2.00
14	EG2245743002 Available to backorder	Nameplate	£2.40 £2.00
15	EG2245746002 Available to backorder	Nameplate	£0.71 £0.59
16	EG5680028002 Available to backorder	Hexagon Wrench	£0.71 £0.59
17	EG3700367001 Available to backorder	Cord Anchorage	£0.48 £0.40
18	EG5620479002 Available to backorder	Screw	£0.34 £0.28
19	EG5620157009 Available to backorder	Hexagon Socket Screw	£0.34 £0.28
20	EG2245747002 Available to backorder	Nameplate	£5.68 £4.73
21	EG2245748002 Available to backorder	Nameplate	£9.98 £8.32
22	EG5620559003 Available to backorder	Hexagon Socket Screw	£0.53 £0.44
23	EG3706076001 Available to backorder	Bearing Clamp	£3.28 £2.73
24	EG5700058003 Available to backorder	Ball Bearing	£8.08 £6.73
25	EG3580348001 Available to backorder	Bearing Holder	£6.53 £5.44
26	EG5620021004 Available to backorder	Hexagon Socket Screw	£0.53 £0.44
27	EG5650024006 Available to backorder	Plain Washer	£2.05 £1.71
28	EG5630371002 Available to backorder	Prevailing Torque Type Hexagon Lock Nut With Flange	£2.59 £2.16
29	EG5610866001 Available to backorder	Hexagon Socket Button Head Screw	£1.39 £1.16
30	EG5640460001 Available to backorder	Small Round Head Low Square Neck Bolt	£1.73 £1.44
31	EG2827369001 Available to backorder	Blade Set	£19.16 £15.97
32	EG5620582002 Available to backorder	Screw	£1.39 £1.16
33	EG2824244001 Available to backorder	Support Assembly	£88.93 £74.11
34	EG5610017005 Available to backorder	Tapping Screw	£0.34 £0.28
35	EG5650001002 Available to backorder	Plain Washer	£0.48 £0.40
36	EG2826203001 Available to backorder	Left Transparent Cap Assy	£6.36 £5.30
37	EG2826204001 Available to backorder	Right Transparent Cap Assy	£6.36 £5.30
38	EG5640333001 Available to backorder	Square Neck Bolt	£0.42 £0.35
39	EGASS2120 Available to backorder	Scraper	£31.99 £26.66
40	EG3660653001 Available to backorder	Disc Spring	£0.34 £0.28
41	EG5610021004 Available to backorder	Tapping Screw	£0.48 £0.40
42	EG2831439001 Available to backorder	Led Electric Assembly	£17.82 £14.85
43	EG5650278002 Available to backorder	Washer	£0.31 £0.26
44	EG3706550001 Available to backorder	Belt Guard	£38.40 £32.00
45	EG5620340004 Available to backorder	Hexagon Socket Screw	£0.53 £0.44
46	EG2828774002 Available to backorder	Big Belt Pulley Assembly	£18.13 £15.11
47	EG3800194001 Available to backorder	Poly V-Belt	£20.26 £16.88
48	EG3706312001 Available to backorder	Belt Cover	£24.71 £20.59
49	EG5620160006 Available to backorder	Hexagon Socket Screw	£1.20 £1.00
50	EG2828776001 Available to backorder	Lever Assembly	£11.76 £9.80
51	EG3660637001 Available to backorder	Tension Spring	£1.08 £0.90
52	EG3520909001 Available to backorder	Bush	£0.85 £0.71
53	EG5650211001 Available to backorder	Gasket	£0.34 £0.28
54	EG2828764002 Available to backorder	Motor Assembly	£171.56 £142.97
55	EG3133025001 Available to backorder	Lower Housing	£33.56 £27.97
56	EG2831250001 Available to backorder	Electric Assembly	£120.08 £100.07
57	EG2831161001 Available to backorder	Electric Assembly	£137.24 £114.37
58	EG3133026001 Available to backorder	Top Cover	£17.20 £14.33
59	EG2243821001 Available to backorder	Label	£0.53 £0.44
60	EG2824689002 Available to backorder	Battery Box Assy	£38.30 £31.92
61	EG2243816001 Available to backorder	Label	£0.53 £0.44
62	EG2245744001 Available to backorder	Nameplate	£0.85 £0.71
63	EG2245745001 Available to backorder	Nameplate	£1.91 £1.59
64	EG5620554001 Available to backorder	Hexagon Socket Screw	£1.04 £0.87
65	EG5650012006 Available to backorder	Plain Washer	£0.34 £0.28
66	EG5630006004 Available to backorder	Prevailing Torque Hexagon Nut	£0.34 £0.28
67	EG3580412001 Available to backorder	Adjustment Lever Bushing	£1.04 £0.87
68	EG3130766001 Available to backorder	Knob	£3.00 £2.50
69	EG3708369001 Available to backorder	Handle Connecting Tube	£30.79 £25.66
70	EG2824685001 Available to backorder	Adjusting Handle Set	£14.11 £11.76
71	EG5640168001 Available to backorder	Square Neck Bolt	£0.48 £0.40
72	EG5650017010 Available to backorder	Plain Washer	£0.34 £0.28
73	EG5630015007 Available to backorder	Prevailing Torque Hexagon Nut	£0.34 £0.28
74	EG3128464001 Available to backorder	Rear Cover	£7.73 £6.44
75	EG2245739002 Available to backorder	Nameplate	£2.93 £2.44
76	EG5640007005 Available to backorder	Hexagon Head Bolt	£0.34 £0.28
77	EG2824537001 Available to backorder	Shaft Assembly	£13.91 £11.59
78	EG2828766001 Available to backorder	Rear Wheel Assembly	£16.79 £13.99
79	EG5650332001 Available to backorder	Washer	£0.34 £0.28
80	EG5620358001 Available to backorder	Flange Screw	£1.20 £1.00
81	EG3132699001 Available to backorder	Wheel Hub Cover	£0.71 £0.59
201	EG2829912001 Available to backorder	Chute Assembly	£51.88 £43.23
202	EG2828869002 Available to backorder	Upper Housing Assembly	£50.24 £41.87
203	EG2829913001 Available to backorder	Deck Unit	£151.93 £126.61
204	EGARP2120 Available to backorder	Rotating Blade Set	£84.48 £70.40
205	EG2828768001 Available to backorder	Middle Housing Assembly	£43.64 £36.37
206	EG2829910001 Available to backorder	Adjusting Handle Set	£102.96 £85.80
207	EG2829916001 Available to backorder	Battery Box Assembly	£15.16 £12.63
208	EG2829915001 Available to backorder	Battery Box Cover Assembly	£26.36 £21.97
209	EG2829636001 Available to backorder	Handle Assembly	£377.40 £314.50
401	EG2829914001 Available to backorder	Transparent Guard	£13.16 £10.97
