EGO PSX2500 - Pruner Attachment (Jan 2022) Main Assy Diagram

Name: EGO PSX2500 - Pruner Attachment (Jan 2022) Main Assy Diagram
SKU: psx2500_pruner_attachment_jan_2022_main_assy-group
Price: 0.36 GBP
Availability: InStock

Part No. psx2500_pruner_attachment_jan_2022_main_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EGO PSX2500 - Pruner Attachment (Jan 2022) Main Assy Diagram

Description

EGO PSX2500 Pruner Attachment (Jan 2022) Multi Tool Main Assy Parts Diagram

	Part No.	Details

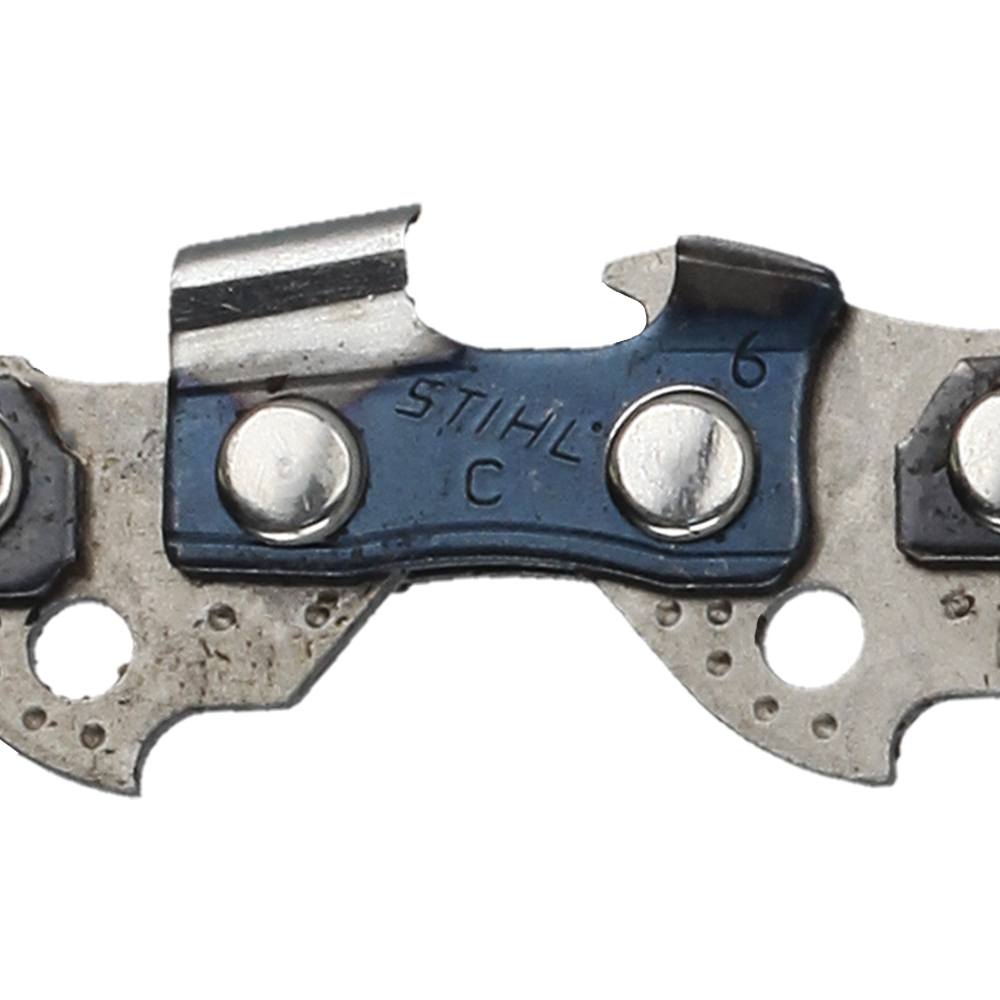

2	ST3610 000 0040 In stock	10" Stihl Chain	£18.40 £15.33

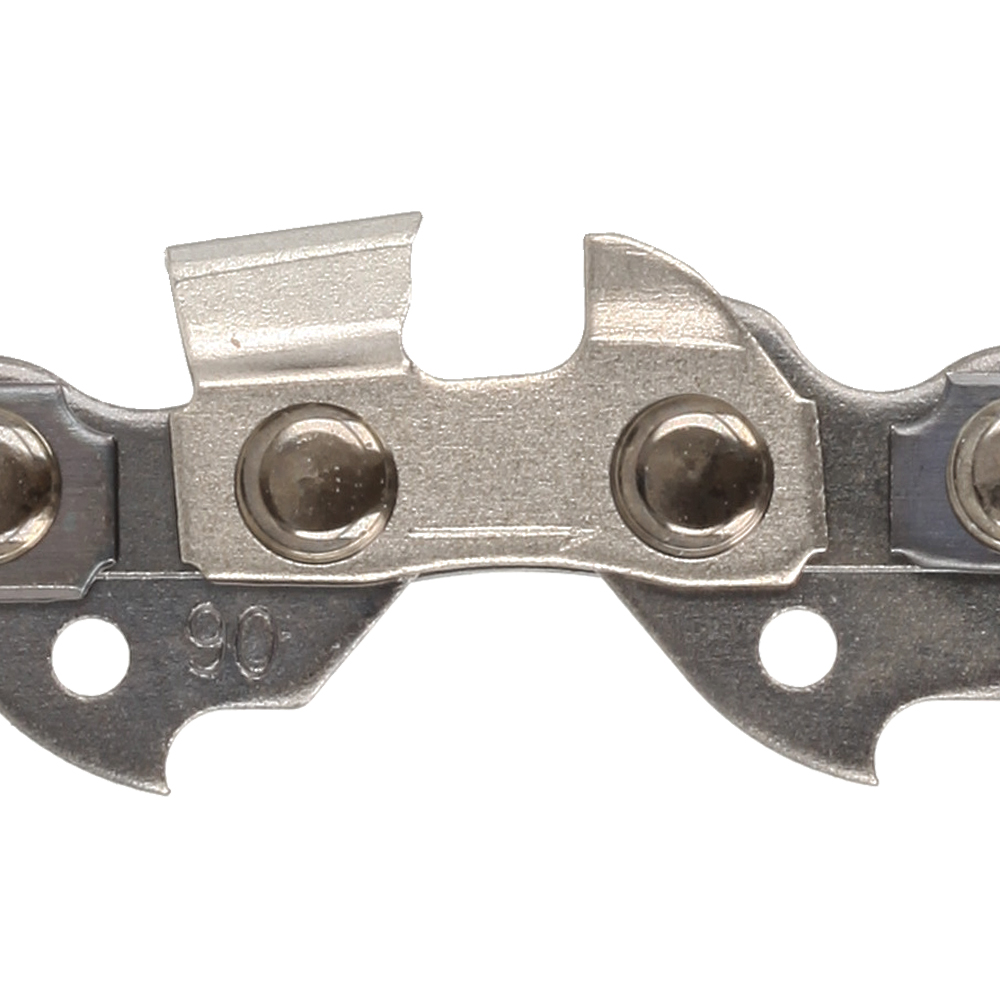

2	OR90PX040E In stock	10" Oregon Chain	£12.20 £10.17

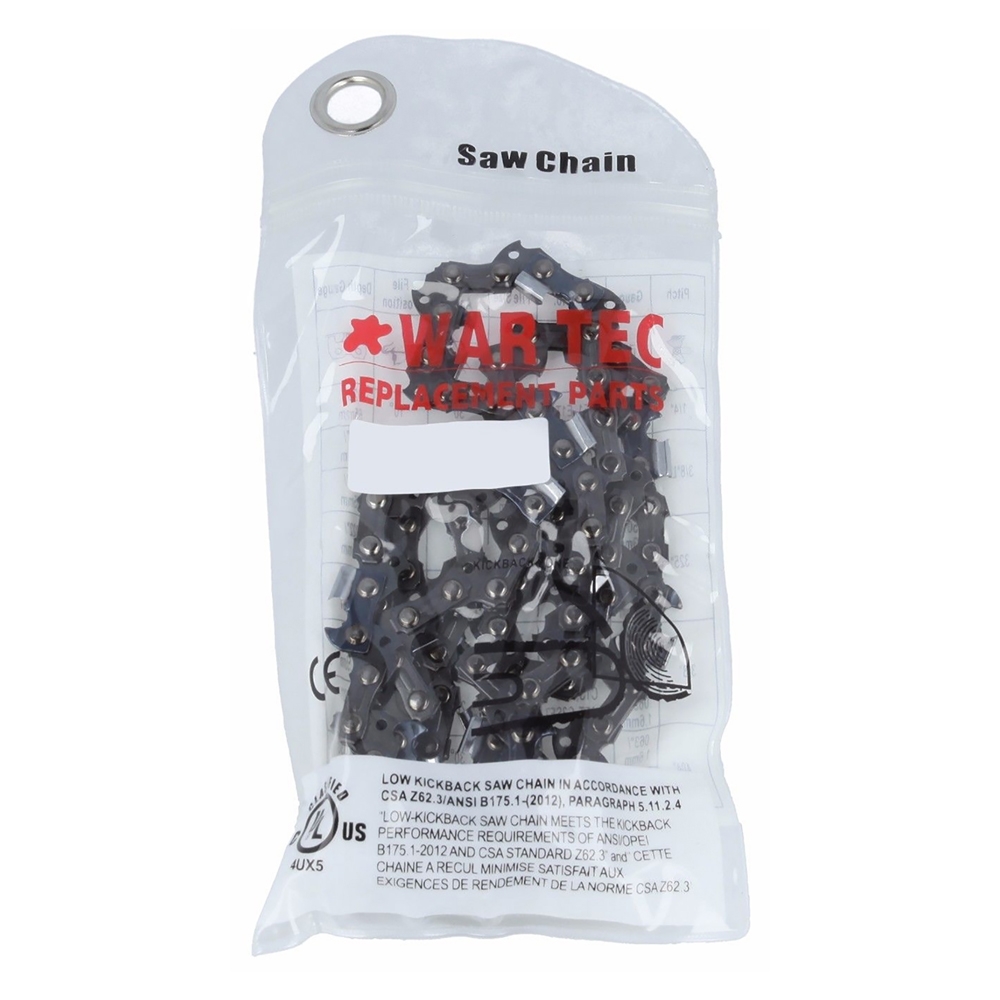

2	5054 In stock	10" WAR TEC Chain	£6.98 £5.82

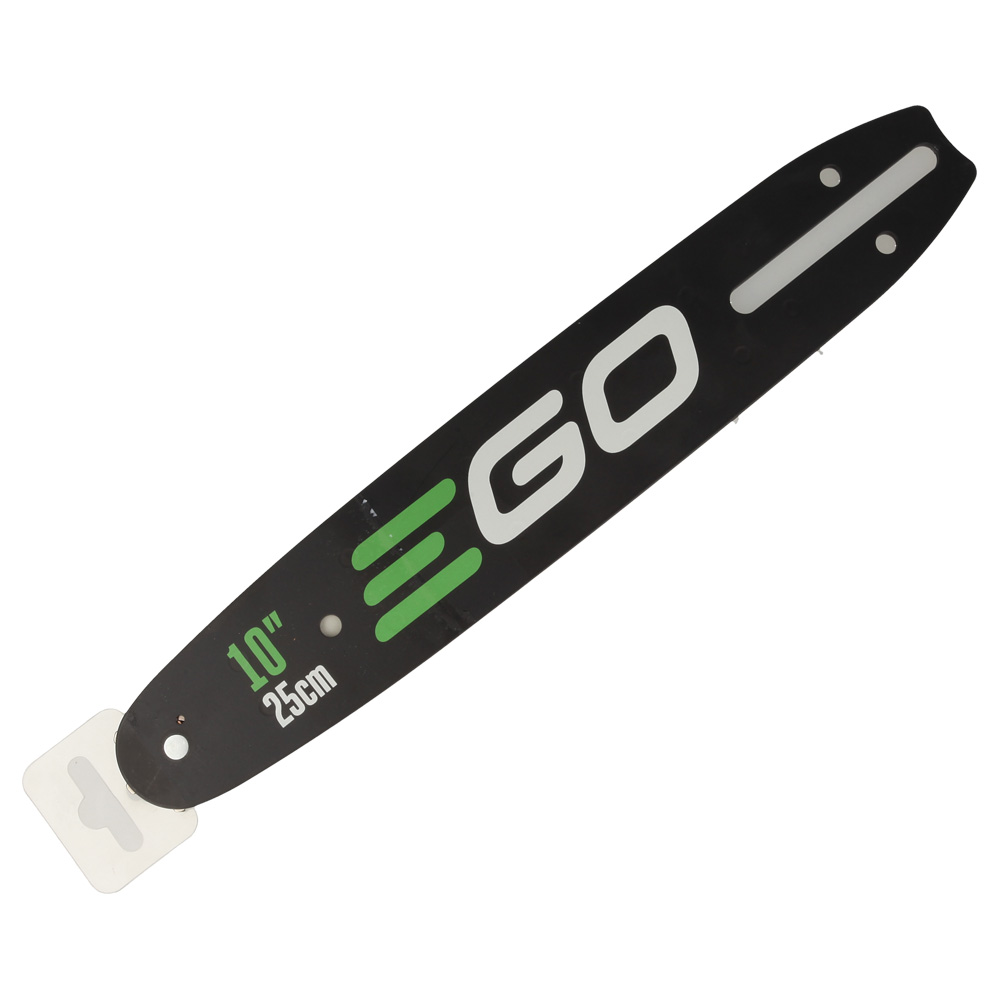

3	EGAG1001 Available to backorder	10" EGO Guide Bar	£22.57 £18.81
1	EG3128561001 Available to backorder	Sheath	£5.32 £4.43
4	EG3131326001 Available to backorder	Outlet Tube	£1.68 £1.40
5	EG2827231001 Available to backorder	Pump Assembly	£31.28 £26.07
6	EG5690018001 Available to backorder	O Ring	£0.83 £0.69
7	EG2828522001 Available to backorder	Tension Nut Assembly	£11.65 £9.71
8	EG5620213004 Available to backorder	Hexagon Socket Screw	£0.83 £0.69
9	EG5620479001 Available to backorder	Screw	£0.48 £0.40
10	EG5620011010 Available to backorder	Hexagon Socket Screw	£0.83 £0.69
11	EG3707340001 Available to backorder	Protecting Cover Plate	£0.83 £0.69
12	EG2827277002 Available to backorder	Kettle Cover Assembly	£6.20 £5.17
13	EG5660009001 Available to backorder	Circlips For Shaft	£0.83 £0.69
14	EG3570098001 Available to backorder	Worm	£1.68 £1.40
15	EG5680216001 Available to backorder	Key	£0.83 £0.69
16	EG2730334001 Available to backorder	Dc Motor	£87.48 £72.90
17	EG5620019005 Available to backorder	Hexagon Socket Screw	£0.83 £0.69
18	EG3131189001 Available to backorder	Cover Plate	£1.55 £1.29
19	EG3131627001 Available to backorder	Fan Baffle	£1.55 £1.29
20	EG2827509002 Available to backorder	Motor Housing Cover Assembly	£40.08 £33.40
21	EG5630325001 Available to backorder	Flange Nut	£2.20 £1.83
22	EG2827508002 Available to backorder	Cover Plate Assembly	£9.71 £8.09

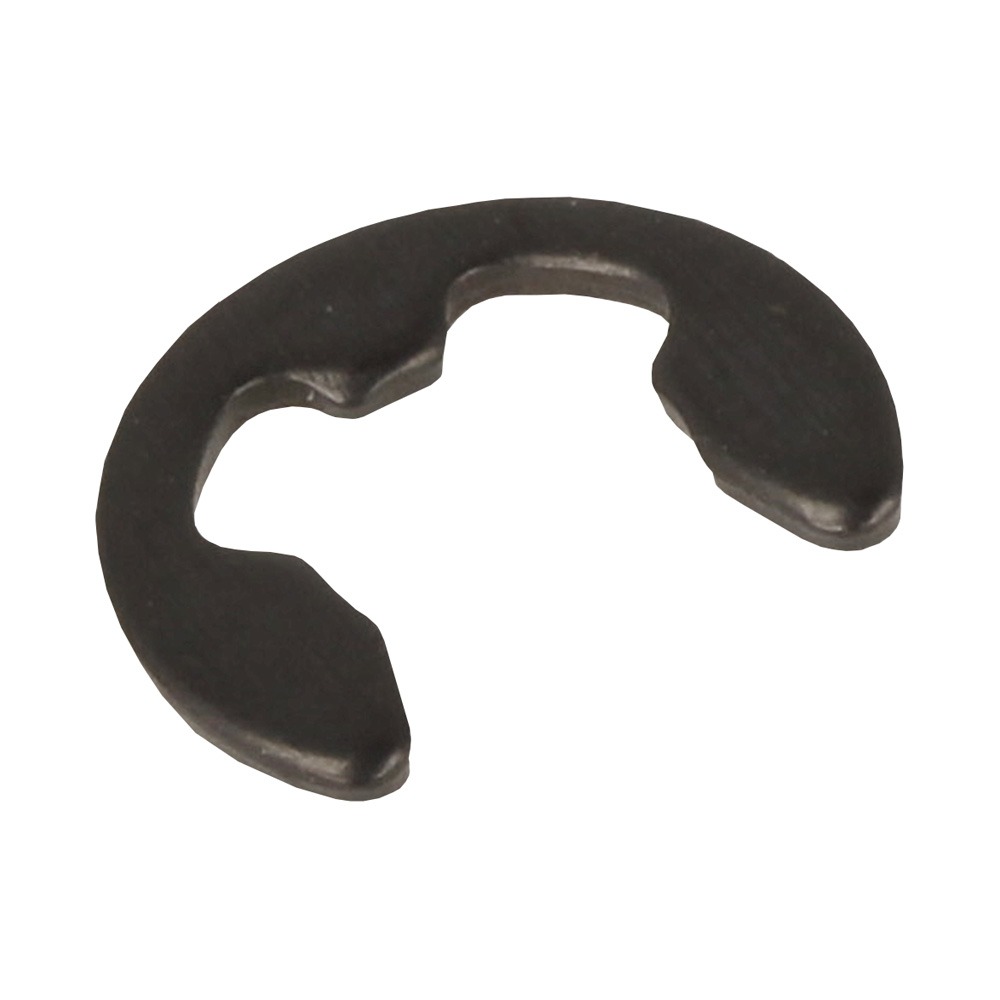

23	EG5660139001 Available to backorder	E Ring	£0.48 £0.40

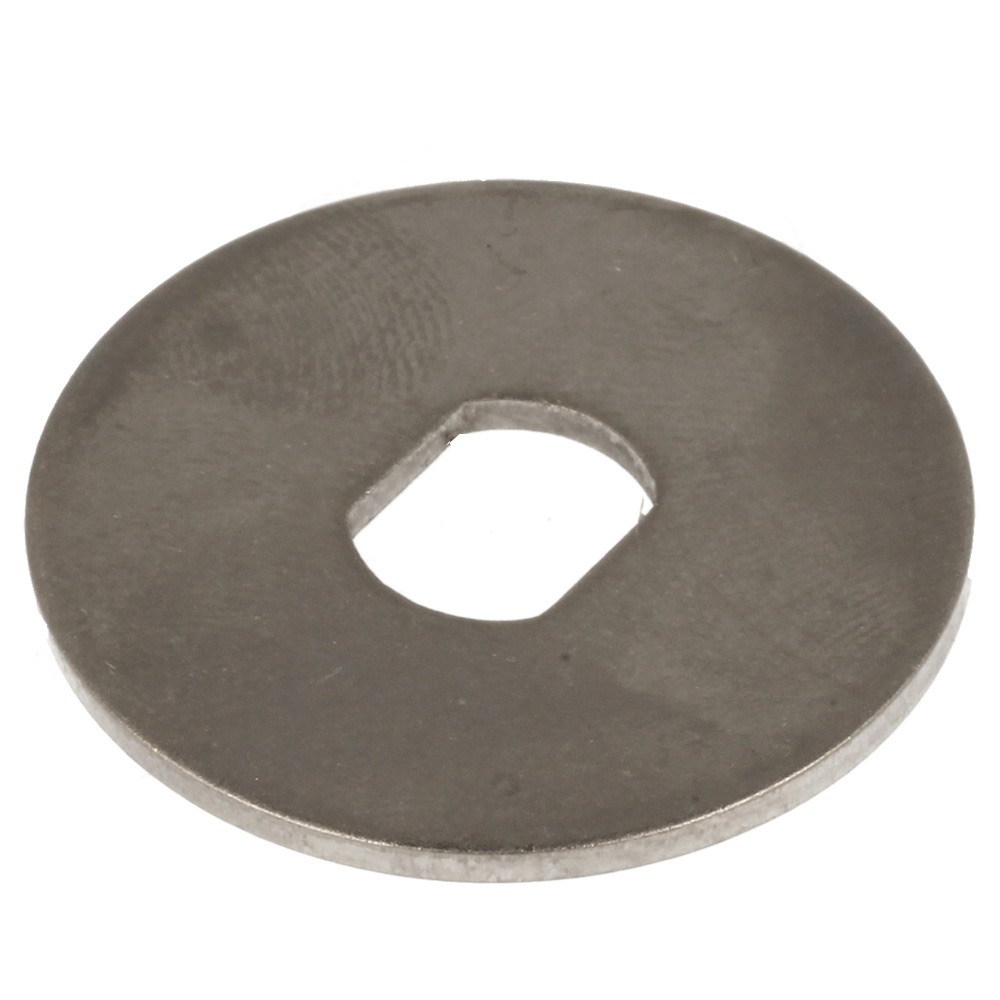

24	EG5660310001 Available to backorder	Chain Wheel Gasket	£0.43 £0.36
25	EG3570084001 Available to backorder	Chain Wheel	£14.48 £12.07
26	EG2827818002 Available to backorder	Cover Plate Assembly	£2.71 £2.26
27	EG3707457001 Available to backorder	Chip Shield	£0.83 £0.69
28	EG3707530001 Available to backorder	Flash Board	£6.06 £5.05
29	EG2827816002 Available to backorder	Support Assembly	£47.38 £39.48
30	EG3705464001 In stock	Limit Chute	£0.43 £0.36
31	EG5620550001 In stock	Hexagon Socket Screw	£0.59 £0.49
32	EG3707459001 Available to backorder	Connecting Tube	£27.17 £22.64
33	EG4860826001 Available to backorder	Internal Wire Assembly	£8.42 £7.02
34	EG3680302001 Available to backorder	Speed Magnetic Shoe	£2.98 £2.48
35	EG3131611001 Available to backorder	Sleeve	£0.83 £0.69
201	EG2827292002 Available to backorder	Kettle Assembly	£18.23 £15.19

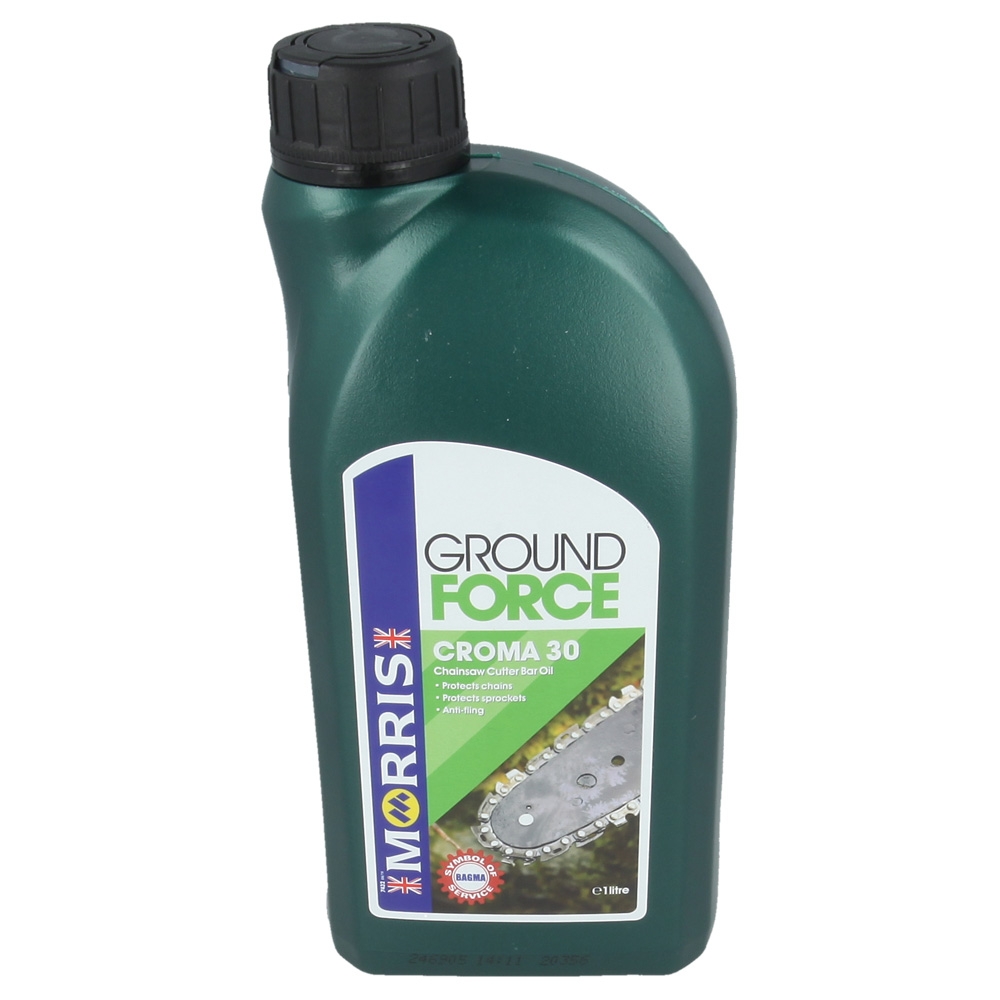

900	4801 In stock	Morris Bar Chain Oil	£8.15 £6.79

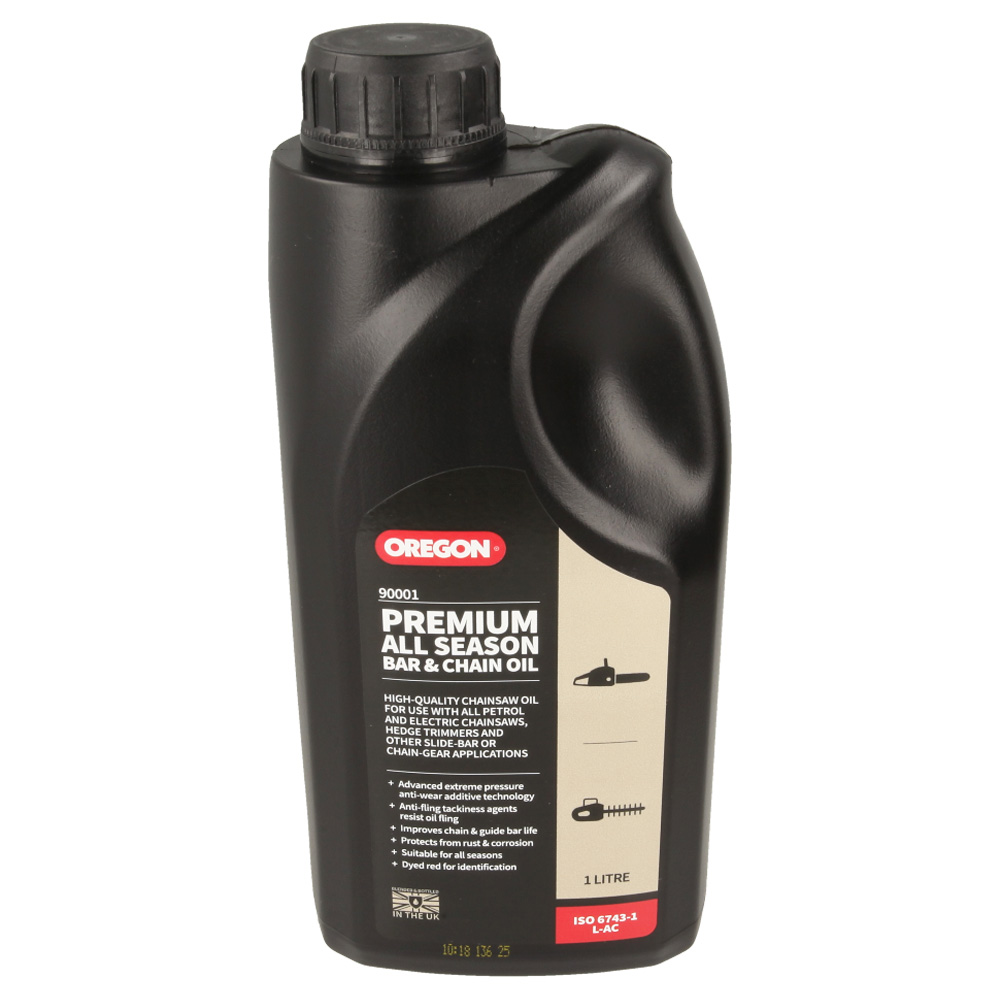

900	OR91001 In stock	Oregon Bar Chain Oil	£9.68 £8.07
