EGO PSA1000 - Pruner Attachment (Jan 2022) Main Assy Diagram

Name: EGO PSA1000 - Pruner Attachment (Jan 2022) Main Assy Diagram
SKU: psa1000_pruner_attachment_jan_2022_main_assy-group
Price: 0.19 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EGO PSA1000 - Pruner Attachment (Jan 2022) Main Assy Diagram

Description

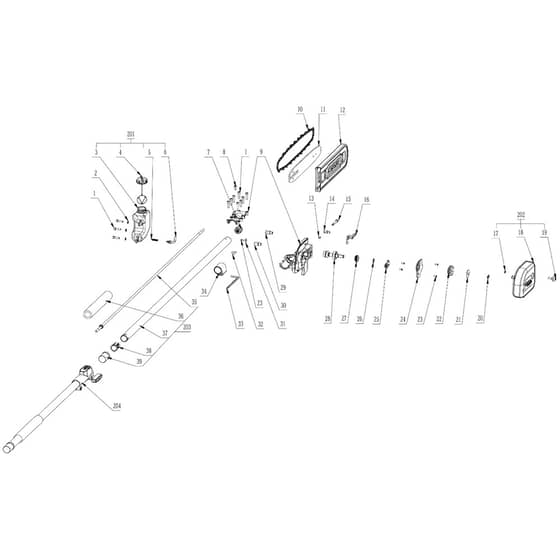

EGO PSA1000 Pruner Attachment (Jan 2022) Multi Tool Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG5620434003 Available to backorder	Hexagon Socket Screw	£0.53 £0.44
2	EG5650011003 Available to backorder	Plain Washer	£0.48 £0.40
3	EG2824777002 Available to backorder	Kettle Assy	£11.90 £9.92
4	EG2824770002 Available to backorder	Cover Assembly	£9.00 £7.50
5	EG3660648001 Available to backorder	Spring	£0.59 £0.49
6	EG4920552001 Available to backorder	Tube	£1.50 £1.25
7	EG2824779002 Available to backorder	Pinion Assembly	£32.71 £27.26
8	EG5620213003 Available to backorder	Hexagon Socket Screw	£0.47 £0.39
9	EG2824813001 Available to backorder	Gear Case Assy	£74.88 £62.40
10	ST3610 000 0040 Available to backorder	10" Stihl Chain	£15.64 £13.03
10	OR90PX040E In stock	10" Oregon Chain	£11.38 £9.48
10	5054 In stock	10" WAR TEC Chain	£6.98 £5.82
11	EGAG1001 Available to backorder	10" EGO Guide Bar	£22.56 £18.80
11	OR104SDEA041 Available to backorder	10" Oregon Guide Bar	£19.38 £16.15
12	EG3128561001 Available to backorder	Sheath	£6.47 £5.39
13	EG5660003003 Available to backorder	E Ring	£0.48 £0.40
14	EG5630294001 Available to backorder	Nut	£1.45 £1.21
15	EG5620547001 Available to backorder	Screw	£1.70 £1.42
16	EG4920551001 Available to backorder	Tube	£1.50 £1.25
17	EG5660005001 Available to backorder	E Ring	£0.23 £0.19
19	EG5640256001 Available to backorder	Screw With Washer	£0.85 £0.71
20	EG5660242001 Available to backorder	E Ring	£0.53 £0.44
21	EG5660208001 Available to backorder	Gasket	£0.46 £0.38
22	EG3421960001 Available to backorder	Sprocket	£8.83 £7.36
23	EG5620354001 Available to backorder	Screw	£0.48 £0.40
24	EG3421872001 Available to backorder	Dust Cover	£2.33 £1.94
25	EG2823482001 Available to backorder	Pump Assy	£17.88 £14.90
26	EG5660011001 Available to backorder	Circlips For Shaft	£0.48 £0.40
27	EG3128607001 Available to backorder	Worm	£0.72 £0.60
28	EG2823487002 Available to backorder	Shaft Assembly	£36.67 £30.56
29	EG5630291001 Available to backorder	Nut	£0.86 £0.72
30	EG5670416001 Available to backorder	Pin	£1.36 £1.13
31	EG3700353001 Available to backorder	Washer	£0.48 £0.40
32	EG5620546001 Available to backorder	Hexagon Socket Screw	£0.48 £0.40

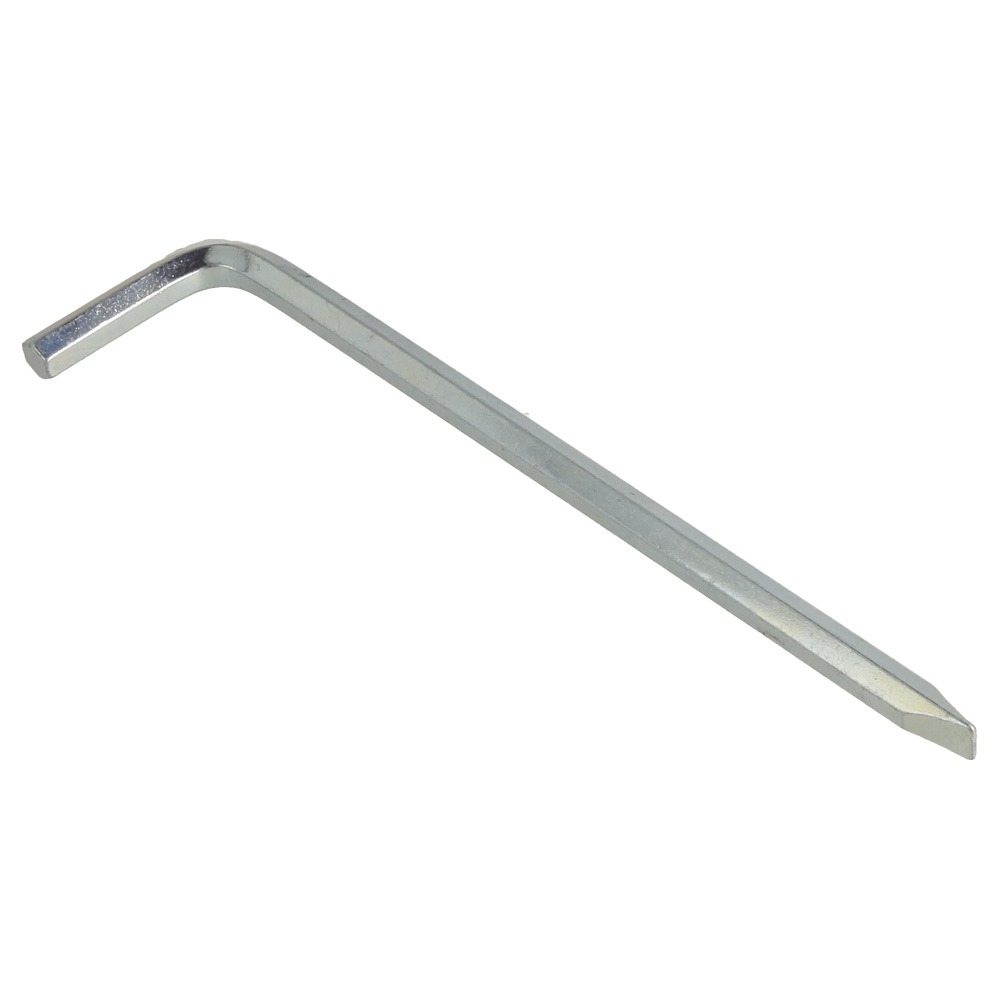

33	EG5680210001 Available to backorder	Inner Hexagon Spanner	£1.08 £0.90
34	EG3125786001 Available to backorder	Support	£0.92 £0.77
35	EG2824797002 Available to backorder	Shaft Assembly	£15.16 £12.63
36	EG3706123001 Available to backorder	Sheath	£3.40 £2.83
37	EG2824781002 Available to backorder	Tube Assembly	£41.90 £34.92
38	EG3128556001 Available to backorder	Guiding Block	£0.59 £0.49
39	EG3128734001 Available to backorder	Sleeve	£0.54 £0.45
201	EG2824780002 Available to backorder	Kettle Assy	£16.18 £13.48

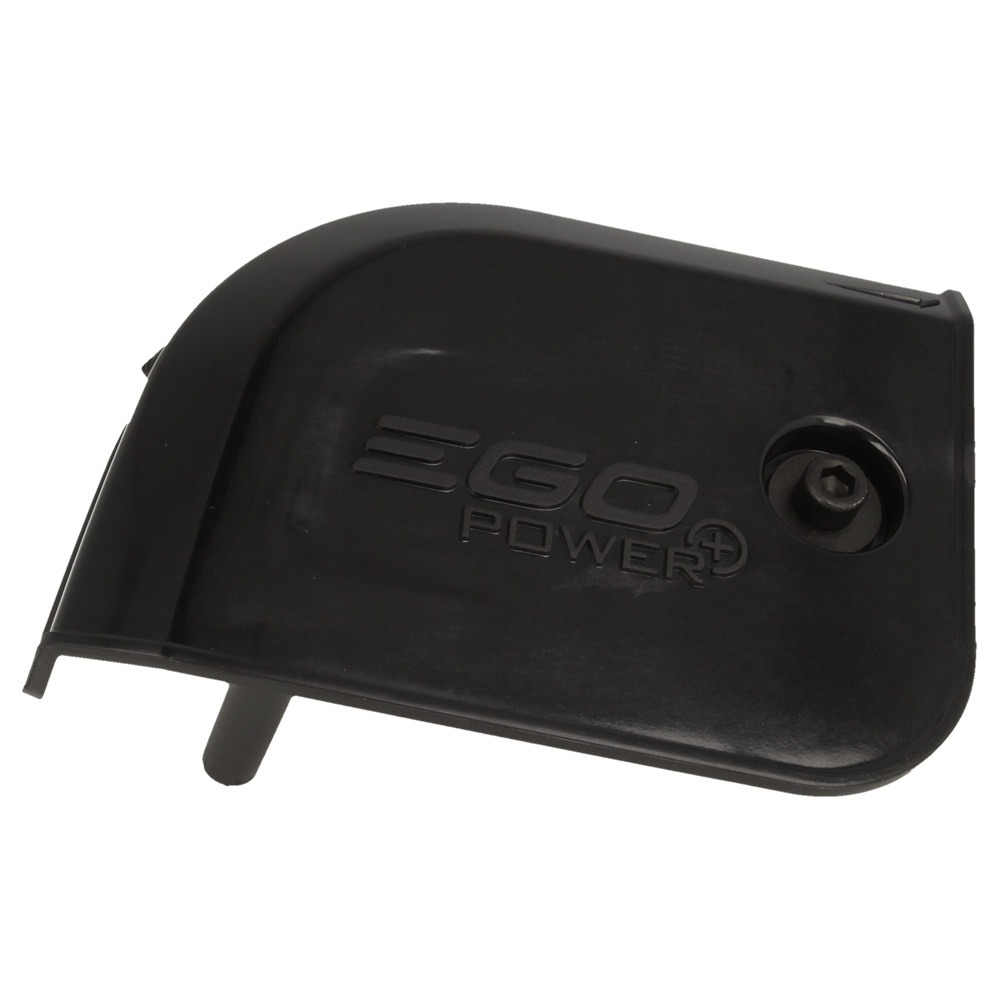

202	EG2820881002 In stock	Cover Assembly	£6.68 £5.57
203	EG2823586002 Available to backorder	Connecting Tube Assy	£55.87 £46.56
204	EG2825084002 Available to backorder	Tube Assembly	£107.74 £89.78
900	4801 In stock	Morris Chain Oil	£7.32 £6.10
900	OR91001 In stock	Oregon Chain Oil	£9.04 £7.53
