EGO LMX5300SP Professional-X Lawnmower (Apr 2024) Rotary Mower Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG5610893001 Available to backorder	Hexalobular Socket Pan Head Flange Tapping Screw	£0.90 £0.75
2	EG2850824001 Available to backorder	Front Cover Assembly	£18.73 £15.61
3	EG2831846001 Available to backorder	Led Electric Assembly	£27.65 £23.04
4	EG3126760001 Available to backorder	Release Button	£1.02 £0.85
5	EG3126772001 Available to backorder	Sliding Block	£0.59 £0.49
6	EG3131425001 Available to backorder	Support Base	£0.85 £0.71
7	EG5620157006 Available to backorder	Hexagon Socket Screw	£0.47 £0.39
8	EG3660303002 Available to backorder	Spring	£0.78 £0.65
9	EG3131427001 Available to backorder	Sliding Block	£0.53 £0.44
10	EG4860957006 Available to backorder	Connecting Base Wiring Harness	£25.54 £21.28
11	EG4860957005 Available to backorder	Connecting Base Wiring Harness	£28.02 £23.35
12	EG3131426001 Available to backorder	Supporting Structure	£0.76 £0.63
13	EG3660979001 Available to backorder	Compression Spring	£0.97 £0.81
14	EG5640360001 Available to backorder	Hexagon Flange Head Thread Forming Screw	£1.97 £1.64
15	EG3709127001 Available to backorder	Bumper	£20.70 £17.25
16	EG5640483001 Available to backorder	Flange Bolt-Large Series	£3.31 £2.76
17	EG3135471001 Available to backorder	Cover	£1.19 £0.99
18	EG5650025007 Available to backorder	Washer	£0.48 £0.40
19	EG3134856001 Available to backorder	Height Adjusting Lever	£1.45 £1.21
20	EG3705216001 Available to backorder	Mounting Plate	£0.78 £0.65
21	EG2850227001 Available to backorder	Wheel Assembly	£46.43 £38.69
22	EG3709126001 Available to backorder	Protecting Cover Plate	£20.65 £17.21
24	EG5640226002 Available to backorder	Flange Bolt	£2.00 £1.67
25	EG5650510001 Available to backorder	Washer	£1.46 £1.22
26	EG3300081001 Available to backorder	Fan	£15.00 £12.50
27	EG3709123001 Available to backorder	Bumper	£17.51 £14.59
28	EG5630271001 Available to backorder	Nut	£0.48 £0.40
29	EG3134854001 Available to backorder	Shield	£4.50 £3.75
30	EG3709119001 Available to backorder	Depth Stop Plate	£9.05 £7.54
31	EG5610388001 Available to backorder	Hexalobular Socket Thread Forming Screw	£0.22 £0.18
32	EG5640354001 Available to backorder	Flange Bolt-Large Series	£1.36 £1.13
33	EG5630571001 Available to backorder	Prevailing Torque Type All-Metal Hexagon Nut	£0.90 £0.75
34	EG3134881001 Available to backorder	Bottom Board	£1.73 £1.44
35	EG2850613001 Available to backorder	Supporting Plate Assembly	£30.65 £25.54
36	EG5620377003 Available to backorder	Hexagon Socket Screw	£0.13 £0.11
37	EG3423561001 Available to backorder	Turntable	£10.74 £8.95
38	EG5611201001 Available to backorder	Hexalobular Socket Screw	£0.90 £0.75
39	EG3709179001 Available to backorder	Limit Plate	£5.63 £4.69
40	EG3135545001 Available to backorder	Rear Enclosure	£8.82 £7.35
41	EG3709128001 Available to backorder	Depth Stop Plate	£12.48 £10.40
42	EG5670758001 Available to backorder	Shaft	£7.51 £6.26
43	EG5650004008 Available to backorder	Plain Washer	£0.80 £0.67
44	EG5640010006 Available to backorder	Hexagon Flange Bolt	£1.62 £1.35
45	EG2851755001 Available to backorder	Big Gear	£86.68 £72.23
46	EG5650453001 Available to backorder	Wave Washer	£0.47 £0.39

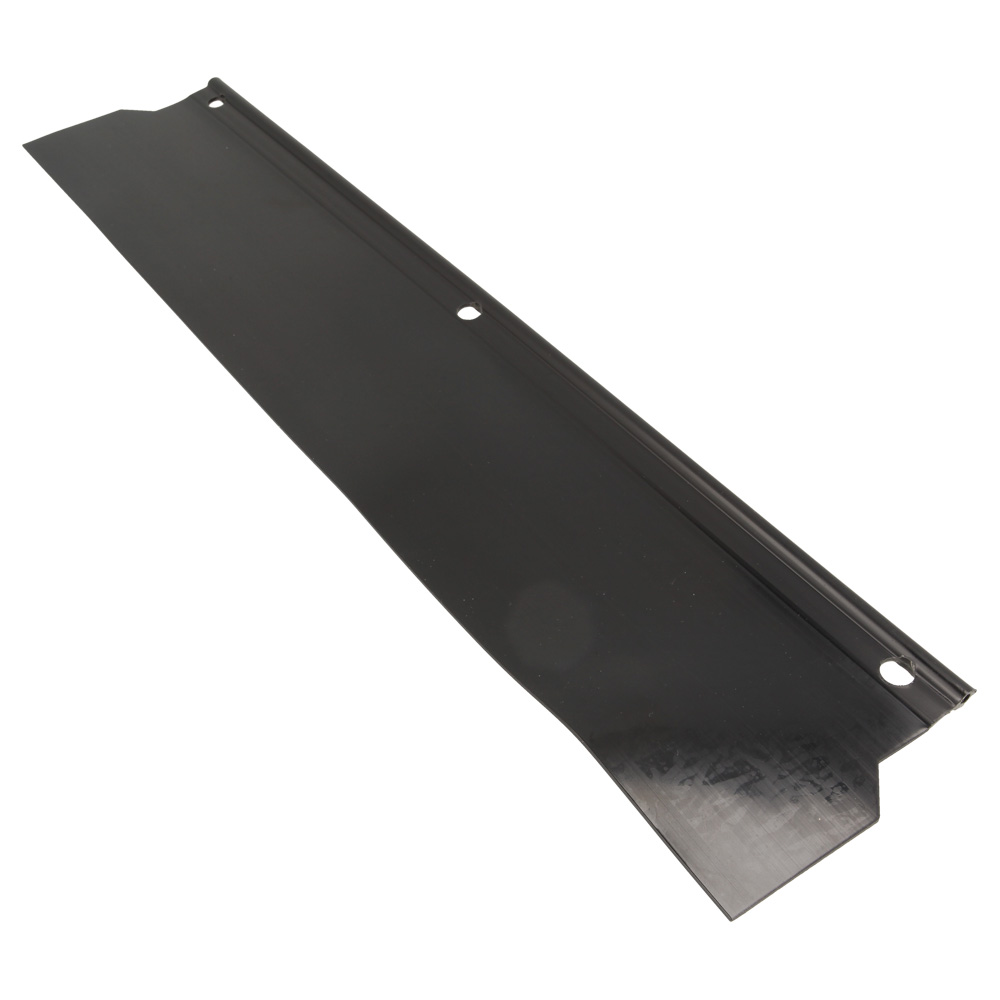

47	EG3134857001 Available to backorder	Trail Shield	£8.96 £7.47

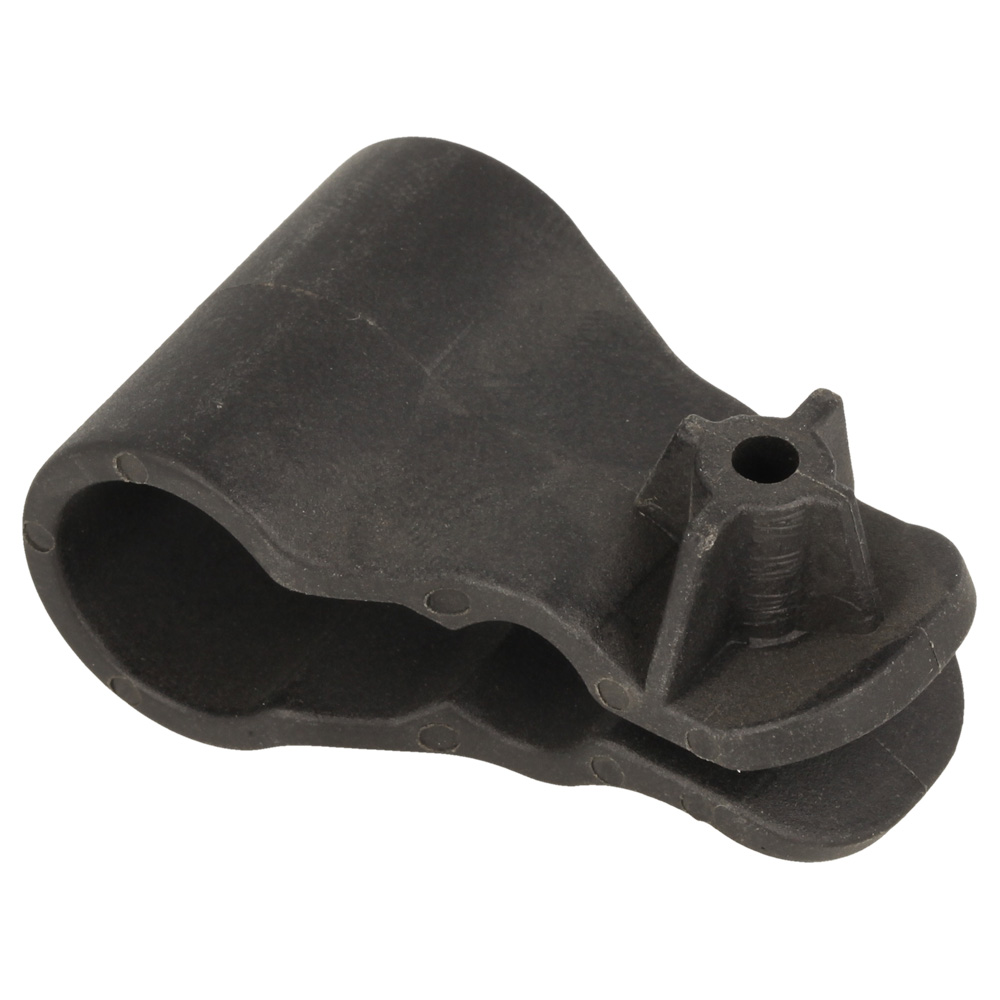

48	EG3129770001 Available to backorder	Bevel Support	£0.54 £0.45
49	EG3668048001 Available to backorder	Torsion Spring	£4.62 £3.85
50	EG3403524001 Available to backorder	Lock Button	£6.22 £5.18
51	EG2850181001 Available to backorder	Bag Frame Assembly	£39.48 £32.90
52	EG3800246002 Available to backorder	Grass Catcher	£36.83 £30.69
53	EG3134868001 Available to backorder	Base	£22.97 £19.14
54	EG5620511004 Available to backorder	Hexagon Socket Screw	£0.90 £0.75
55	EG3667942001 Available to backorder	Tension Spring	£11.47 £9.56
56	EG3706726001 Available to backorder	Spring Seat	£1.16 £0.97
57	EG2832058001 Available to backorder	Power Control Electric Assembly	£44.74 £37.28
58	EG2832078001 Available to backorder	Self-Propelled Control Electric Assembly	£68.78 £57.32
59	EG2832002002 Available to backorder	Bms Electric Assembly	£103.16 £85.97
60	EG3680390001 Available to backorder	Magnet Ring	£25.91 £21.59
61	EG2850092001 Available to backorder	Support Plate Assembly	£12.79 £10.66
62	EG3134887001 Available to backorder	Service Cover	£17.24 £14.37
63	EG2831845001 Available to backorder	Hall Electric Assembly	£17.93 £14.94
64	EG3680389001 Available to backorder	Magnet Ring	£7.88 £6.57
65	EG2832106001 Available to backorder	Electric Assembly	£154.76 £128.97
66	EG2850595001 Available to backorder	Left Dust Cover Assembly	£13.97 £11.64
67	EG2850594001 Available to backorder	Right Dust Cover Assembly	£9.65 £8.04
68	EG5611280001 Available to backorder	Hexalobular Socket Screw	£0.90 £0.75
69	EG3134891001 Available to backorder	Battery Box	£30.17 £25.14
70	EG2850590002 Available to backorder	Battery Box Cover Assembly	£24.67 £20.56
71	EG2730413001 Available to backorder	Dc Motor	£206.36 £171.97
72	EG3403523001 Available to backorder	Motor Support	£22.50 £18.75
73	EG5640217004 Available to backorder	Bolt And Washer Set	£0.86 £0.72
74	EG5610868001 Available to backorder	Hexagon Socket Button Head Screw	£0.90 £0.75
75	EG5660139002 Available to backorder	E Ring	£1.00 £0.83
76	EG3700352002 Available to backorder	Washer	£0.90 £0.75
77	EG2850614001 Available to backorder	Right Supporting Plate Assembly	£29.62 £24.68
78	EG2246063005 Available to backorder	Nameplate	£3.46 £2.88
79	EG2246063006 Available to backorder	Nameplate	£3.46 £2.88
80	EG2244424003 Available to backorder	Nameplate	£3.46 £2.88
81	EG2246060002 Available to backorder	Warning Nameplate	£3.46 £2.88
82	EG2246059003 Available to backorder	Nameplate	£3.46 £2.88
83	EG2246074002 Available to backorder	Nameplate	£4.62 £3.85
84	EG5690681001 Available to backorder	Felt Ring	£5.24 £4.37
85	EG3680388001 Available to backorder	Magnet Ring	£15.90 £13.25
201	EG2850460003 Available to backorder	Handle Assembly	£206.36 £171.97
202	EG2850511001 Available to backorder	Self-Propelled Unit	£137.57 £114.64
203	EG2850596002 Available to backorder	Top Cover Assembly	£46.50 £38.75
204	EG2851352001 Available to backorder	Front Axle Set	£39.73 £33.11
205	EG3134964004 Available to backorder	Rear Cover	£24.88 £20.73
206	EG3423516003 Available to backorder	Deck	£447.11 £372.59
