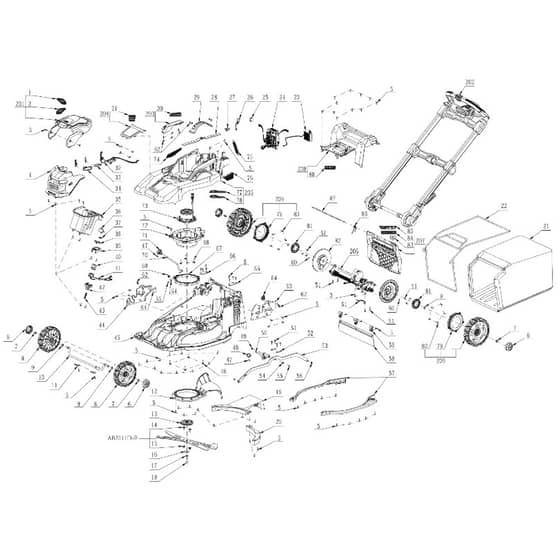

EGO LM2230E-SP Lawnmower (Feb 2025) Rotary Mower Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	EG2246383002 Available to backorder	Nameplate	£3.22 £2.68
3	EG5610893001 Available to backorder	Hexalobular Socket Pan Hea	£0.90 £0.75
4	EG2852060001 Available to backorder	Front Cover Assembly	£14.90 £12.42
5	EG5620157006 Available to backorder	Hexagon Socket Screw	£0.47 £0.39
6	EG3131636001 Available to backorder	Wheel Hub Cover	£1.79 £1.49
7	EG5640010003 Available to backorder	Hexagon Flange Bolt	£0.64 £0.53
8	EG2851212001 Available to backorder	Front Wheel Assembly	£19.88 £16.57
9	EG5650453001 Available to backorder	Wave Washer	£0.47 £0.39
10	EG2851192001 Available to backorder	Front Axle Set	£16.64 £13.87
11	EG3705216001 Available to backorder	Mounting Plate	£0.78 £0.65
12	EG2852152001 Available to backorder	Sliding Block Assembly	£23.53 £19.61
13	EG3403110001 Available to backorder	Fan	£4.72 £3.93
14	EG5640538001 Available to backorder	Mushroom Head Square Ne	£3.07 £2.56
15	EG5630543001 Available to backorder	Prevailing Torque Type Hexa	£2.63 £2.19
16	EG5650705002 Available to backorder	Washer	£2.75 £2.29
17	EG5651174001 Available to backorder	Conical Spring Washer	£2.93 £2.44
18	EG5640630001 Available to backorder	Flange Bolt	£3.60 £3.00
19	EG3136096001 Available to backorder	Rear Enclosure	£9.19 £7.66
20	EG3136095001 Available to backorder	Support Base	£5.45 £4.54
21	EG3800246004 Available to backorder	Grass Catcher	£34.99 £29.16
22	EG3709186001 Available to backorder	Bag Frame	£26.80 £22.33
23	EG2832289001 Available to backorder	Self-Propelled Control Electr	£73.66 £61.38
24	EG2832365001 Available to backorder	Main Electric Assembly	£187.36 £156.13
25	EG3680389001 Available to backorder	Magnet Ring	£7.88 £6.57
26	EG2826165004 Available to backorder	Switch Assembly	£8.36 £6.97
27	EG3706726001 Available to backorder	Spring Seat	£1.16 £0.97
28	EG2851421001 Available to backorder	Dust Board Assembly	£4.14 £3.45
29	EG3709646001 Available to backorder	Depth Stop Plate	£9.19 £7.66
30	EG2246380001 Available to backorder	Nameplate	£2.16 £1.80
31	EG2246382001 Available to backorder	Nameplate	£3.07 £2.56
32	EG2852061001 Available to backorder	Led Holder Assembly	£18.79 £15.66
33	EG3901055001 Available to backorder	L R Transparent Cover Set	£2.78 £2.32
34	EG3901056001 Available to backorder	L R Bracket Set	£2.93 £2.44
35	EG3403694001 Available to backorder	Battery Box	£17.78 £14.82
36	EG3126760001 Available to backorder	Release Button	£1.02 £0.85
37	EG3660303002 Available to backorder	Spring	£0.78 £0.65
38	EG3126772001 Available to backorder	Sliding Block	£0.59 £0.49
39	EG3131425001 Available to backorder	Support Base	£0.85 £0.71
40	EG3131427001 Available to backorder	Sliding Block	£0.53 £0.44
41	EG3403696001 Available to backorder	Connecting Seat Wire Assem	£4.74 £3.95
42	EG3131426001 Available to backorder	Supporting Structure	£0.76 £0.63
43	EG3660979001 Available to backorder	Compression Spring	£0.97 £0.81
44	EG3709600001 Available to backorder	Right Supporting Plate	£15.36 £12.80
45	EG3136225001 Available to backorder	Deck	£137.82 £114.85
46	EG5640217003 Available to backorder	Bolt And Washer Set	£0.80 £0.67
47	EG5620065004 Available to backorder	Screw	£0.48 £0.40
48	EG3323843001 Available to backorder	Height Adjusting Lever	£4.25 £3.54
49	EG5670814001 Available to backorder	Pin Shaft	£1.79 £1.49
50	EG2851659001 Available to backorder	Adjusting Handle Set	£14.90 £12.42
51	EG5620480002 Available to backorder	Screw	£0.80 £0.67
52	EG3705398001 Available to backorder	Mounting Plate	£0.59 £0.49
53	EG2851210001 Available to backorder	Connecting Rod Assembly	£17.93 £14.94
54	EG5650025004 Available to backorder	Plain Washer	£0.48 £0.40
55	EG5660139002 Available to backorder	E Ring	£1.00 £0.83
56	EG5630013003 Available to backorder	Prevailing Torque Hexagon N	£0.38 £0.32
57	EG3901058001 Available to backorder	L R Cover Set	£10.16 £8.47
58	EG3134857001 Available to backorder	Trail Shield	£8.96 £7.47
59	EG3129770001 Available to backorder	Bevel Support	£0.54 £0.45
60	EG5620067010 Available to backorder	Screw	£0.80 £0.67
61	EG3710035001 Available to backorder	Earth Plate	£3.22 £2.68
62	EG5620377003 Available to backorder	Hexagon Socket Screw	£0.13 £0.11
63	EG3709601001 Available to backorder	Left Supporting Plate	£15.05 £12.54
64	EG3134881001 Available to backorder	Bottom Board	£1.73 £1.44
65	EG3710018001 Available to backorder	Left Fixing Block	£2.63 £2.19
66	EG3706195001 Available to backorder	Right Fixing Block	£1.70 £1.42
67	EG2851645001 Available to backorder	Sliding Block Assemb	£10.08 £8.40
68	EG5640217004 Available to backorder	Bolt And Washer Set	£0.86 £0.72
69	EG3668051001 Available to backorder	Torsion Spring	£1.62 £1.35
70	EG2851118001 Available to backorder	Adjusting Lever Set	£9.19 £7.66
71	EG3323948001 Available to backorder	Adjusting Handle	£3.90 £3.25
72	EG3403667001 Available to backorder	Motor Support	£19.00 £15.83
73	EG2730412001 Available to backorder	Dc Motor	£160.02 £133.35
74	EG3136275001 Available to backorder	Right Fan Baffle	£2.93 £2.44
75	EG3668093001 Available to backorder	Tension Spring	£5.99 £4.99
76	EG3136274001 Available to backorder	Left Fan Baffle	£2.93 £2.44
77	EG2246384002 Available to backorder	Nameplate	£2.30 £1.92
78	EG2246385002 Available to backorder	Nameplate	£2.16 £1.80
79	EG3128957001 Available to backorder	Ring Gear	£5.45 £4.54
80	EG5610042014 Available to backorder	Tapping Screw	£0.48 £0.40
81	EG3520933001 Available to backorder	Gear	£3.06 £2.55
82	EG3128946001 Available to backorder	Protecting Cap	£4.91 £4.09
83	EG2244424001 Available to backorder	Nameplate	£2.05 £1.71
84	EG2246060005 Available to backorder	Warning Nameplate	£3.07 £2.56
85	EG2246059006 Available to backorder	Warning Nameplate	£2.16 £1.80
86	EG3668002001 Available to backorder	Torsion Spring	£2.78 £2.32
87	EG5670757001 Available to backorder	Shaft	£5.78 £4.82
88	EG2246386001 Available to backorder	Nameplate	£1.43 £1.19
201	EG2851636002 Available to backorder	Battery Box Cover Assembly	£25.54 £21.28
202	EG2851685004 Available to backorder	Handle Assembly	£246.48 £205.40
203	EG2851674002 Available to backorder	Middle Cover Assembly	£12.53 £10.44
204	EG3136279002 Available to backorder	Decorative Cover	£9.46 £7.88
205	EG2851675003 Available to backorder	Top Cover Assembly	£37.20 £31.00
206	EG2851663001 Available to backorder	Self-Propelled Unit	£124.10 £103.42
207	EG3134964007 Available to backorder	Rear Cover	£23.80 £19.83
208	EG2851638002 Available to backorder	Service Cover Assembly	£21.11 £17.59
209	EG2829041002 Available to backorder	Rear Wheel Assembly	£21.83 £18.19
