EGO LM2100E-SP - Lawnmower (Jan 2022) Main Assy Diagram

Description

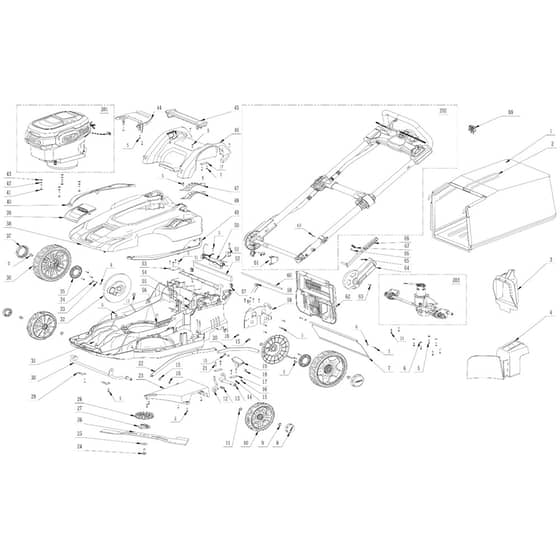

EGO LM2100E-SP Lawnmower (Jan 2022) Rotary Mower Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG3800074001 Available to backorder	Grass Catcher	£40.46 £33.72
2	EG3705442002 Available to backorder	Bag Frame	£19.67 £16.39
3	EG3127911001 Available to backorder	Side Discharge Chute	£8.53 £7.11
4	EG3127924001 Available to backorder	Mulch Plug	£15.55 £12.96
5	EG5610042014 Available to backorder	Tapping Screw	£0.48 £0.40
6	EG5650004001 Available to backorder	Plain Washer	£0.48 £0.40
7	EG3126391001 Available to backorder	Trail Shield	£8.02 £6.68
8	EG3126769001 Available to backorder	Hubcap	£0.83 £0.69
9	EG5640010003 Available to backorder	Hexagon Flange Bolt	£0.64 £0.53
10	EG2824429001 Available to backorder	Wheel Assembly	£16.54 £13.78
11	EG5650453001 Available to backorder	Wave Washer	£0.47 £0.39
12	EG2823295001 Available to backorder	Handle Lever Set	£5.05 £4.21
13	EG3660558001 Available to backorder	Tension Spring	£1.42 £1.18
14	EG2823322001 Available to backorder	Shaft Assy	£6.31 £5.26
15	EG5650025004 Available to backorder	Plain Washer	£0.48 £0.40
16	EG5660139002 Available to backorder	E Ring	£1.00 £0.83
17	EG3705398001 Available to backorder	Mounting Plate	£0.59 £0.49
18	EG5620065004 Available to backorder	Screw	£0.48 £0.40
19	EG3321478001 Available to backorder	Height Adjusting Lever	£3.88 £3.23
20	EG3705142001 Available to backorder	Connecting Rod	£3.54 £2.95
21	EG5610044002 Available to backorder	Tapping Screw	£0.48 £0.40
22	EG2823296001 Available to backorder	Connecting Rod Set	£9.38 £7.82
23	EG3127925001 Available to backorder	Rear Enclosure	£12.24 £10.20
24	EG5640226001 Available to backorder	Flange Bolt	£1.70 £1.42
25	EG5650510001 Available to backorder	Washer	£1.46 £1.22
26	EG3706059001 Available to backorder	Blade	£24.50 £20.42
27	EG3520852002 Available to backorder	Motor Bushing	£8.16 £6.80
28	EG3127847001 Available to backorder	Fan	£6.47 £5.39
29	EG3705216001 Available to backorder	Mounting Plate	£0.78 £0.65
30	EG2824194001 Available to backorder	Front Axle Set	£19.20 £16.00
31	EG3127932001 Available to backorder	Deck	£99.12 £82.60
32	EG3127923001 Available to backorder	Protecting Cap	£4.13 £3.44
33	EG5650007001 Available to backorder	Spring Washer	£0.48 £0.40
34	EG5620041006 Available to backorder	Screw	£0.48 £0.40
35	EG3520933001 Available to backorder	Gear	£3.06 £2.55
36	EG2824430001 Available to backorder	Wheel Assembly	£20.40 £17.00
37	EG3126765001 Available to backorder	Hubcap	£1.36 £1.13
38	EG3127975001 Available to backorder	Housing Cover	£57.24 £47.70
39	EG3127974001 Available to backorder	Decorative Cover	£2.34 £1.95
40	EG3127939001 Available to backorder	Right Cover	£3.79 £3.16
41	EG5640008003 Available to backorder	Hexagon Head Bolt	£0.48 £0.40
42	EG5650168002 Available to backorder	Spring Washer	£0.48 £0.40
43	EG3700076001 Available to backorder	Plate	£0.53 £0.44
44	EG3127892001 Available to backorder	Service Cover	£2.87 £2.39
45	EG3127976001 Available to backorder	Auxiliary Handle	£5.74 £4.78
46	EG3127926001 Available to backorder	Service Cover	£23.57 £19.64
47	EG3705896001 Available to backorder	Depth Stop Plate	£5.05 £4.21
48	EG3128083001 Available to backorder	Rubber Pad	£1.94 £1.62
49	EG3127940001 Available to backorder	Left Cover	£4.03 £3.36
50	EG2830076003 Available to backorder	Electric Assembly	£99.12 £82.60
51	EG3700353001 Available to backorder	Washer	£0.48 £0.40
52	EG3706018001 Available to backorder	Spongy Cushion	£3.01 £2.51
53	EG3705440001 Available to backorder	Clamp	£1.42 £1.18
54	EG5610047003 Available to backorder	Tapping Screw	£0.48 £0.40
55	EG3705397001 Available to backorder	Clamp	£0.67 £0.56
56	EG3660557001 Available to backorder	Tension Spring	£6.12 £5.10
57	EG3127738001 Available to backorder	Rubber Gasket	£0.83 £0.69
58	EG2824383001 Available to backorder	Fixed Set	£16.03 £13.36
59	EG3660559001 Available to backorder	Torsion Spring	£2.62 £2.18
60	EG5670345001 Available to backorder	Shaft	£2.96 £2.47
61	EG4870566002 Available to backorder	Push Switch	£26.87 £22.39
62	EG3126689003 Available to backorder	Rear Cover	£12.73 £10.61
63	EG5610032004 Available to backorder	Tapping Screw	£0.48 £0.40
64	EG3126912001 Available to backorder	Decorate Cover	£5.74 £4.78
65	EG5660003003 Available to backorder	E Ring	£0.48 £0.40
66	EG3550048003 Available to backorder	Pin	£0.97 £0.81
67	EG3660565001 Available to backorder	Compression Spring	£1.02 £0.85

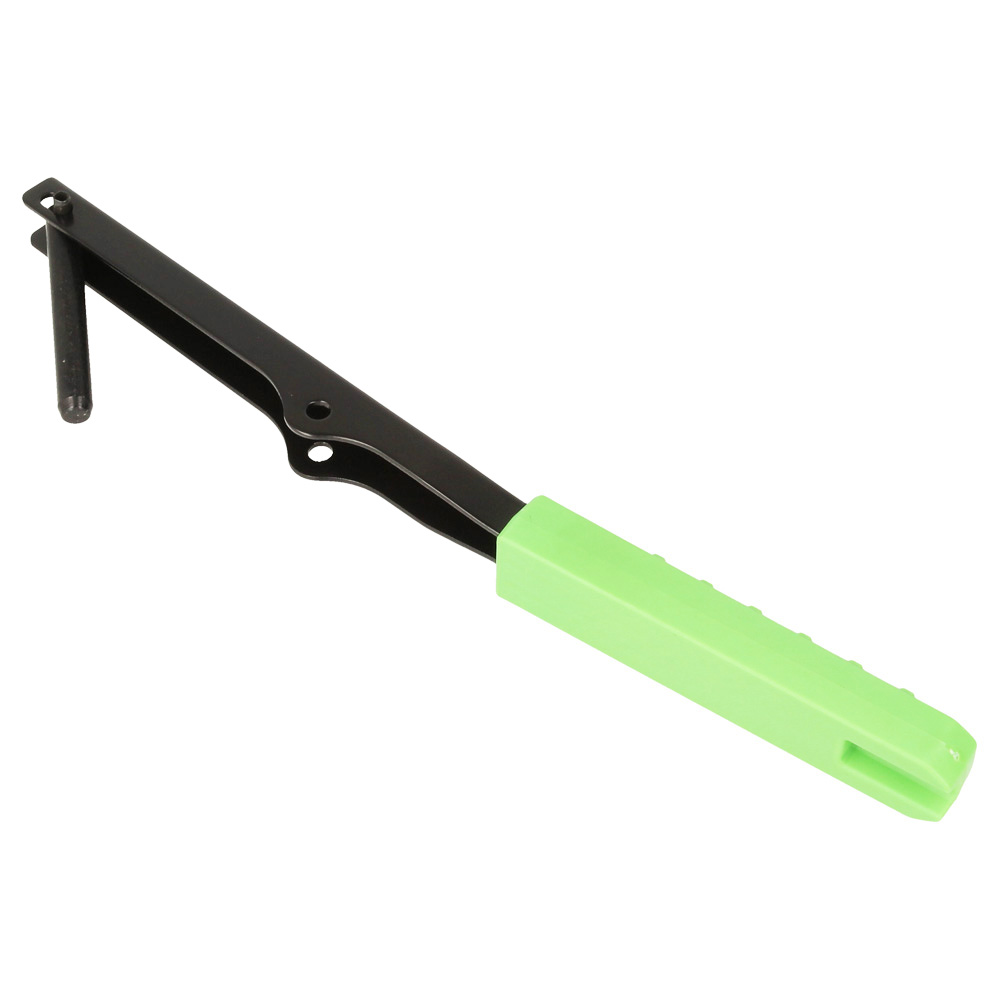

68	EG2824250001 Available to backorder	Handle Lever Set	£5.40 £4.50
69	EG5680196001 In stock	Key	£5.04 £4.20
201	EG2824248002 Available to backorder	Power Unit	£303.48 £252.90
202	EG2824304001 Available to backorder	Handle Assy	£197.48 £164.57
203	EG2824280002 Available to backorder	Self-Propelled Unit	£199.20 £166.00
