EGO LM2020E-SP - Lawnmower (Version B) Power Unit Diagram

EGO LM2020E-SP - Lawnmower (Version B) Power Unit Diagram
EGO LM2020E-SP - Lawnmower (Version B) Power Unit Diagram

Description

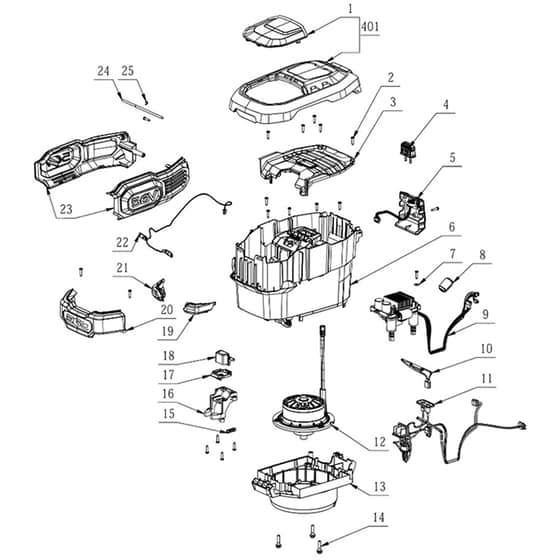

EGO LM2020E-SP Lawnmower (Version B) (ELM08191009911X- ) (Jan 2022) Rotary Mower Power Unit Parts Diagram

Ref. Img. Part No. Details
  1 Transparent Guard
Transparent Guard
EG3127900001
Available to backorder
Transparent Guard
£3.94 £3.28

  2 Tapping Screw
Tapping Screw
EG5610042014
Available to backorder
Tapping Screw
£0.48 £0.40

  3 Inner Cover
Inner Cover
EG3127879001
Available to backorder
Inner Cover
£4.86 £4.05

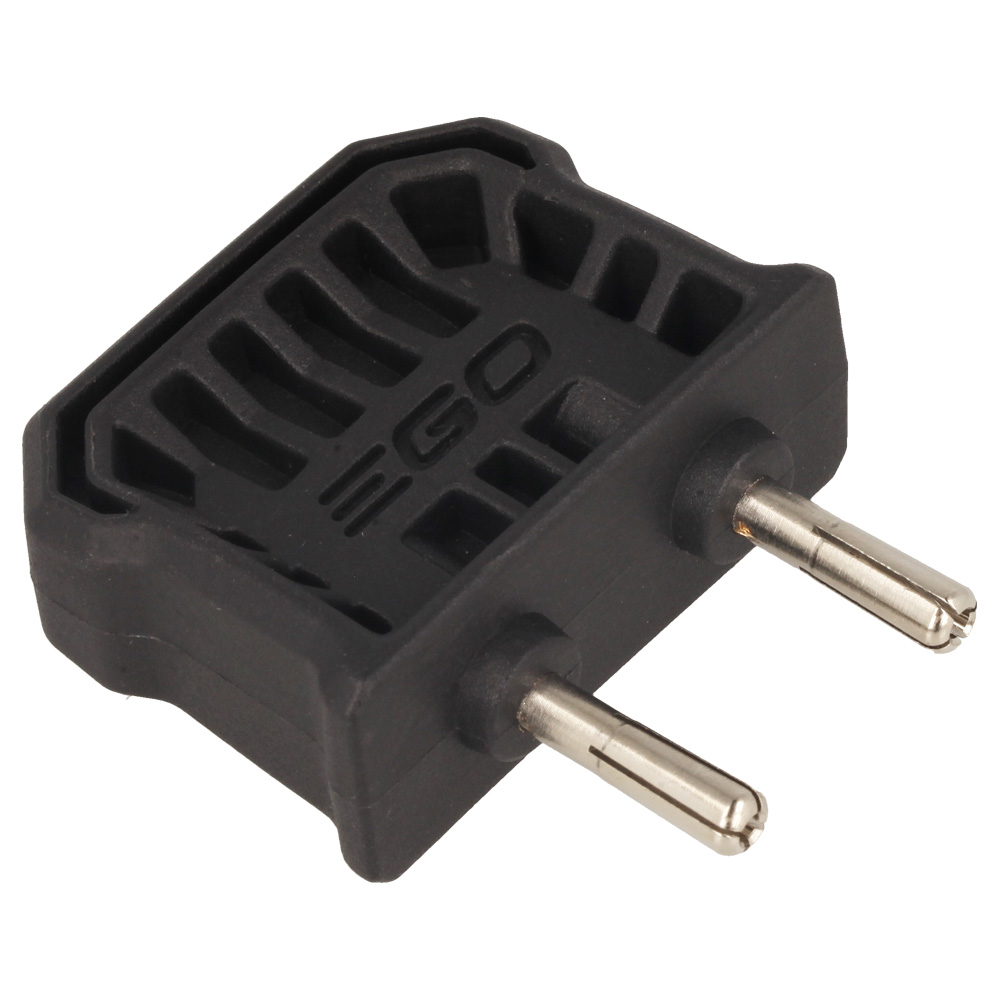

  4 Key
Key
EG5680196001
In stock
Key
£5.04 £4.20

  5 Led Cover Assy
Led Cover Assy
EG2825833001
Available to backorder
Led Cover Assy
£21.90 £18.25

  6 Battery Box Assy
Battery Box Assy
EG2825623001
Available to backorder
Battery Box Assy
£37.16 £30.97

  7 Plain Washer
Plain Washer
EG5650004001
Available to backorder
Plain Washer
£0.48 £0.40

  8 Magnetic Block
Magnetic Block
EG3680226001
Available to backorder
Magnetic Block
£2.34 £1.95

  9 Electric Assembly
Electric Assembly
EG2830176002
Available to backorder
Electric Assembly
£178.44 £148.70

  10 Pcb Assembly
Pcb Assembly
EG2830216001
Available to backorder
Pcb Assembly
£8.26 £6.88

  11 Electric Assembly
Electric Assembly
EG2830201002
Available to backorder
Electric Assembly
£44.89 £37.41

  12 Dc Motor
Dc Motor
EG2730252001
Available to backorder
Dc Motor
£177.02 £147.52

  13 Base Assembly
Base Assembly
EG2825644001
Available to backorder
Base Assembly
£25.88 £21.57

  14 Bolt And Washer Set
Bolt And Washer Set
EG5640217002
Available to backorder
Bolt And Washer Set
£0.80 £0.67

  15 Spring
Spring
EG3660303002
Available to backorder
Spring
£0.78 £0.65

  16 Fixed Unit
Fixed Unit
EG3126782001
Available to backorder
Fixed Unit
£1.79 £1.49

  17 Sliding Block
Sliding Block
EG3126772001
Available to backorder
Sliding Block
£0.59 £0.49

  18 Release Button
Release Button
EG3126760001
Available to backorder
Release Button
£1.02 £0.85

  19 Left Transparent Cap Assy
Left Transparent Cap Assy
EG2824936001
Available to backorder
Left Transparent Cap Assy
£4.01 £3.34

  20 Front Cover Assy
Front Cover Assy
EG2824901002
Available to backorder
Front Cover Assy
£3.91 £3.26

  21 Right Transparent Cap Assy
Right Transparent Cap Assy
EG2824935001
Available to backorder
Right Transparent Cap Assy
£4.01 £3.34

  22 Electric Assembly
Electric Assembly
EG2830182001
Available to backorder
Electric Assembly
£12.24 £10.20

  23 Decorative Cover Assy
Decorative Cover Assy
EG3900068001
Available to backorder
Decorative Cover Assy
£8.06 £6.72

  24 Pin
Pin
EG5670380001
Available to backorder
Pin
£1.90 £1.58

  25 E Ring
E Ring
EG5660003003
Available to backorder
E Ring
£0.48 £0.40

  401 Battery Cover Assy
Battery Cover Assy
EG2824902001
Available to backorder
Battery Cover Assy
£17.40 £14.50


Description

EGO LM2020E-SP Lawnmower (Version B) (ELM08191009911X- ) (Jan 2022) Rotary Mower Power Unit Parts Diagram
