EGO LM2020E - Lawnmower (Jan 2022) Handle Assy Diagram

Description

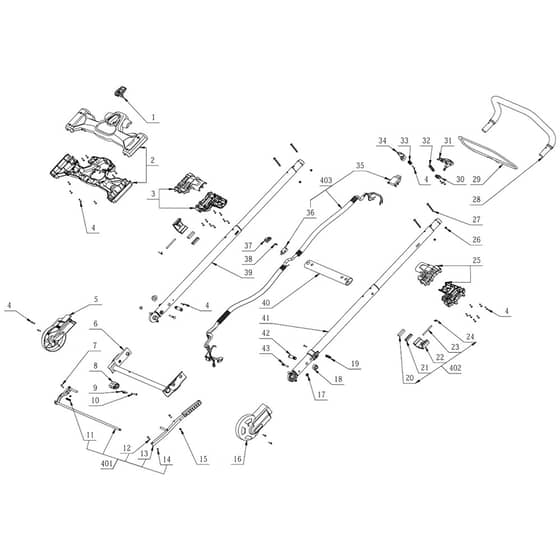

EGO LM2020E Lawnmower (Jan 2022) Rotary Mower Handle Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG3127929001 Available to backorder	Button	£0.72 £0.60
2	EG2824422001 Available to backorder	Switch Box Set	£17.05 £14.21
3	EG2824426001 Available to backorder	Right Cover Set	£8.98 £7.48
4	EG5610294001 Available to backorder	Tapping Screw	£0.48 £0.40
5	EG3128648001 Available to backorder	Decorative Cover	£4.46 £3.72
6	EG2824717001 Available to backorder	Spindle Assy	£17.98 £14.98
7	EG3550048003 Available to backorder	Pin	£0.97 £0.81
8	EG3127087001 Available to backorder	Switch Lever	£0.64 £0.53
9	EG3128687001 Available to backorder	Lock Cover	£0.34 £0.28
10	EG5610276001 Available to backorder	Hexagon Lobular Tapping Screw	£0.48 £0.40
11	EG3660076005 Available to backorder	Spring	£0.34 £0.28
12	EG5670248001 Available to backorder	Pin	£1.07 £0.89
13	EG2825244001 Available to backorder	Handle Lever Set	£8.94 £7.45
14	EG5660001003 Available to backorder	E Ring	£0.48 £0.40
15	EG5660245001 Available to backorder	E Ring	£0.13 £0.11
16	EG3128647001 Available to backorder	Decorative Cover	£4.37 £3.64
17	EG5630013003 Available to backorder	Prevailing Torque Hexagon Nut	£0.38 £0.32
18	EG5630268001 Available to backorder	Nut	£0.64 £0.53
19	EG3660565001 Available to backorder	Compression Spring	£1.02 £0.85
20	EG3126832001 Available to backorder	Rubber Block	£0.72 £0.60
21	EG3126761001 Available to backorder	Clamp Block	£0.48 £0.40
22	EG3126790002 Available to backorder	Control Handle	£2.27 £1.89
23	EG5670191002 Available to backorder	Parallel Pin	£0.78 £0.65
24	EG3660568001 Available to backorder	Torsion Spring	£0.48 £0.40
25	EG2824427001 Available to backorder	Left Cover Set	£8.94 £7.45
26	EG5630006002 Available to backorder	Prevailing Torque Hexagon Nut	£0.48 £0.40
27	EG5610064005 Available to backorder	Thread Forming Screw	£0.38 £0.32
28	EG2823782001 Available to backorder	Sheath Assy	£17.39 £14.49
29	EG2824118001 Available to backorder	Control Handle Assy	£15.50 £12.92
30	EG3126763001 Available to backorder	Clamp	£0.38 £0.32
31	EG3127908001 Available to backorder	Switch Lever	£1.42 £1.18
32	EG3660562001 Available to backorder	Compression Spring	£0.83 £0.69
33	EG3660814001 Available to backorder	Compression Spring	£0.67 £0.56
34	EG3127905001 Available to backorder	Switch Actuator	£0.53 £0.44
35	EG4870566001 Available to backorder	Push Switch	£19.81 £16.51
36	EG4870500001 Available to backorder	Micro Switch	£3.68 £3.07
37	EG3126768001 Available to backorder	Switch Actuator	£0.34 £0.28
38	EG3660287002 Available to backorder	Spring	£0.48 £0.40
39	EG2827492001 Available to backorder	Right Telescope Tube Assembly	£28.73 £23.94
40	EG3705393001 Available to backorder	Intermedium Tube	£13.55 £11.29
41	EG2827491001 Available to backorder	Left Telescope Tube Assembly	£28.73 £23.94
42	EG3551952001 Available to backorder	Sleeve	£6.66 £5.55
43	EG5640168001 Available to backorder	Square Neck Bolt	£0.48 £0.40
401	EG2827463001 Available to backorder	Lock Assembly	£20.26 £16.88
402	EG2823714002 Available to backorder	Control Handle Set	£3.24 £2.70
403	EG2824755002 Available to backorder	Switch Assembly	£53.86 £44.88
