EGO LM2010E-SP - Lawnmower (Jan 2022) Main Assy Diagram

Description

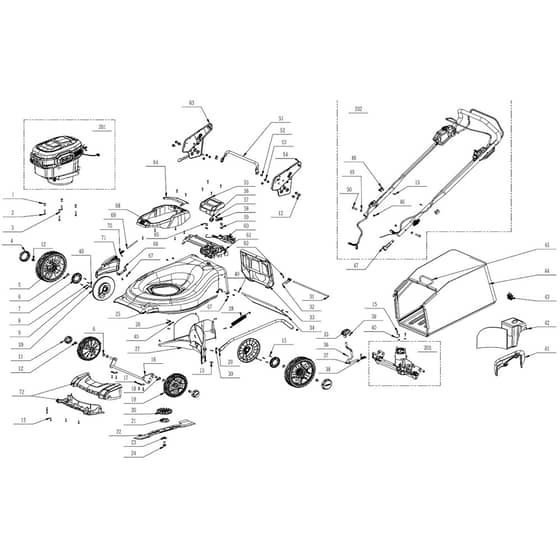

EGO LM2010E-SP Lawnmower (Jan 2022) Rotary Mower Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG3700076001 Available to backorder	Plate	£0.53 £0.44
2	EG5640008003 Available to backorder	Hexagon Head Bolt	£0.48 £0.40
3	EG5650168001 Available to backorder	Spring Washer	£0.48 £0.40
4	EG3126765001 Available to backorder	Hubcap	£1.36 £1.13
5	EG2824430001 Available to backorder	Wheel Assembly	£20.40 £17.00
6	EG5650453001 Available to backorder	Wave Washer	£0.47 £0.39
7	EG3520933001 Available to backorder	Gear	£3.06 £2.55
8	EG5620041006 Available to backorder	Screw	£0.48 £0.40
9	EG5650007007 Available to backorder	Spring Washer	£0.48 £0.40
10	EG3127923001 Available to backorder	Protecting Cap	£4.13 £3.44
11	EG3126769001 Available to backorder	Hubcap	£0.83 £0.69
12	EG5640010003 Available to backorder	Hexagon Flange Bolt	£0.64 £0.53
15	EG5620157006 Available to backorder	Tapping Screw	£0.47 £0.39
16	EG2824348001 Available to backorder	Front Axle Set	£29.51 £24.59
17	EG3705216001 Available to backorder	Mounting Plate	£0.78 £0.65
18	EG5650032003 Available to backorder	Plain Washer	£0.44 £0.37
19	EG2824429001 Available to backorder	Wheel Assembly	£16.54 £13.78
20	EG3127847001 Available to backorder	Fan	£6.47 £5.39
21	EG3520852002 Available to backorder	Motor Bushing	£8.16 £6.80
22	EGAB2001 Available to backorder	Blade	£26.82 £22.35
23	EG5650510001 Available to backorder	Washer	£1.46 £1.22
24	EG5640226001 Available to backorder	Flange Bolt	£1.70 £1.42
25	EG3705890001 Available to backorder	Deck	£126.84 £105.70
26	EG5680200001 Available to backorder	Rivet	£0.48 £0.40
27	EG3127956001 Available to backorder	Rear Enclosure	£26.87 £22.39
28	EG3660609001 Available to backorder	Tension Spring	£6.12 £5.10
29	EG2824128001 Available to backorder	Connecting Rod Assy	£12.59 £10.49
30	EG5630013003 Available to backorder	Prevailing Torque Hexagon Nut	£0.38 £0.32
31	EG5670382001 Available to backorder	Shaft	£2.96 £2.47
32	EG3660559001 Available to backorder	Torsion Spring	£2.62 £2.18
33	EG3127944001 Available to backorder	Rear Cover	£12.68 £10.57
34	EG3128114001 Available to backorder	Trail Shield	£6.36 £5.30
35	EG3126410001 Available to backorder	Height Adjusting Lever	£1.64 £1.37
36	EG5670184002 Available to backorder	Pin	£0.53 £0.44
37	EG2824126001 Available to backorder	Height Adjusting Bar Assy	£7.00 £5.83
40	EG5650004001 Available to backorder	Plain Washer	£0.48 £0.40
38	EG3660606001 Available to backorder	Torsion Spring	£1.42 £1.18
41	EG3127950001 Available to backorder	Side Discharge Chute	£10.20 £8.50
39	EG5620033005 Available to backorder	Screw	£0.48 £0.40
42	EG3127949001 Available to backorder	Mulch Plug	£15.55 £12.96
43	EG5680196001 In stock	Key	£5.04 £4.20
44	EG3800110001 Available to backorder	Grass Catcher	£40.00 £33.33
45	EG3650172001 Available to backorder	Bag Frame	£28.43 £23.69
46	EG5630060004 Available to backorder	Hexagon Nut	£0.48 £0.40
47	EG3126580001 Available to backorder	Switch Lever	£1.12 £0.93
48	EG3126639001 Available to backorder	Wire Holder	£0.59 £0.49
49	EG3700095002 Available to backorder	Washer	£0.48 £0.40
50	EG5640228001 Available to backorder	Screw	£3.65 £3.04
51	EG2824349001 Available to backorder	Handle Assy	£8.89 £7.41
52	EG5620369004 Available to backorder	Screw	£0.48 £0.40
53	EG5630271001 Available to backorder	Nut	£0.48 £0.40
54	EG2824125001 Available to backorder	Right Support Assy	£20.02 £16.68
55	EG3126337001 Available to backorder	Motor Top Cover	£6.47 £5.39
56	EG4870541002 Available to backorder	Push Switch	£13.13 £10.94
57	EG3660076001 Available to backorder	Spring	£0.48 £0.40
58	EG3126641001 Available to backorder	Rotating Block	£0.48 £0.40
59	EG3122798001 Available to backorder	Cord Anchorage	£0.48 £0.40
60	EG2830076002 Available to backorder	Electric Assembly	£99.12 £82.60
61	EG3127954001 Available to backorder	Rear Cover	£6.47 £5.39
62	EG5660139002 Available to backorder	E Ring	£1.00 £0.83
63	EG2824134001 Available to backorder	Left Support Assy	£20.02 £16.68
64	EG3127947001 Available to backorder	Service Cover	£1.90 £1.58
65	EG5610032004 Available to backorder	Tapping Screw	£0.48 £0.40
66	EG3705862001 Available to backorder	Bevel Support	£2.82 £2.35
67	EG5620213003 Available to backorder	Hexagon Socket Screw	£0.47 £0.39
68	EG3127951001 Available to backorder	Housing Cover	£6.80 £5.67
69	EG5670384001 Available to backorder	Pin	£2.04 £1.70
70	EG3660607001 Available to backorder	Torsion Spring	£2.00 £1.67
71	EG3127965001 Available to backorder	Guard	£5.83 £4.86
72	EG2824527001 Available to backorder	Top Cover Assy	£16.52 £13.77
201	EG2824248003 Available to backorder	Power Unit	£286.68 £238.90
202	EG2824262001 Available to backorder	Handle Assy	£125.68 £104.73
203	EG2824283001 Available to backorder	Self-Propelled Unit	£197.28 £164.40
