EGO LM2010E - Lawnmower (Jan 2022) Main Assy Diagram

Description

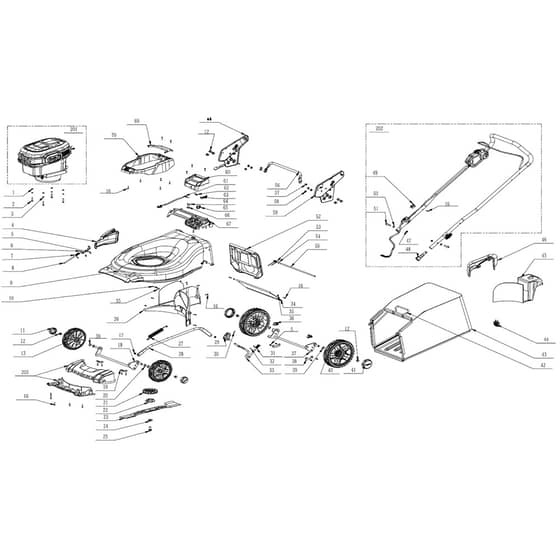

EGO LM2010E Lawnmower (Jan 2022) Rotary Mower Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG3700076001 Available to backorder	Plate	£0.53 £0.44
2	EG5640008003 Available to backorder	Hexagon Head Bolt	£0.48 £0.40
3	EG5650168001 Available to backorder	Spring Washer	£0.48 £0.40
4	EG3127965001 Available to backorder	Guard	£5.83 £4.86
5	EG5620213003 Available to backorder	Hexagon Socket Screw	£0.47 £0.39
6	EG3705862001 Available to backorder	Bevel Support	£2.82 £2.35
7	EG3660607001 Available to backorder	Torsion Spring	£2.00 £1.67
8	EG5670384001 Available to backorder	Pin	£2.04 £1.70
9	EG3705890001 Available to backorder	Deck	£126.84 £105.70
10	EG5680200001 Available to backorder	Rivet	£0.48 £0.40

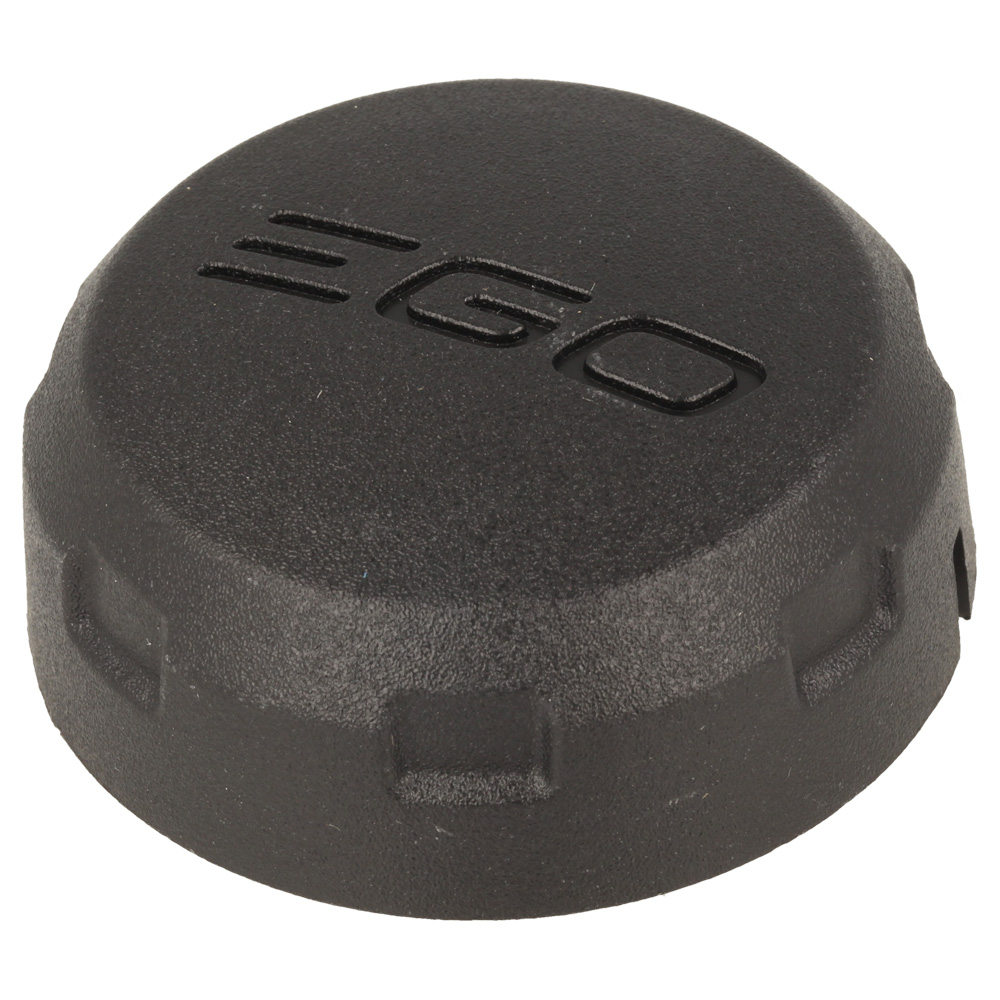

11	EG3126769001 Available to backorder	Hubcap	£0.83 £0.69
12	EG5640010003 Available to backorder	Hexagon Flange Bolt	£0.64 £0.53

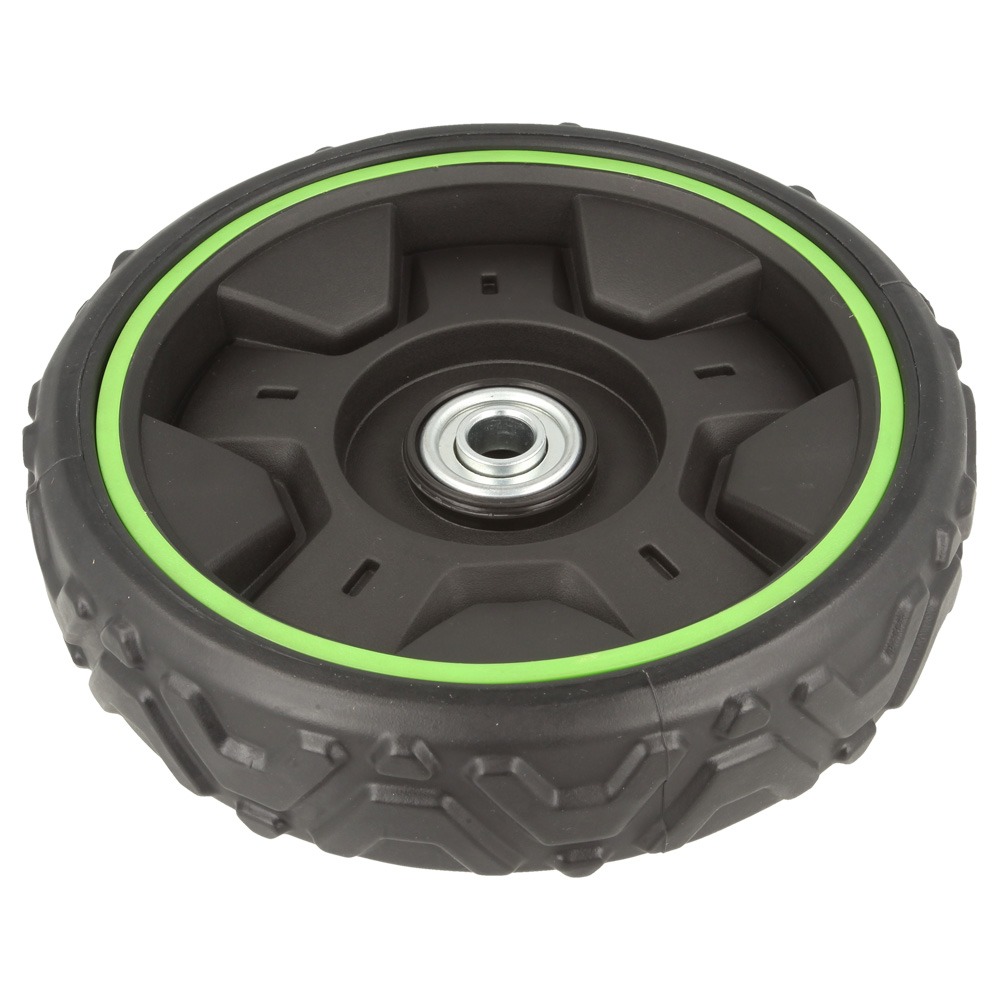

13	EG2824429001 Available to backorder	Wheel Assembly	£16.54 £13.78
16	EG5620157006 Available to backorder	Hexagon Socket Screw	£0.47 £0.39
17	EG5630013003 Available to backorder	Prevailing Torque Hexagon Nut	£0.38 £0.32
18	EG2824348001 Available to backorder	Front Axle Set	£29.51 £24.59
19	EG3705216001 Available to backorder	Mounting Plate	£0.78 £0.65
20	EG5650032003 Available to backorder	Plain Washer	£0.44 £0.37
21	EG3127847001 Available to backorder	Fan	£6.47 £5.39
22	EG3520852002 Available to backorder	Motor Bushing	£8.16 £6.80
23	EGAB2001 Available to backorder	Blade	£26.82 £22.35
24	EG5650510001 Available to backorder	Washer	£1.46 £1.22
25	EG5640226001 Available to backorder	Flange Bolt	£1.70 £1.42
26	EG3127956001 Available to backorder	Rear Enclosure	£26.87 £22.39
27	EG3660609001 Available to backorder	Tension Spring	£6.12 £5.10
28	EG2824128001 Available to backorder	Connecting Rod Assy	£12.59 £10.49
29	EG3126410001 Available to backorder	Height Adjusting Lever	£1.64 £1.37
30	EG5620033005 Available to backorder	Screw	£0.48 £0.40
31	EG3660606001 Available to backorder	Torsion Spring	£1.42 £1.18
32	EG5670184002 Available to backorder	Pin	£0.53 £0.44
33	EG2824126001 Available to backorder	Height Adjusting Bar Assy	£7.00 £5.83
34	EG3128114001 Available to backorder	Trail Shield	£6.36 £5.30
35	EG5650004001 Available to backorder	Plain Washer	£0.48 £0.40
36	EG3127964001 Available to backorder	Pivot Shoe	£0.59 £0.49
37	EG2824346001 Available to backorder	Rear Axle Set	£35.86 £29.88
38	EG3705261001 Available to backorder	Mounting Plate	£0.80 £0.67
39	EG5650453001 Available to backorder	Wave Washer	£0.47 £0.39
40	EG2824430001 Available to backorder	Wheel Assembly	£20.40 £17.00
41	EG3126765001 Available to backorder	Hubcap	£1.36 £1.13
42	EG3650172001 Available to backorder	Bag Frame	£28.43 £23.69
43	EG3800110002 Available to backorder	Grass Catcher	£40.00 £33.33
44	EG5680196001 In stock	Key	£5.04 £4.20
45	EG3127949001 Available to backorder	Mulch Plug	£15.55 £12.96
46	EG3127950001 Available to backorder	Side Discharge Chute	£10.20 £8.50
47	EG5630060004 Available to backorder	Hexagon Nut	£0.48 £0.40
48	EG3126580001 Available to backorder	Switch Lever	£1.12 £0.93
49	EG3126639001 Available to backorder	Wire Holder	£0.59 £0.49
50	EG3700095002 Available to backorder	Washer	£0.48 £0.40
51	EG5640228001 Available to backorder	Screw	£3.65 £3.04
52	EG3127944001 Available to backorder	Rear Cover	£12.68 £10.57
53	EG3660559001 Available to backorder	Torsion Spring	£2.62 £2.18
54	EG5660139002 Available to backorder	E Ring	£1.00 £0.83
55	EG5670382001 Available to backorder	Shaft	£2.96 £2.47
56	EG2824349001 Available to backorder	Handle Assy	£8.89 £7.41
57	EG5620369004 Available to backorder	Screw	£0.48 £0.40
58	EG5630271001 Available to backorder	Nut	£0.48 £0.40
59	EG2824125001 Available to backorder	Right Support Assy	£20.02 £16.68
60	EG3126337001 Available to backorder	Motor Top Cover	£6.47 £5.39
61	EG4860313001 Available to backorder	Internal Wire Assy	£9.56 £7.97
62	EG3660076001 Available to backorder	Spring	£0.48 £0.40
63	EG3126641001 Available to backorder	Rotating Block	£0.48 £0.40
64	EG5610032004 Available to backorder	Tapping Screw	£0.48 £0.40
65	EG4870541002 Available to backorder	Push Switch	£13.13 £10.94
66	EG3122798001 Available to backorder	Cord Anchorage	£0.48 £0.40
67	EG3128298001 Available to backorder	Rear Cover	£6.47 £5.39
68	EG2824134001 Available to backorder	Left Support Assy	£20.02 £16.68
69	EG3127947001 Available to backorder	Service Cover	£1.90 £1.58
70	EG3127951001 Available to backorder	Housing Cover	£6.80 £5.67
201	EG2824419002 Available to backorder	Power Unit	£334.40 £278.67
202	EG2824263001 Available to backorder	Handle Assy	£100.54 £83.78
