EGO LM1700E-SP - Lawnmower (Feb 2023) Main Assy Diagram

Description

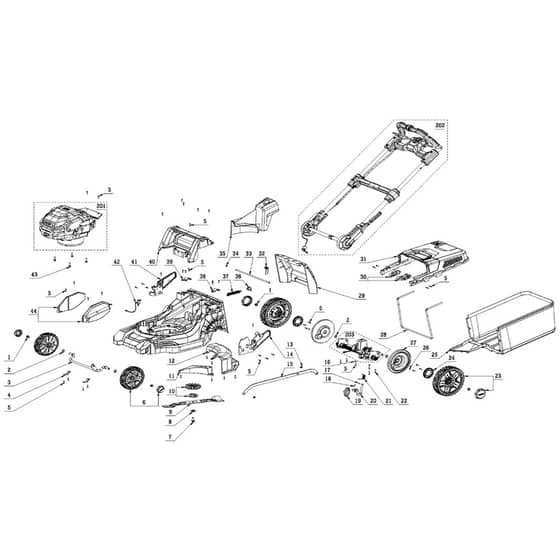

EGO LM1700E-SP Lawnmower (Feb 2023) Rotary Mower Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG5640010003 Available to backorder	Hexagon Flange Bolt	£0.64 £0.53
2	EG5650453001 Available to backorder	Wave Washer	£0.47 £0.39
3	EG2825708001 Available to backorder	Front Axle Set	£20.21 £16.84
4	EG3705216001 Available to backorder	Mounting Plate	£0.78 £0.65
5	EG5620157006 Available to backorder	Hexagon Socket Screw	£0.47 £0.39
6	EG2826675001 Available to backorder	Wheel Assembly	£21.77 £18.14
7	EG5640226001 Available to backorder	Flange Bolt	£1.70 £1.42
8	EG5650510001 Available to backorder	Washer	£1.46 £1.22
9	EGAB1700 Available to backorder	Mulching Blade	£18.36 £15.30
9	EGAB1701 Available to backorder	Bagging Blade	£18.36 £15.30
10	EG2826616001 Available to backorder	Fan Assembly	£21.32 £17.77

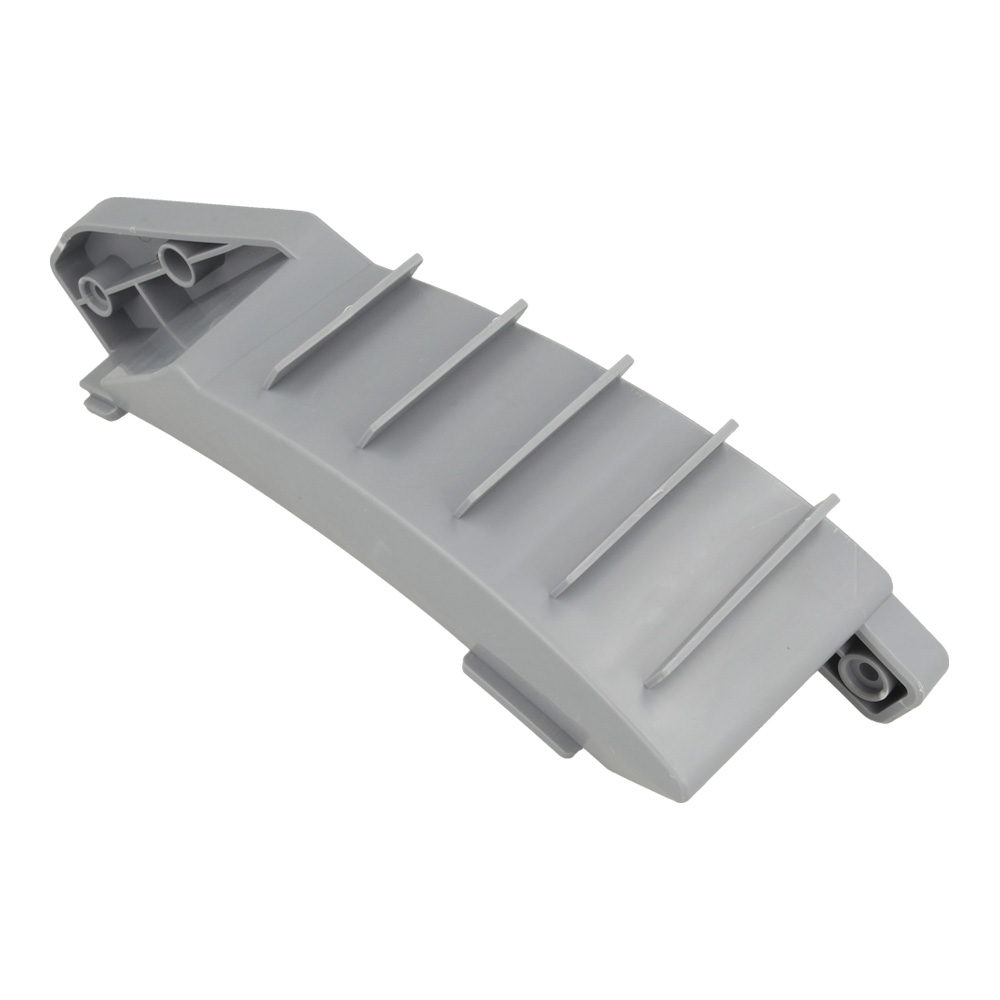

11	EG3129300001 Available to backorder	Rear Enclosure	£5.64 £4.70

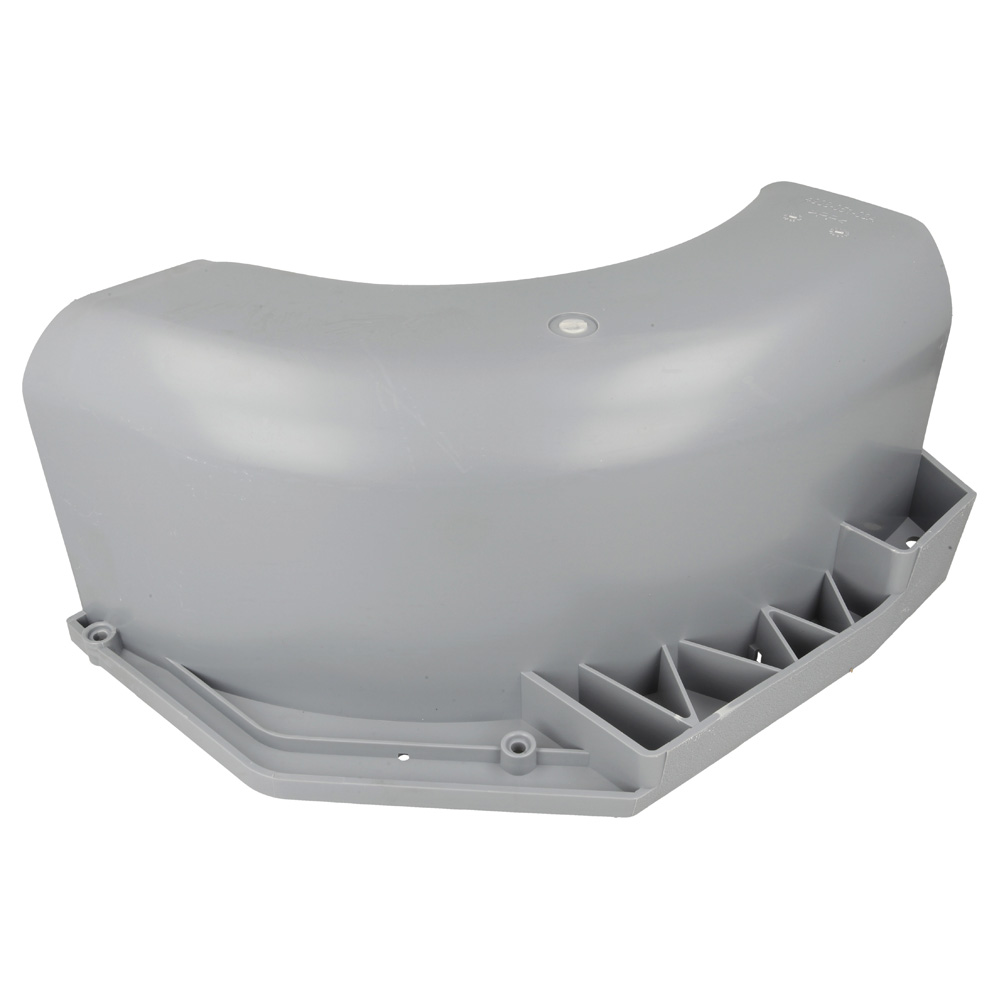

12	EG3129304001 Available to backorder	Cover	£13.32 £11.10
13	EG5630013003 Available to backorder	Prevailing Torque Hexagon Nut	£0.38 £0.32
14	EG3706717001 Available to backorder	Support Plate	£21.29 £17.74
15	EG2825931001 Available to backorder	Connecting Rod Assy	£13.80 £11.50
16	EG5650004001 Available to backorder	Plain Washer	£0.48 £0.40
17	EG5670184002 Available to backorder	Pin	£0.53 £0.44
18	EG5620065005 Available to backorder	Screw	£0.80 £0.67
19	EG3128692001 Available to backorder	Height Adjusting Lever	£1.07 £0.89
20	EG2825933001 Available to backorder	Handle Lever Set	£8.41 £7.01
21	EG3660723001 Available to backorder	Torsion Spring	£1.56 £1.30
22	EG5620480002 Available to backorder	Screw	£0.80 £0.67

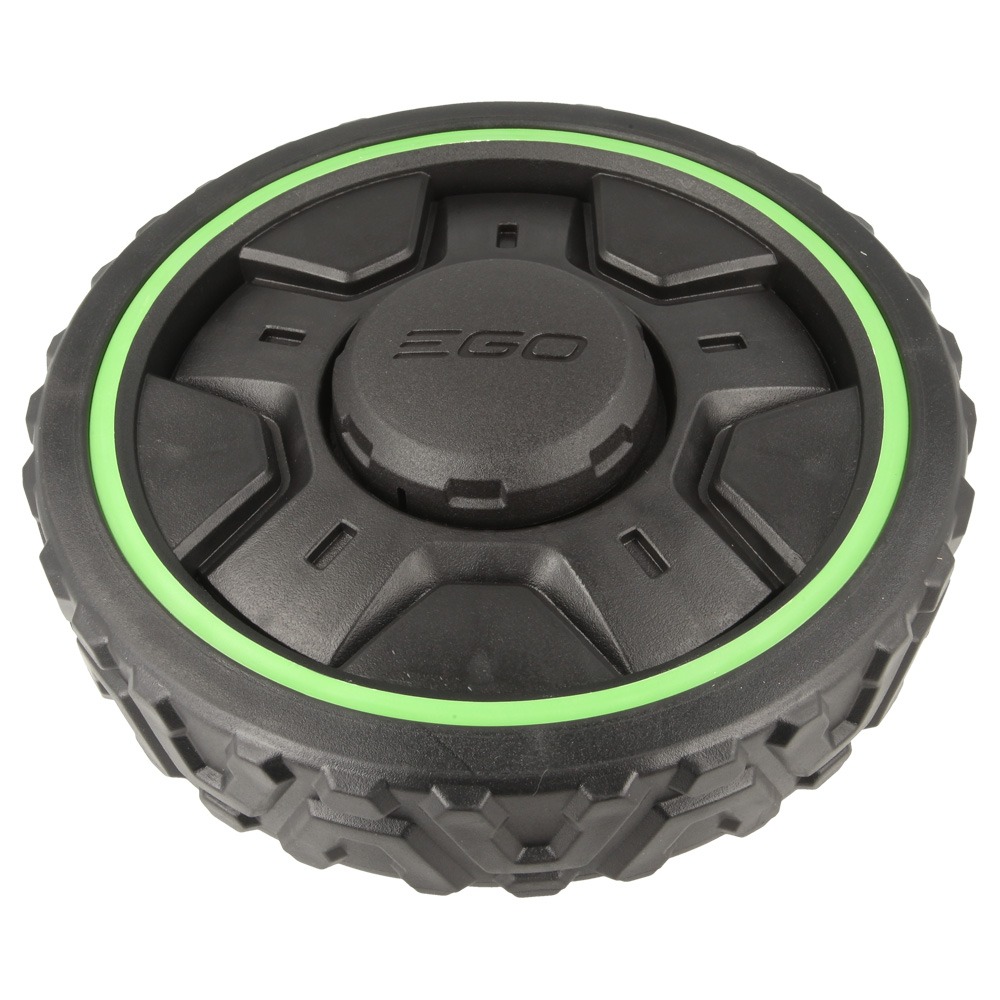

23	EG2826674001 Available to backorder	Wheel Assembly	£31.10 £25.92
24	EG3520933001 Available to backorder	Gear	£3.06 £2.55
25	EG3800146002 Available to backorder	Grass Catcher Assembly	£38.94 £32.45
26	EG5620067010 Available to backorder	Screw	£0.80 £0.67
27	EG3128946001 Available to backorder	Protecting Cap	£4.91 £4.09

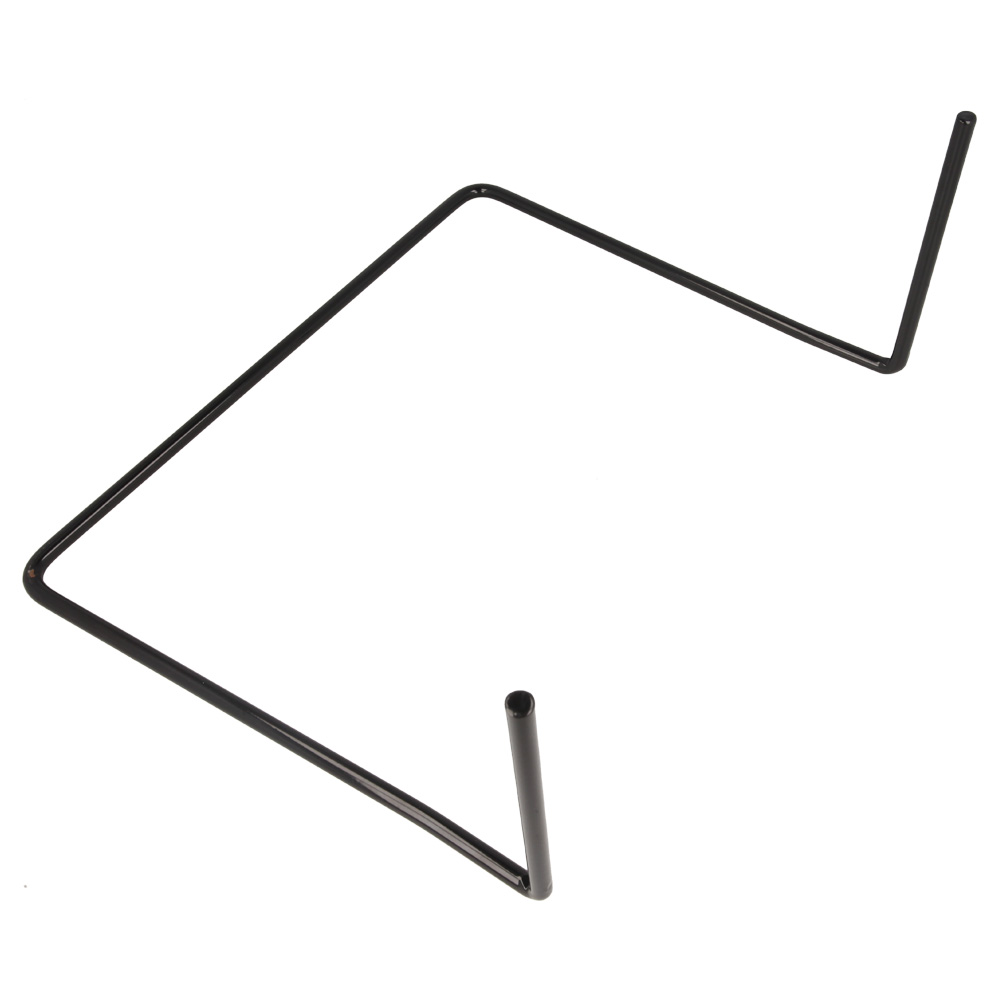

28	EG3706590001 Available to backorder	Bag Frame	£9.12 £7.60
29	EG3129298001 Available to backorder	Rear Cover	£16.13 £13.44

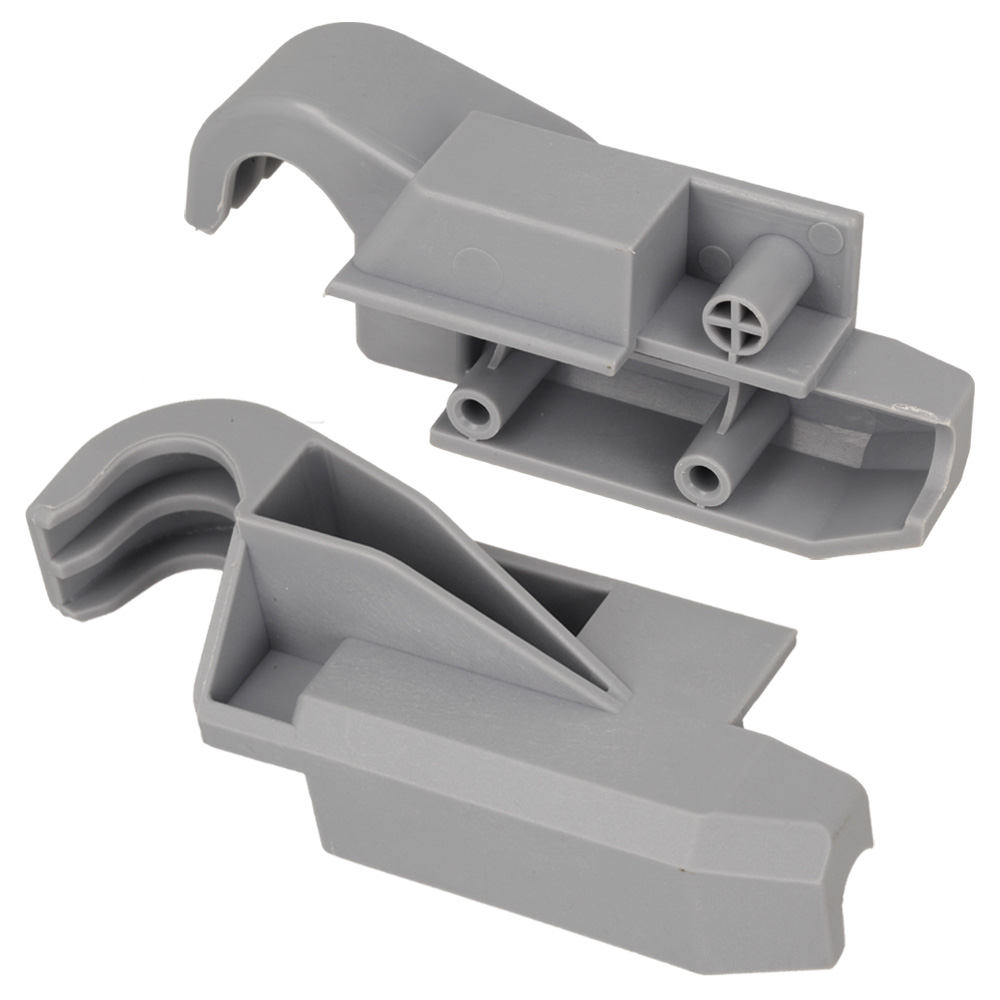

30	EG3900087001 Available to backorder	Pothook Assembly	£3.36 £2.80

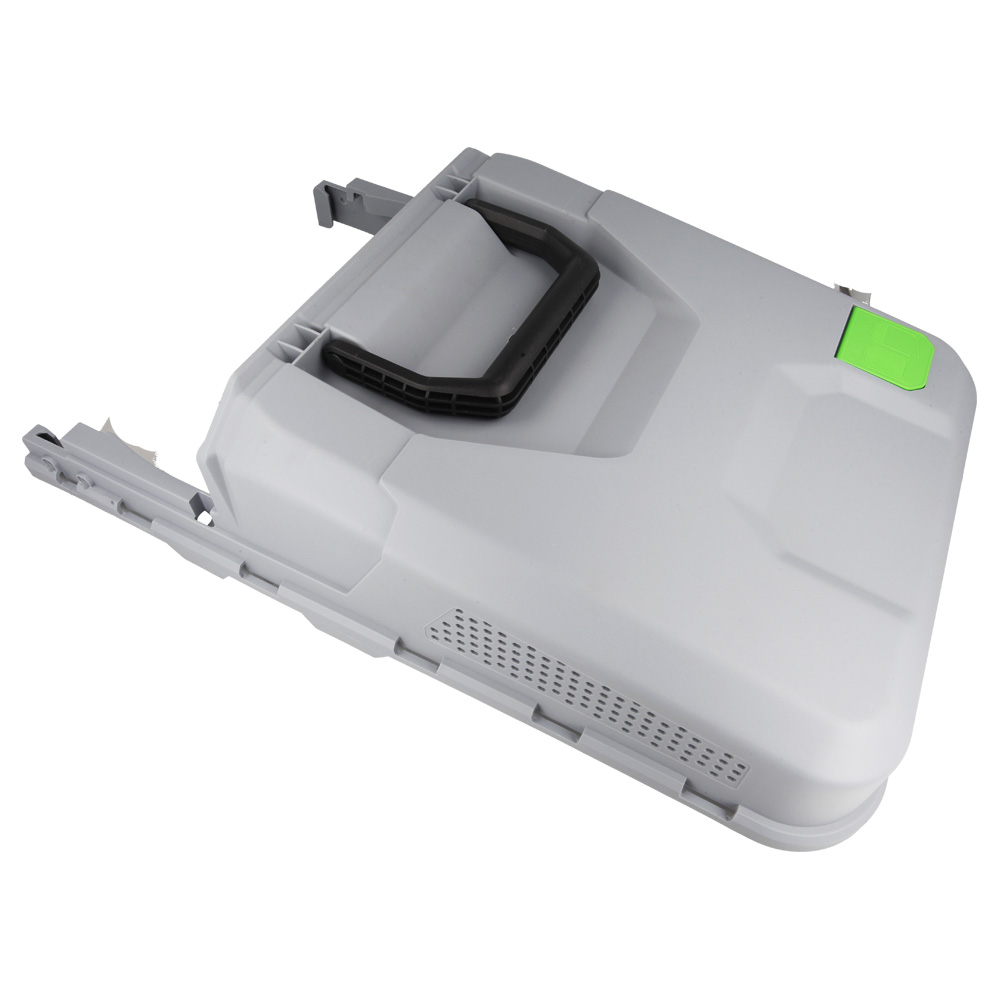

31	EG2826309001 Available to backorder	Cover Assembly	£38.53 £32.11
32	EG3660559001 Available to backorder	Torsion Spring	£2.62 £2.18
33	EG5670487001 Available to backorder	Shaft	£5.83 £4.86
34	EG5660139002 Available to backorder	E Ring	£1.00 £0.83

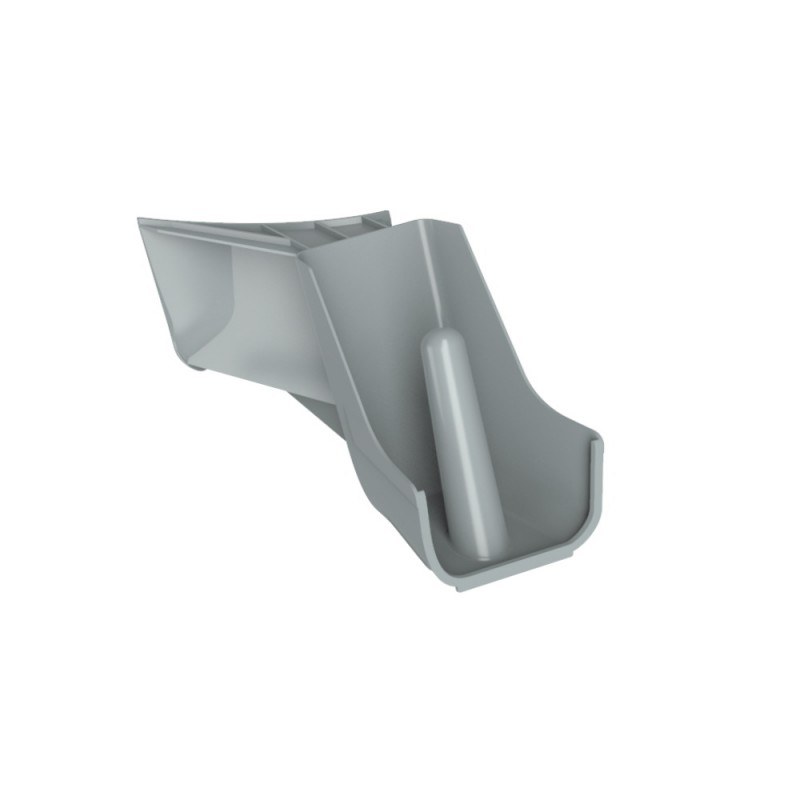

35	EG3129296001 Available to backorder	Mulch Plug	£27.46 £22.88
36	EG3706726001 Available to backorder	Spring Seat	£1.16 £0.97
37	EG3660720001 Available to backorder	Tension Spring	£4.22 £3.52
38	EG3706719001 Available to backorder	Mounting Plate	£2.04 £1.70
39	EG3706864001 Available to backorder	Mounting Plate	£2.04 £1.70
40	EG2825932001 Available to backorder	Service Cover Assembly	£23.09 £19.24
41	EG2825957001 Available to backorder	Support Assy	£17.98 £14.98
42	EG2826165001 Available to backorder	Switch Assembly	£9.42 £7.85
43	EG5640217001 Available to backorder	Bolt And Washer Set	£0.54 £0.45
44	EG3900085001 Available to backorder	Decorative Cover Assy	£10.58 £8.82
202	EG2825952002 Available to backorder	Handle Assy	£217.37 £181.14
203	EG2826773001 Available to backorder	Self-Propelled Unit	£192.56 £160.47
