EGO LM1700E-SP - Lawnmower (Feb 2023) Drive Unit Assy Diagram

Description

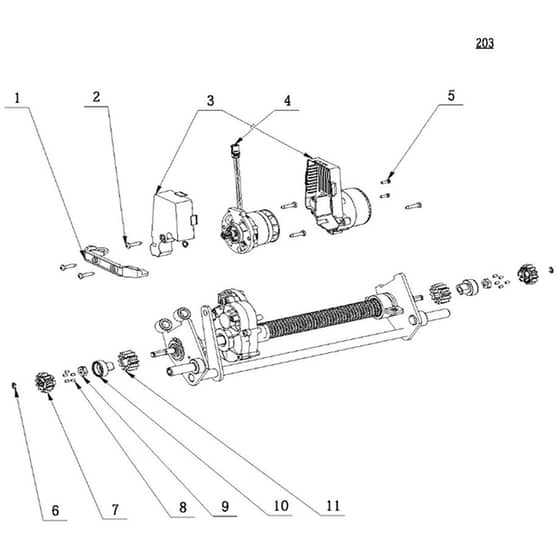

EGO LM1700E-SP Lawnmower (Feb 2023) Rotary Mower Drive Unit Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG3128943001 Available to backorder	Support	£1.18 £0.98
2	EG5620157006 Available to backorder	Hexagon Socket Screw	£0.47 £0.39
3	EG3900208001 Available to backorder	Dust Cover	£11.36 £9.47
4	EG2826577002 Available to backorder	Motor & Gear Assy	£74.40 £62.00
5	EG5620033010 Available to backorder	Screw	£0.48 £0.40
6	EG5660245001 Available to backorder	E Ring	£0.13 £0.11

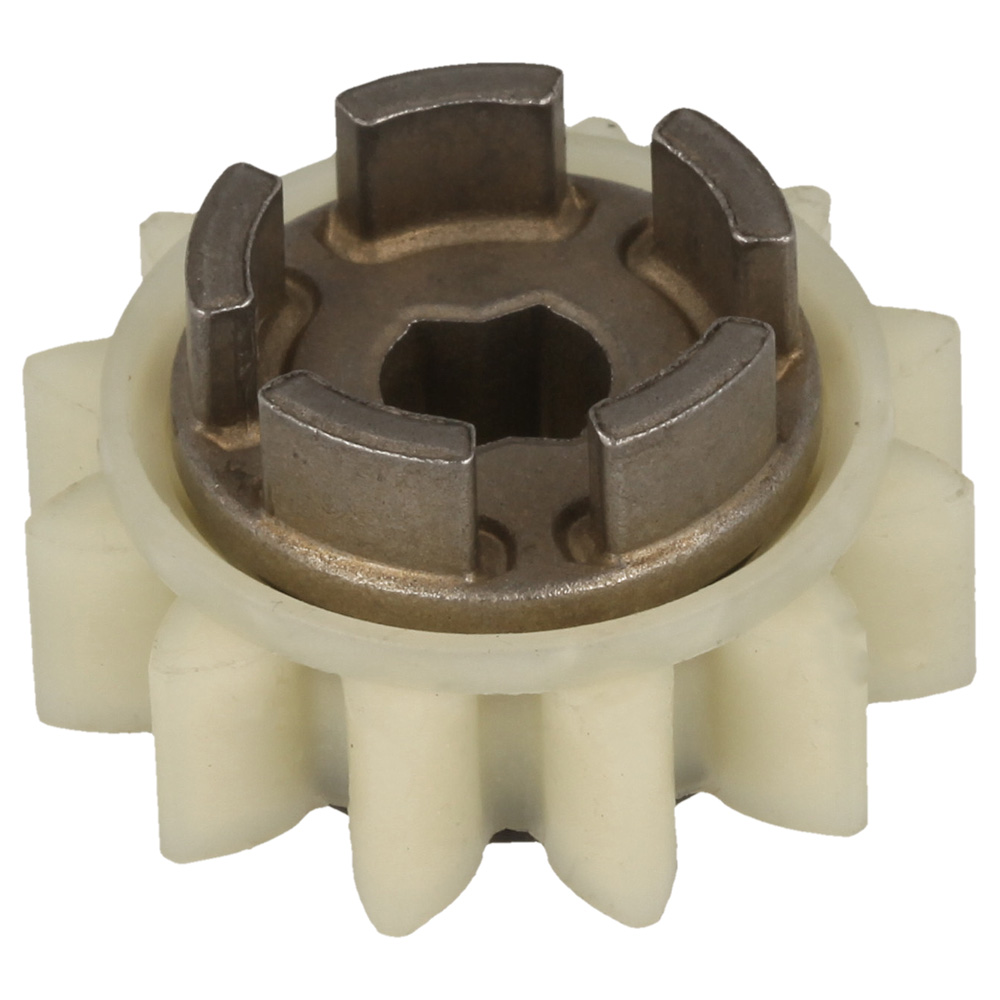

7	EG2825767001 Available to backorder	Gear Unit	£5.42 £4.52

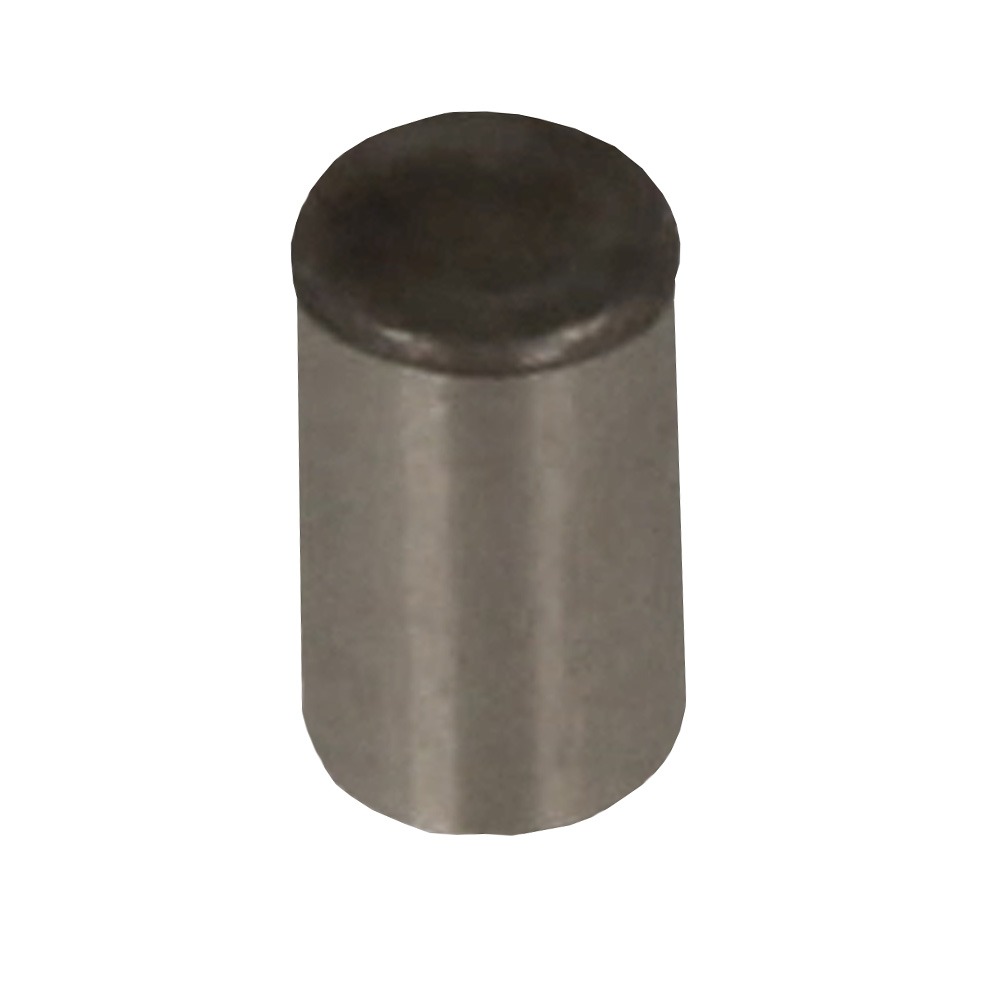

8	EG3550290001 In stock	Lock Pin	£0.48 £0.40

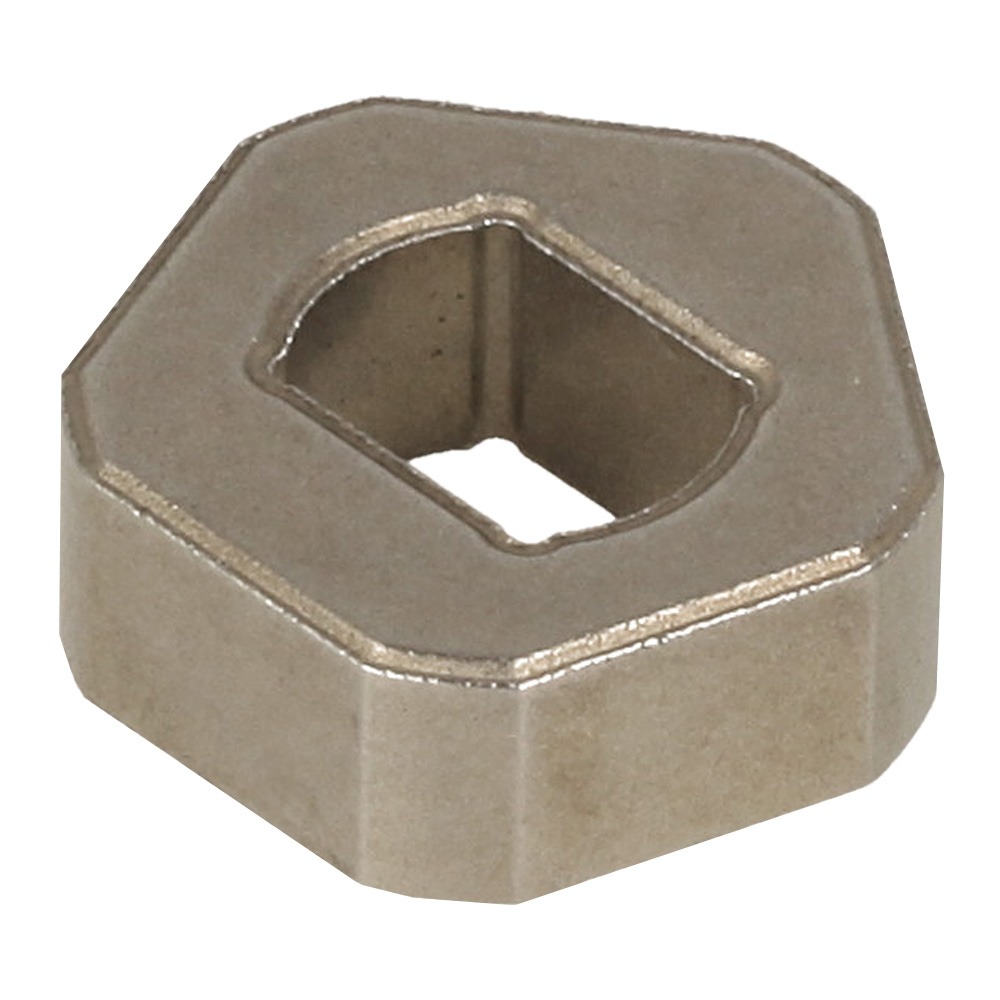

9	EG3520991001 Available to backorder	Cam Plate	£0.72 £0.60

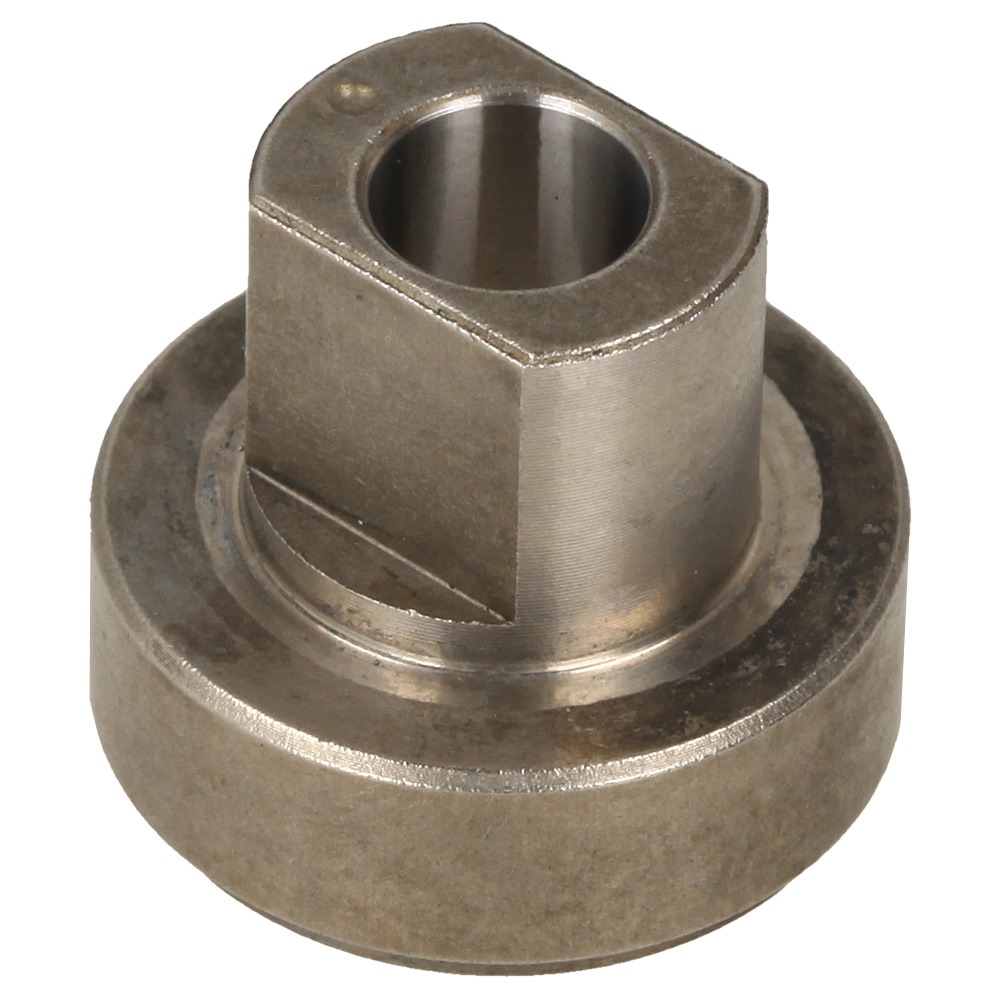

10	EG3520989001 Available to backorder	Outer Bracket	£5.04 £4.20

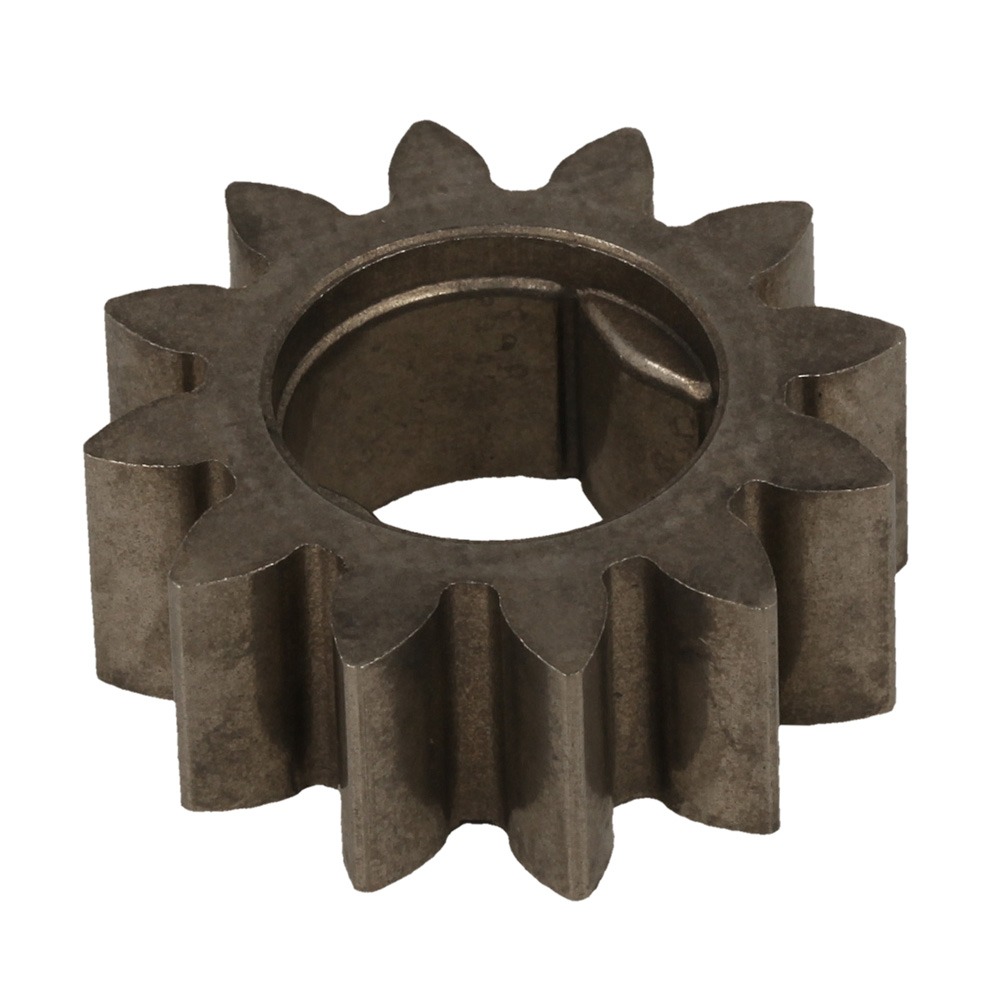

11	EG3520996001 In stock	Pinion	£2.52 £2.10
