Description

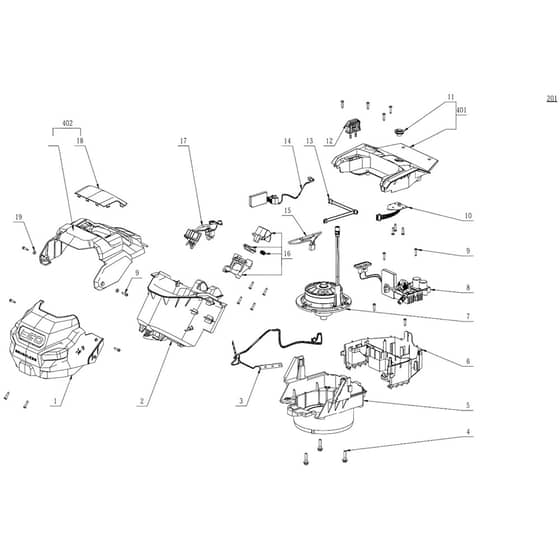

EGO LM1700E Lawnmower (Jan 2022) Rotary Mower Power Unit Parts Diagram

Ref. Img. Part No. Details
  1 Top Cover Assy
Top Cover Assy
EG2826307001
Available to backorder
Top Cover Assy
£23.08 £19.23

  2 Battery Box Assy
Battery Box Assy
EG2826306001
Available to backorder
Battery Box Assy
£26.44 £22.03

  3 Led Electric Assembly
Led Electric Assembly
EG2830412001
Available to backorder
Led Electric Assembly
£17.20 £14.33

  4 Bolt And Washer Set
Bolt And Washer Set
EG5640217001
Available to backorder
Bolt And Washer Set
£0.56 £0.47

  5 Bottom Support
Bottom Support
EG3403069001
Available to backorder
Bottom Support
£31.16 £25.97

  6 Mounting Plate
Mounting Plate
EG3129434001
Available to backorder
Mounting Plate
£14.51 £12.09

  7 Dc Motor
Dc Motor
EG2730281001
Available to backorder
Dc Motor
£157.32 £131.10

  8 Electric Assembly
Electric Assembly
EG2826492001
Available to backorder
Electric Assembly
£153.84 £128.20

  9 Hexagon Socket Screw
Hexagon Socket Screw
EG5620157006
Available to backorder
Hexagon Socket Screw
£0.48 £0.40

  10 Push Button Panel Pcba
Push Button Panel Pcba
EG2830413001
Available to backorder
Push Button Panel Pcba
£18.23 £15.19

  11 Button
Button
EG3322491001
Available to backorder
Button
£1.60 £1.33

  12 Key
Key
EG5680196001
In stock
Key
£5.39 £4.49

  13 Internal Wire Assy
Internal Wire Assy
EG4860616001
Available to backorder
Internal Wire Assy
£8.81 £7.34

  14 Led Control Electric Assembly
Led Control Electric Assembly
EG2830414001
Available to backorder
Led Control Electric Assembly
£44.52 £37.10

  15 Fuse Pcba
Fuse Pcba
EG2830216002
Available to backorder
Fuse Pcba
£24.08 £20.07

  16 Button Unit
Button Unit
EG2826617001
Available to backorder
Button Unit
£9.91 £8.26

  17 Wiring Harness
Wiring Harness
EG4860586001
Available to backorder
Wiring Harness
£23.89 £19.91

  18 Transparent Guard
Transparent Guard
EG3129442001
Available to backorder
Transparent Guard
£4.30 £3.58

  19 Plain Washer
Plain Washer
EG5650013004
Available to backorder
Plain Washer
£0.83 £0.69

  401 Rear Cover Assy
Rear Cover Assy
EG2826308001
Available to backorder
Rear Cover Assy
£21.92 £18.27

  402 Battery Cover Assy
Battery Cover Assy
EG2826310001
Available to backorder
Battery Cover Assy
£17.57 £14.64
