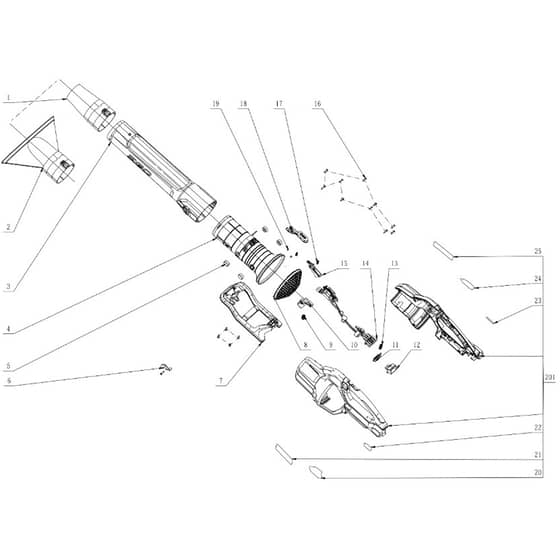

EGO LB6700E - Leaf Blower (Feb 2025) Main Assy Diagram

Part No. lb6700e_leaf_blower_feb_2025_main_assy-group
EGO LB6700E - Leaf Blower (Feb 2025) Main Assy Diagram
EGO LB6700E - Leaf Blower (Feb 2025) Main Assy Diagram

Description

EGO LB6700E Leaf Blower (Feb 2025) Blower Main Assy Parts Diagram

Ref. Img. Part No. Details
  1 Cone Nozzle Assembly
Cone Nozzle Assembly
EG2828485001
Available to backorder
Cone Nozzle Assembly
£10.12 £8.43

  2 Spread Nozzle Assembly
Spread Nozzle Assembly
EG2828690001
Available to backorder
Spread Nozzle Assembly
£10.12 £8.43

  3 Blow Tube Assembly
Blow Tube Assembly
EG2828460004
Available to backorder
Blow Tube Assembly
£13.45 £11.21

  4 Ducted Set
Ducted Set
EG2827049003
Available to backorder
Ducted Set
£51.77 £43.14

  5 Rubber Gasket
Rubber Gasket
EG5650519001
Available to backorder
Rubber Gasket
£0.41 £0.34

  6 Hook
Hook
EG3706375001
Available to backorder
Hook
£1.09 £0.91

  7 Bottom Support Assy
Bottom Support Assy
EG2825301002
Available to backorder
Bottom Support Assy
£10.82 £9.02

  8 Fan Baffle
Fan Baffle
EG3322802001
Available to backorder
Fan Baffle
£7.03 £5.86

  9 Compression Spring
Compression Spring
EG3660614001
Available to backorder
Compression Spring
£0.54 £0.45

  10 Lever
Lever
EG3128266001
Available to backorder
Lever
£0.85 £0.71

  11 Power Pack Button
Power Pack Button
EG3127497001
Available to backorder
Power Pack Button
£0.56 £0.47

  12 Power Pack Button
Power Pack Button
EG3127498001
Available to backorder
Power Pack Button
£0.82 £0.68

  13 Spring1
Spring1
EG3660013003
Available to backorder
Spring1
£0.48 £0.40

  14 Electric Assembly
Electric Assembly
EG2830399003
Available to backorder
Electric Assembly
£61.44 £51.20

  15 Switch Trigger
Switch Trigger
EG3129005001
Available to backorder
Switch Trigger
£0.83 £0.69

  16 Tapping Screw
Tapping Screw
EG5610294001
Available to backorder
Tapping Screw
£0.48 £0.40

  17 Knob-Reset Spring
Knob-Reset Spring
EG3660088003
Available to backorder
Knob-Reset Spring
£0.48 £0.40

  18 Boost Button
Boost Button
EG3129004001
Available to backorder
Boost Button
£1.06 £0.88

  19 Screw With Washer
Screw With Washer
EG5620176002
Available to backorder
Screw With Washer
£0.83 £0.69

  20 Nameplate
Nameplate
EG2244105007
Available to backorder
Nameplate
£1.43 £1.19

  21 Nameplate
Nameplate
EG2244104002
Available to backorder
Nameplate
£1.22 £1.02

  22 Nameplate
Nameplate
EG2244103002
Available to backorder
Nameplate
£0.74 £0.62

  23 Nameplate
Nameplate
EG2244103001
Available to backorder
Nameplate
£0.74 £0.62

  24 Nameplate
Nameplate
EG2244106004
Available to backorder
Nameplate
£1.43 £1.19

  25 Nameplate
Nameplate
EG2244104015
Available to backorder
Nameplate
£1.61 £1.34

  201 Handle Set
Handle Set
EG2825155003
Available to backorder
Handle Set
£27.95 £23.29


Description

EGO LB6700E Leaf Blower (Feb 2025) Blower Main Assy Parts Diagram
