EGO LB6000E - Leaf Blower (Version B) Main Assy Diagram

Name: EGO LB6000E - Leaf Blower (Version B) Main Assy Diagram
SKU: lb6000e_leaf_blower_version_b_elb05181000001x_jan_2022_mai-group
Price: 0.4 GBP
Availability: InStock

Part No. lb6000e_leaf_blower_version_b_elb05181000001x_jan_2022_mai-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EGO LB6000E - Leaf Blower (Version B) Main Assy Diagram

Description

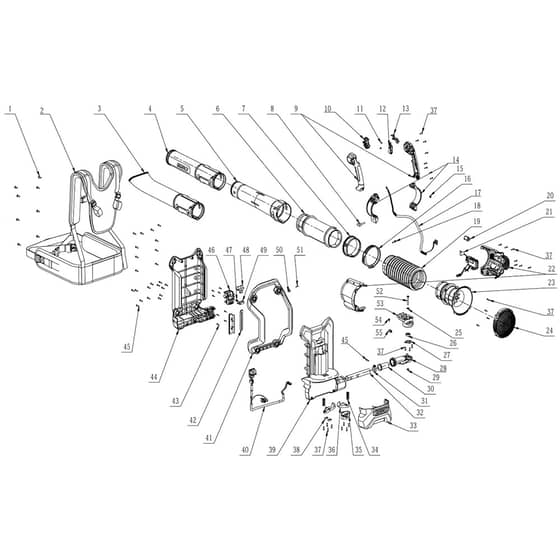

EGO LB6000E Leaf Blower (Version B) (ELB05181000001X- ) (Jan 2022) Blower Main Assy Parts Diagram

	Part No.	Details
1	EG5610298001 Available to backorder	Tapping Screw	£0.48 £0.40
2	EG3800121001 Available to backorder	Harness	£96.84 £80.70
3	EGANT6002 Available to backorder	Blower Tube	£30.17 £25.14
4	EG3129229001 Available to backorder	Front Tube	£14.28 £11.90
5	EG3129228001 Available to backorder	Tube	£8.63 £7.19
6	EG3128345002 Available to backorder	Connecting Tube	£13.06 £10.88
7	EG3128528001 Available to backorder	Holding Ring	£2.68 £2.23
8	EG5640239001 Available to backorder	Wing Bolt	£1.28 £1.07
9	EG3900013001 Available to backorder	Handle Set	£13.06 £10.88
10	EG2830309001 Available to backorder	Electric Assembly	£47.88 £39.90
11	EG5620176002 Available to backorder	Screw With Washer	£0.83 £0.69
12	EG3129247001 Available to backorder	Trigger	£0.83 £0.69
13	EG3129246001 Available to backorder	Boost Button	£0.83 £0.69
14	EG3900016001 Available to backorder	Handle Support	£6.26 £5.22
15	EG5630009002 Available to backorder	Hexagon Nut	£0.48 £0.40
16	EG3128545001 Available to backorder	Lock Ring	£2.30 £1.92

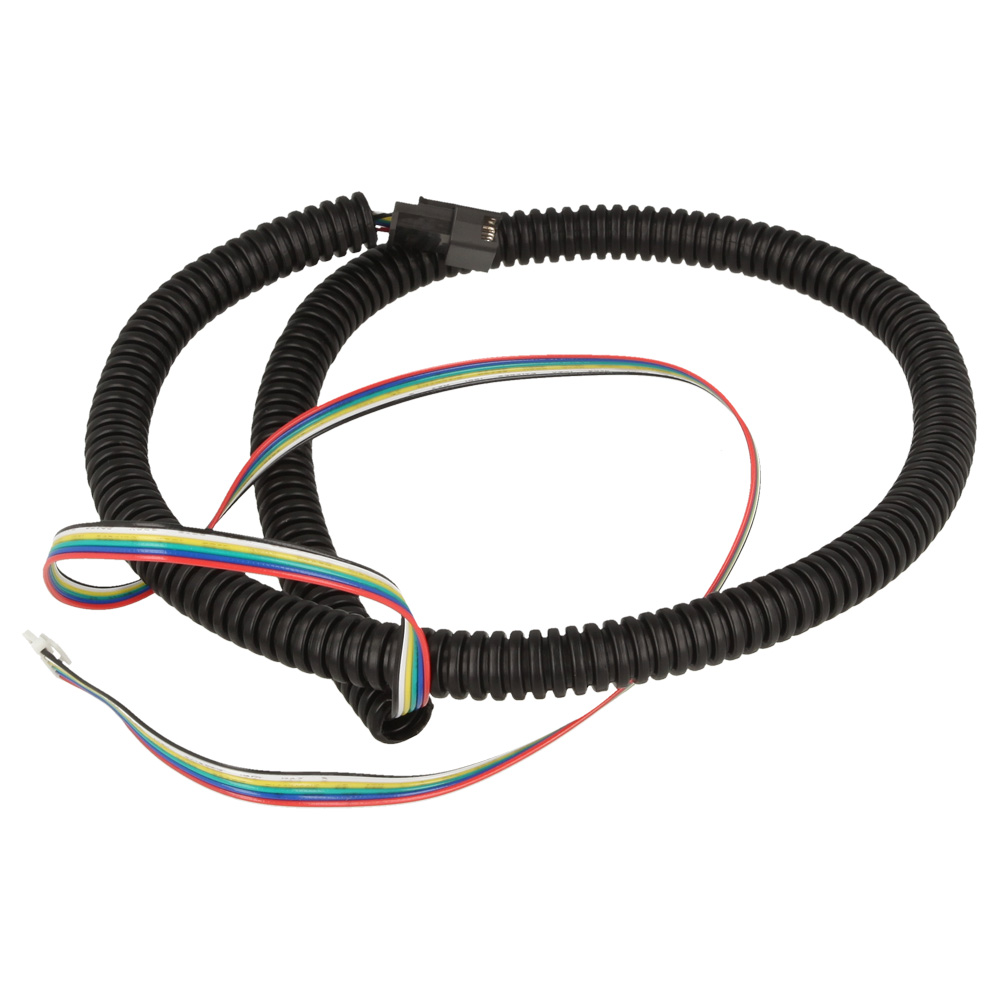

17	EG4860515001 Available to backorder	Internal Wire Assy	£10.74 £8.95
18	EG5610224002 Available to backorder	Hexagon Lobuar Screw	£0.48 £0.40
19	EG3128519001 Available to backorder	Bellows Seal	£19.87 £16.56
20	EG3680227001 Available to backorder	Magnetic Block	£3.94 £3.28
21	EG2830308001 Available to backorder	Electric Assembly	£98.28 £81.90
22	EG2824817001 Available to backorder	L R Housing Set	£10.52 £8.77
23	EG2825848001 Available to backorder	Ducted Set	£57.64 £48.03
24	EG3128343001 Available to backorder	Fan Baffle	£9.58 £7.98
25	EG5650419002 Available to backorder	Plain Washer	£0.48 £0.40
26	EG5700048003 Available to backorder	Ball Bearing	£3.07 £2.56
27	EG3706109001 Available to backorder	Bearing Retainer	£0.56 £0.47
28	EG3421815001 Available to backorder	Connecting Lever	£16.28 £13.57
29	EG5630015001 Available to backorder	Prevailing Torque Hexagon Nut	£0.48 £0.40
30	EG3128346001 Available to backorder	Plastic Sleeve	£0.62 £0.52
31	EG3705178001 Available to backorder	Fixed Ring	£0.58 £0.48
32	EG3706049001 Available to backorder	Connecting Tube	£3.16 £2.63
33	EG3322077001 Available to backorder	Decorative Cover	£13.87 £11.56
34	EG3660306002 Available to backorder	Spring	£0.77 £0.64
35	EG3129227001 Available to backorder	Switch Box	£1.14 £0.95
36	EG3126773001 Available to backorder	Lever	£1.54 £1.28
37	EG5610294001 Available to backorder	Tapping Screw	£0.48 £0.40
38	EG3122798001 Available to backorder	Cord Anchorage	£0.48 £0.40
39	EG3128358001 Available to backorder	Front Housing	£30.16 £25.13
40	EG2825709001 Available to backorder	Joint Assembly	£42.37 £35.31
41	EG3128357001 Available to backorder	Frame	£36.82 £30.68
42	EG3128361001 Available to backorder	Cover	£0.71 £0.59
43	EG5610274001 Available to backorder	Self Tapping Screw	£0.48 £0.40
44	EG3128362001 Available to backorder	Rear Housing	£32.54 £27.12
45	EG5620157006 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
46	EG3128359001 Available to backorder	Support	£1.10 £0.92
47	EG3660013003 Available to backorder	Spring1	£0.48 £0.40
48	EG3127498001 Available to backorder	Power Pack Button	£0.82 £0.68
49	EG3127497001 Available to backorder	Power Pack Button	£0.56 £0.47
50	EG3128883001 Available to backorder	Sleeve	£0.48 £0.40
51	EG5620410003 Available to backorder	Screw With Washer	£0.48 £0.40
52	EG5640243001 Available to backorder	Hexagon Head Bolt	£0.52 £0.43
53	EG3128521001 Available to backorder	Support	£8.53 £7.11
54	EG5610097002 Available to backorder	Thread Forming Screw	£0.48 £0.40
55	EG3705237001 Available to backorder	Hoop	£0.85 £0.71
