EGO LB6000E - Leaf Blower (Version A) Main Assy Diagram

Name: EGO LB6000E - Leaf Blower (Version A) Main Assy Diagram
SKU: lb6000e_leaf_blower_version_a_elb05161200001_elb0517080050-group
Price: 0.32 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EGO LB6000E - Leaf Blower (Version A) Main Assy Diagram

Description

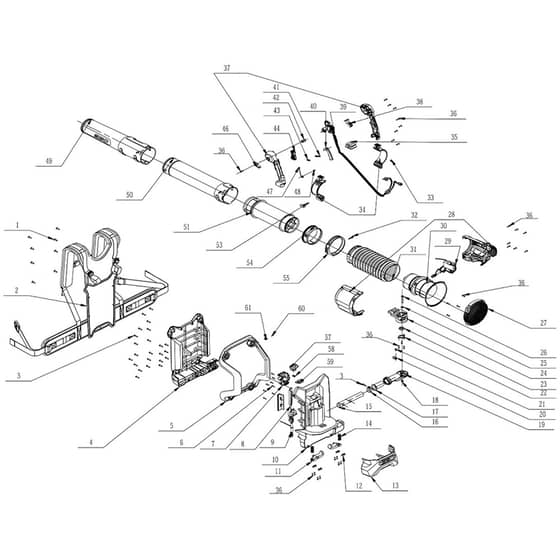

EGO LB6000E Leaf Blower (Version A) (ELB05161200001 - ELB05170800500) (Jan 2022) Blower Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG5610298001 Available to backorder	Tapping Screw	£0.48 £0.40
2	EG3800121001 Available to backorder	Harness	£97.68 £81.40

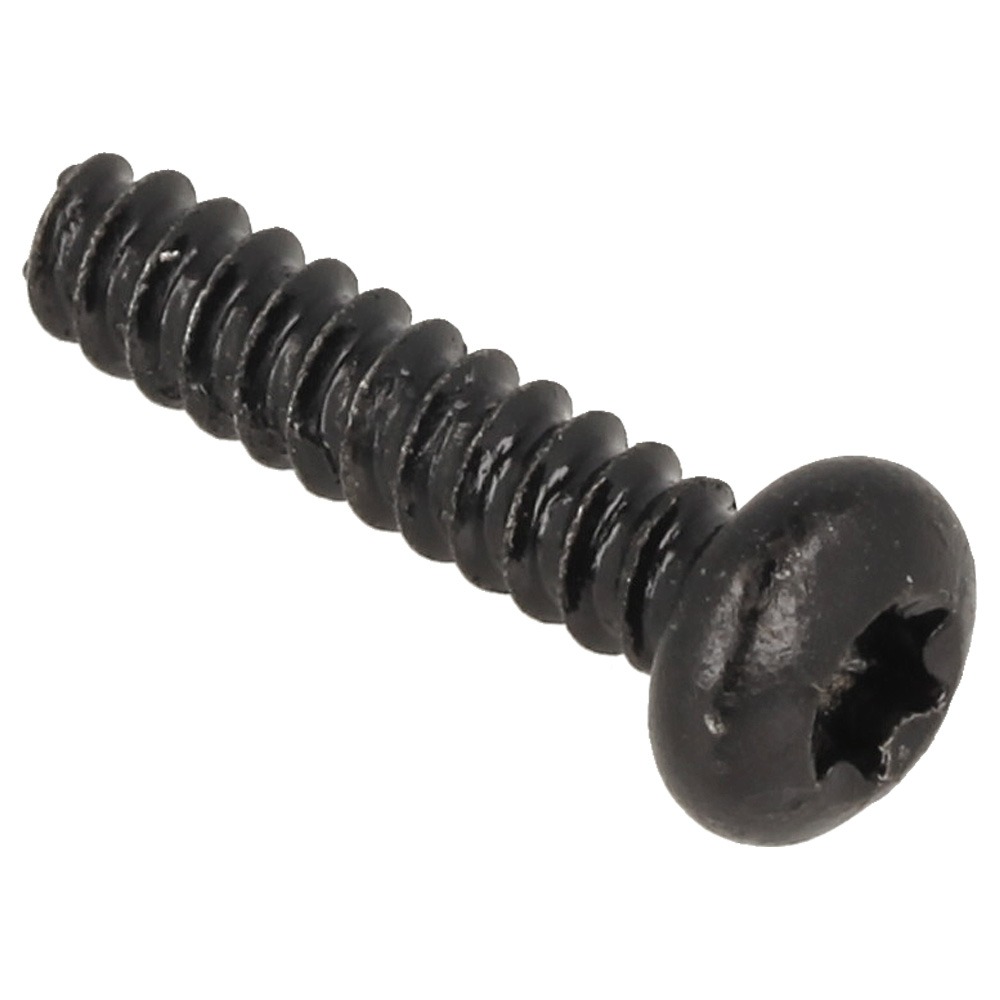

3	EG5620157006 Available to backorder	Hexagon Socket Screw	£0.47 £0.39
4	EG3128362001 Available to backorder	Rear Housing	£33.04 £27.53
5	EG3128357001 Available to backorder	Frame	£37.37 £31.14
6	EG5610274001 Available to backorder	Self Tapping Screw	£0.48 £0.40
7	EG3128359001 Available to backorder	Support	£1.12 £0.93
8	EG3128361001 Available to backorder	Cover	£0.72 £0.60
9	EG2825060001 Available to backorder	Joint Assembly	£28.14 £23.45
10	EG3128358001 Available to backorder	Front Housing	£30.60 £25.50
11	EG3126773001 Available to backorder	Lever	£1.56 £1.30
12	EG3122798001 Available to backorder	Cord Anchorage	£0.48 £0.40
13	EG3322077001 Available to backorder	Decorative Cover	£14.09 £11.74
14	EG3660306002 Available to backorder	Spring	£0.78 £0.65
15	EG3706049001 Available to backorder	Connecting Tube	£3.20 £2.67
16	EG3705178001 Available to backorder	Fixed Ring	£0.59 £0.49
17	EG3128346001 Available to backorder	Plastic Sleeve	£0.64 £0.53
18	EG5630015001 Available to backorder	Prevailing Torque Hexagon Nut	£0.48 £0.40
19	EG3421815001 Available to backorder	Connecting Lever	£16.52 £13.77
20	EG3705237001 Available to backorder	Hoop	£0.86 £0.72
21	EG5610097002 Available to backorder	Thread Forming Screw	£0.48 £0.40
22	EG3706109001 Available to backorder	Bearing Retainer	£0.58 £0.48
23	EG5700048003 Available to backorder	Ball Bearing	£3.12 £2.60
24	EG3128521001 Available to backorder	Support	£8.66 £7.22
25	EG5650419002 Available to backorder	Plain Washer	£0.48 £0.40
26	EG5640243001 Available to backorder	Hexagon Head Bolt	£0.53 £0.44
27	EG3128343001 Available to backorder	Fan Baffle	£9.72 £8.10
28	EG2824817001 Available to backorder	L R Housing Set	£10.69 £8.91
29	EG2830165001 Available to backorder	Electric Assembly	£99.12 £82.60
30	EG2824495002 Available to backorder	Ducted Set	£53.86 £44.88
31	EG3128519001 Available to backorder	Bellows Seal	£20.17 £16.81
32	EG5610224002 Available to backorder	Hexagon Lobuar Screw	£0.48 £0.40
33	EG5630009002 Available to backorder	Hexagon Nut	£0.48 £0.40
34	EG2824818001 Available to backorder	Handle Support	£6.26 £5.22
35	EG5650537001 Available to backorder	Rubber Gasket	£1.94 £1.62
36	EG5610294001 Available to backorder	Tapping Screw	£0.48 £0.40
37	EG2824819001 Available to backorder	Handle Assy	£16.18 £13.48
38	EG3128385001 Available to backorder	Boost Button	£0.78 £0.65
39	EG2824718002 Available to backorder	Switch Assembly	£58.32 £48.60
40	EG3127212001 Available to backorder	Lock Button	£0.67 £0.56
41	EG3660399002 Available to backorder	Spring	£0.48 £0.40
42	EG3128351001 Available to backorder	Linkage Block	£0.38 £0.32
43	EG3660088003 Available to backorder	Knob-Reset Spring	£0.48 £0.40
44	EG3128387001 Available to backorder	Trigger	£0.92 £0.77
46	EG3128386001 Available to backorder	Depth Adjusting Knob	£0.48 £0.40
47	EG3650142001 Available to backorder	Anti-Static Bar	£0.67 £0.56
48	EG5610021004 Available to backorder	Tapping Screw	£0.48 £0.40
49	EG3128520001 Available to backorder	Front Tube	£14.04 £11.70
50	EG3128342001 Available to backorder	Tube	£14.04 £11.70
51	EG3128345001 Available to backorder	Connecting Tube	£9.23 £7.69
53	EG5640239001 Available to backorder	Wing Bolt	£1.31 £1.09
54	EG3128528001 Available to backorder	Holding Ring	£2.72 £2.27
55	EG3128545001 Available to backorder	Lock Ring	£2.34 £1.95
57	EG3127498001 Available to backorder	Power Pack Button	£0.83 £0.69
58	EG3660013003 Available to backorder	Spring1	£0.48 £0.40
59	EG3127497001 Available to backorder	Power Pack Button	£0.58 £0.48
60	EG5620410003 Available to backorder	Screw With Washer	£0.48 £0.40
61	EG3128883001 Available to backorder	Sleeve	£0.48 £0.40
