EGO LB5800E - Leaf Blower (Jan 2022) Main Assy Diagram

EGO LB5800E - Leaf Blower (Jan 2022) Main Assy Diagram
EGO LB5800E - Leaf Blower (Jan 2022) Main Assy Diagram

Description

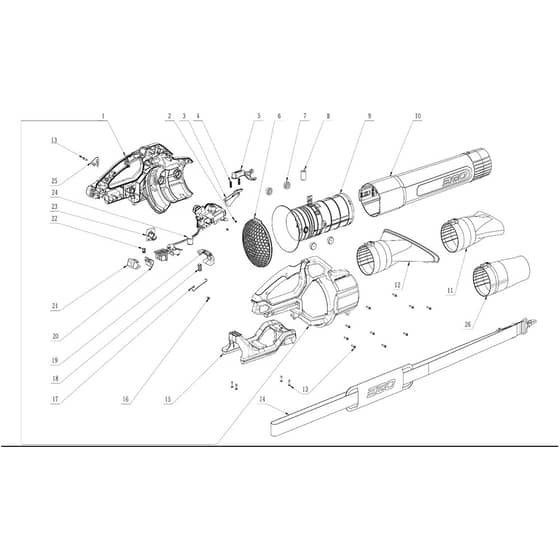

EGO LB5800E Leaf Blower (Jan 2022) Blower Main Assy Parts Diagram

Ref. Img. Part No. Details
  1 Handle Set
Handle Set
EG2825155001
Available to backorder
Handle Set
£50.12 £41.77

  2 Screw With Washer
Screw With Washer
EG5620176002
Available to backorder
Screw With Washer
£0.80 £0.67

  3 Switch Trigger
Switch Trigger
EG3129005001
Available to backorder
Switch Trigger
£0.80 £0.67

  4 Knob-Reset Spring
Knob-Reset Spring
EG3660088003
Available to backorder
Knob-Reset Spring
£0.48 £0.40

  5 Boost Button
Boost Button
EG3129004001
Available to backorder
Boost Button
£1.02 £0.85

  6 Fan Baffle
Fan Baffle
EG3128994001
Available to backorder
Fan Baffle
£3.72 £3.10

  7 Rubber Gasket
Rubber Gasket
EG5650519001
Available to backorder
Rubber Gasket
£0.48 £0.40

  8 Magnet Ring
Magnet Ring
EG3680196001
Available to backorder
Magnet Ring
£1.64 £1.37

  9 Ducted Set
Ducted Set
EG2826084001
Available to backorder
Ducted Set
£84.86 £70.72

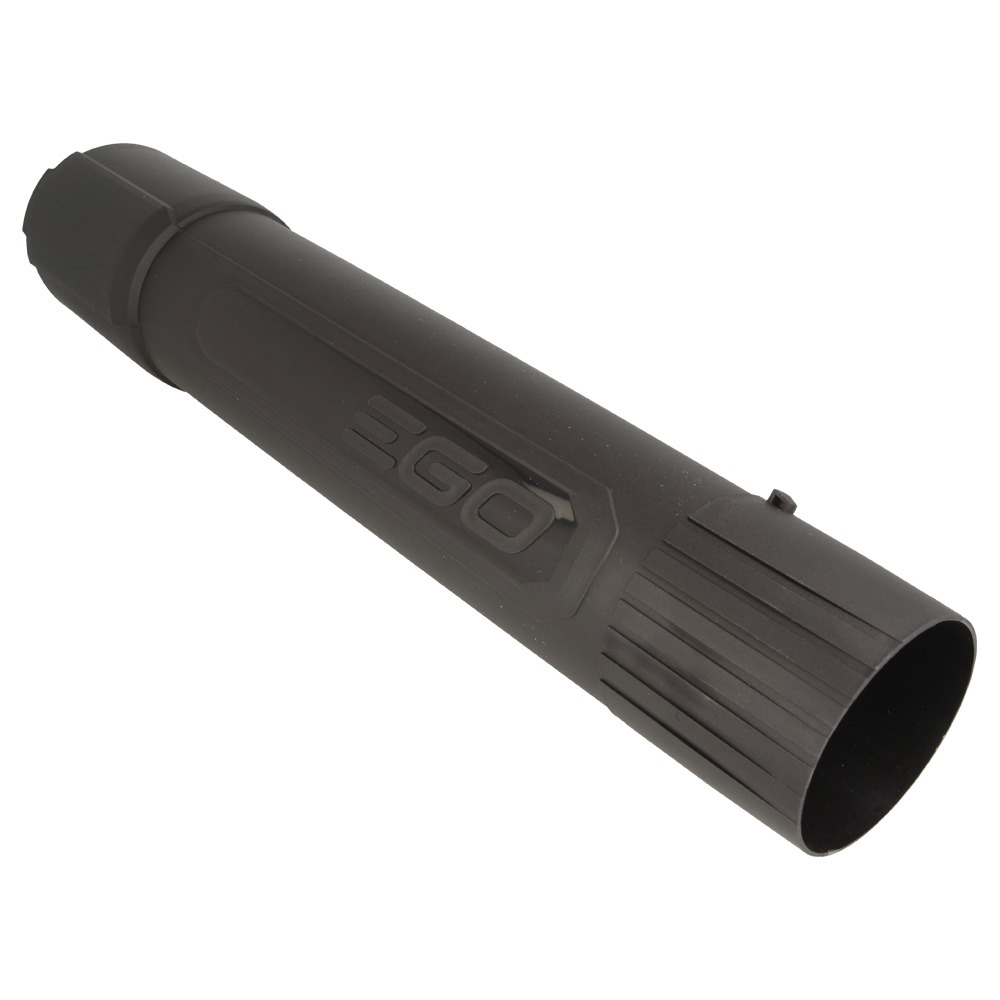

  10 Blow Tube Assy
Blow Tube Assy
EG2825302001
Available to backorder
Blow Tube Assy
£11.84 £9.87

  11 Nozzle Assembly
Nozzle Assembly
EGAN6000F
Available to backorder
Nozzle Assembly
£8.57 £7.14

  12 Spread Nozzle Assembly
Spread Nozzle Assembly
EGAN5801
Available to backorder
Spread Nozzle Assembly
£15.92 £13.27

  13 Tapping Screw
Tapping Screw
EG5610294001
Available to backorder
Tapping Screw
£0.48 £0.40

  14 Harness
Harness
EGAP1500
Available to backorder
Harness
£11.03 £9.19

  15 Bottom Support Assy
Bottom Support Assy
EG2825680001
Available to backorder
Bottom Support Assy
£12.46 £10.38

  16 Tapping Screw
Tapping Screw
EG5610021004
Available to backorder
Tapping Screw
£0.48 £0.40

  17 Anti-Static Bar
Anti-Static Bar
EG3650142001
Available to backorder
Anti-Static Bar
£0.67 £0.56

  18 Compression Spring
Compression Spring
EG3660614001
Available to backorder
Compression Spring
£0.54 £0.45

  19 Lever
Lever
EG3128266001
Available to backorder
Lever
£0.86 £0.72

  20 Power Pack Button
Power Pack Button
EG3127497001
Available to backorder
Power Pack Button
£0.58 £0.48

  21 Power Pack Button
Power Pack Button
EG3127498001
Available to backorder
Power Pack Button
£0.83 £0.69

  22 Spring1
Spring1
EG3660013003
Available to backorder
Spring1
£0.48 £0.40

  23 Switch Box
Switch Box
EG3129127001
Available to backorder
Switch Box
£0.80 £0.67

  24 Electric Assembly
Electric Assembly
EG2830399001
Available to backorder
Electric Assembly
£159.36 £132.80

  25 Hook
Hook
EG3706375001
Available to backorder
Hook
£1.09 £0.91

  26 Cone Nozzle Assembly
Cone Nozzle Assembly
EGAN6000R
Available to backorder
Cone Nozzle Assembly
£8.16 £6.80


Description

EGO LB5800E Leaf Blower (Jan 2022) Blower Main Assy Parts Diagram
