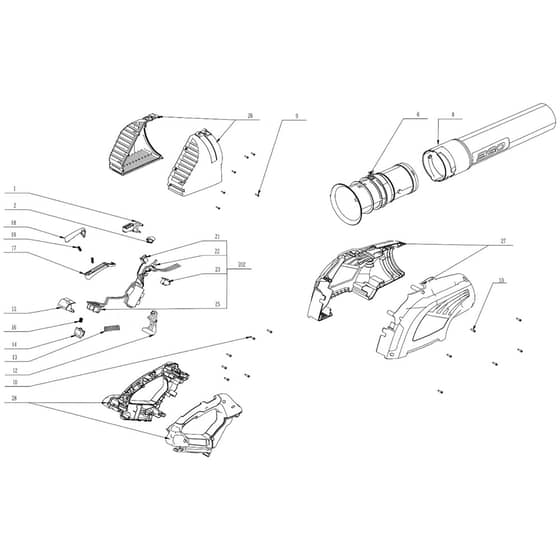

EGO LB4800E Leaf Blower (Version A) (ELB01161204831 - ELB01161205330) (Jan 2022) Blower Main Assy Parts Diagram

Ref. Img. Part No. Details
  1 Boost Button
Boost Button
EG3127214001
Available to backorder
Boost Button
£1.12 £0.93

  2 Speed Ajusting Knob
Speed Ajusting Knob
EG3127215001
Available to backorder
Speed Ajusting Knob
£0.72 £0.60

  6 Ducted Set (Inc Dc Motor)
Ducted Set (Inc Dc Motor)
EG2823629002
Available to backorder
Ducted Set (Inc Dc Motor)
£90.84 £75.70

  8 Tube
Tube
EG3127195001
Available to backorder
Tube
£13.74 £11.45

  9 Tapping Screw
Tapping Screw
EG5610012004
Available to backorder
Tapping Screw
£0.48 £0.40

  10 Tapping Screw
Tapping Screw
EG5610032004
Available to backorder
Tapping Screw
£0.48 £0.40

  12 Lever
Lever
EG3127206001
Available to backorder
Lever
£1.42 £1.18

  13 Spring
Spring
EG3660129002
Available to backorder
Spring
£1.07 £0.89

  14 Power Pack Button
Power Pack Button
EG3127202001
Available to backorder
Power Pack Button
£0.64 £0.53

  15 Release Button
Release Button
EG3127201001
Available to backorder
Release Button
£1.12 £0.93

  16 Spring1
Spring1
EG3660013003
Available to backorder
Spring1
£0.48 £0.40

  17 Trigger
Trigger
EG3127211001
Available to backorder
Trigger
£0.92 £0.77

  18 Lock Button
Lock Button
EG3127212001
Available to backorder
Lock Button
£0.67 £0.56

  19 Knob-Reset Spring
Knob-Reset Spring
EG3660088003
Available to backorder
Knob-Reset Spring
£0.48 £0.40

  21 Rocker Switch
Rocker Switch
EG4870513001
Available to backorder
Rocker Switch
£2.27 £1.89

  22 Pcb Assembly
Pcb Assembly
EG4890439002
Available to backorder
Pcb Assembly
£3.02 £2.52

  23 Micro Switch
Micro Switch
EG4870516001
Available to backorder
Micro Switch
£2.59 £2.16

  25 Contact Receptacle Assy
Contact Receptacle Assy
EG3402724001
Available to backorder
Contact Receptacle Assy
£4.81 £4.01

  26 Fan Baffle Assy
Fan Baffle Assy
EG2822936001
Available to backorder
Fan Baffle Assy
£13.18 £10.98

  27 Housing Assy
Housing Assy
EG2822946001
Available to backorder
Housing Assy
£30.96 £25.80

  28 Handle Assy
Handle Assy
EG2825075001
Available to backorder
Handle Assy
£23.32 £19.43

  202 Electric Assembly
Electric Assembly
EG2823650004
Available to backorder
Electric Assembly
£76.92 £64.10
