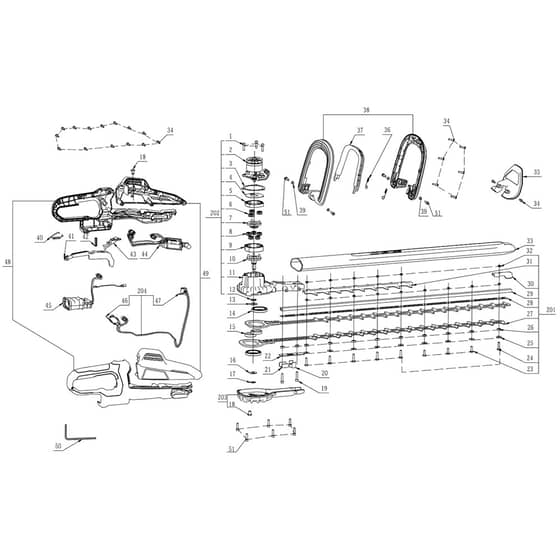

EGO HTX6500 Hedgetrimmer (Version B) (EHT05194822471X- ) (Jan 2022) Hedge Trimmer Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG5620446003 Available to backorder	Hexagon Socket Screw	£0.34 £0.28
2	EG2825419001 Available to backorder	Motor & Gear Assy	£72.66 £60.55
3	EG5690399001 Available to backorder	Gasket Seal	£0.80 £0.67
4	EG5650631001 Available to backorder	Washer	£0.80 £0.67
5	EG3520889001 Available to backorder	Ring Gear	£5.21 £4.34
6	EG2824554001 Available to backorder	Planet Gear Assembly	£8.08 £6.73
7	EG2824336001 Available to backorder	Sun Gear Assy	£5.24 £4.37
8	EG3520887001 Available to backorder	Planet Gear	£0.72 £0.60
9	EG3520888001 Available to backorder	Ring Gear	£7.63 £6.36
10	EG2824387002 Available to backorder	Carrier	£20.88 £17.40
11	EG2825420001 Available to backorder	Gear Case Assy	£43.18 £35.98
12	EG5660018001 Available to backorder	Circlips For Shaft	£0.48 £0.40
13	EG5650632001 Available to backorder	Plain Washer	£0.44 £0.37
14	EG5700329001 Available to backorder	Ball Bearing	£15.36 £12.80
15	EG3552450001 Available to backorder	Eccentric Block	£16.67 £13.89
16	EG5650630001 Available to backorder	Plain Washer	£0.48 £0.40
17	EG3660652001 Available to backorder	Disc Spring	£0.48 £0.40
18	EG5620606001 Available to backorder	Hexagon Socket Screw	£0.80 £0.67
19	EG5620216005 Available to backorder	Hexagon Socket Screw	£0.83 £0.69
20	EG3521017001 Available to backorder	Limit Chute	£3.48 £2.90
21	EG3706098001 Available to backorder	Upper Support Plate	£1.12 £0.93
22	EG3706398001 Available to backorder	Support Plate	£4.51 £3.76
23	EG5620604001 Available to backorder	Hexagon Socket Screw	£0.80 £0.67
24	EG5620605001 Available to backorder	Hexagon Socket Screw	£0.80 £0.67
25	EG5650487001 Available to backorder	Plain Washer	£0.48 £0.40
26	EG5650531001 Available to backorder	Bush	£0.48 £0.40
28	EG3706422001 Available to backorder	Hold Down Strip	£3.06 £2.55
29	EG3552744001 Available to backorder	Clamp Support	£19.72 £16.43
30	EG3705992001 Available to backorder	Tip Protector	£1.75 £1.46
31	EG3706043001 Available to backorder	Protective Teeth	£4.81 £4.01
32	EG5630007006 Available to backorder	Prevailing Torque Hexagon Nut	£0.48 £0.40
33	EG3129789001 Available to backorder	Sheath	£8.76 £7.30
34	EG5620479001 Available to backorder	Screw	£0.48 £0.40
35	EG3129134001 Available to backorder	Guard	£2.78 £2.32
36	EG3660718001 Available to backorder	Tension Spring	£0.48 £0.40
37	EG3129176001 Available to backorder	Switch Trigger	£6.80 £5.67
38	EG3900039001 Available to backorder	Side Handle	£21.23 £17.69
39	EG5650404001 Available to backorder	Washer	£0.48 £0.40
40	EG3650204001 Available to backorder	Pothook	£0.80 £0.67
41	EG3129177001 Available to backorder	Switch Trigger	£3.90 £3.25
42	EG3660076001 Available to backorder	Spring	£0.48 £0.40
43	EG3129175001 Available to backorder	Lock Button	£1.76 £1.47
44	EG2830279001 Available to backorder	Electric Assembly	£122.16 £101.80
45	EG4860466001 Available to backorder	Internal Wire Assy	£60.36 £50.30
46	EG4870639001 Available to backorder	Micro Switch	£20.18 £16.82
47	EG4870654001 Available to backorder	Micro Switch	£20.84 £17.37
48	EG3900038001 Available to backorder	Rear Handle Set	£41.18 £34.32
49	EG2825424001 Available to backorder	L R Housing Set	£14.32 £11.93
50	EG5680164001 Available to backorder	Inner Hexagon Spanner	£0.54 £0.45
51	EG5620446004 Available to backorder	Hexagon Socket Screw	£0.34 £0.28
201	EG2840013001 Available to backorder	Blade Set	£208.26 £173.55
202	EG2825418001 Available to backorder	Motor & Gear Assy	£138.72 £115.60
203	EG2825421001 Available to backorder	Lower Housing Assy	£64.80 £54.00
204	EG2825679001 Available to backorder	Switch Assembly	£55.98 £46.65
