EGO HTX5300-PA - Pole Hedge Trimmer (Feb 2024) Main Assy Diagram

Description

EGO HTX5300-PA Pole Hedge Trimmer (Feb 2024) Hedge Trimmer Main Assy Parts Diagram

	Part No.	Details
1	EG5630007010 Available to backorder	Prevailing Torque Hexagon Nut	£0.89 £0.74
2	EG3705992001 Available to backorder	Tip Protector	£1.43 £1.19
3	EG5650047001 Available to backorder	Plain Washer	£0.89 £0.74
4	EG3709011001 Available to backorder	Clamp Support	£60.96 £50.80
5	EG3709018001 Available to backorder	Hold Down Strip	£10.28 £8.57
6	EG3709060001 Available to backorder	Blade	£83.16 £69.30
7	EG3580331001 Available to backorder	Bush	£0.48 £0.40
8	EG5650487001 In stock	Plain Washer	£0.52 £0.43
9	EG5620605001 Available to backorder	Hexagon Socket Screw	£0.83 £0.69
10	EG5611133001 Available to backorder	Hexagon Socket Button Head Screw	£0.89 £0.74
11	EG3134546001 Available to backorder	Sheath	£10.94 £9.12
12	EG5630565001 Available to backorder	Prevailing Torque Type All-Metal Hexagon	£2.15 £1.79
13	EG3709014001 Available to backorder	Support Plate	£11.26 £9.38
14	EG5651101001 Available to backorder	Wave Washer	£0.89 £0.74
15	EG5620216005 Available to backorder	Hexagon Socket Screw	£0.82 £0.68
16	EG3709251001 Available to backorder	Support Plate	£2.75 £2.29
17	EG5620019005 Available to backorder	Hexagon Socket Screw	£0.83 £0.69
18	EG2850667001 Available to backorder	Lower Gear Case Cover Assembly	£45.25 £37.71
19	EG3700736001 Available to backorder	Support Plate	£0.67 £0.56
20	EG2852041001 Available to backorder	Link Assembly	£56.28 £46.90
21	EG5620156007 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
22	EG2850168001 Available to backorder	Bevel Gear Assembly	£54.95 £45.79
23	EG2850666001 Available to backorder	Right Gear Case Assembly	£69.96 £58.30
24	EG5620546001 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
25	EG5630532001 Available to backorder	Prevailing Torque Type All-Metal Hexagon Nut	£1.92 £1.60
26	EG5630016001 Available to backorder	Hexagon Nut	£0.89 £0.74
27	EG3660652001 Available to backorder	Disc Spring	£0.48 £0.40
28	EG5650569001 Available to backorder	Plain Washer	£0.67 £0.56
29	EG5650578001 Available to backorder	Plain Washer	£0.48 £0.40
30	EG2790854001 Available to backorder	Left Gear Case Assembly	£67.32 £56.10
31	EG5650598001 Available to backorder	Washer	£0.48 £0.40
32	EG5620213003 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
33	EG2850001001 Available to backorder	Transmitting Gear Assembly	£33.94 £28.28
34	EG5650570001 Available to backorder	Plain Washer	£0.67 £0.56
35	EG5650187001 Available to backorder	Washer	£0.48 £0.40
36	EG3402841002 Available to backorder	Release Button	£6.20 £5.17
37	EG3660072002 Available to backorder	Spring	£0.48 £0.40
38	EG3660094001 Available to backorder	Spring	£0.48 £0.40
39	EG3402842001 Available to backorder	Bevel Lever	£2.16 £1.80
40	EG5680164001 Available to backorder	Inner Hexagon Spanner	£0.54 £0.45
41	EG2245897003 Available to backorder	Nameplate	£2.75 £2.29
42	EG3705178001 Available to backorder	Fixed Ring	£0.58 £0.48
43	EG3133938001 Available to backorder	Rubber Block	£1.45 £1.21
44	EG3660088003 Available to backorder	Knob-Reset Spring	£0.48 £0.40
45	EG2829162001 Available to backorder	Trigger Assembly	£8.46 £7.05
46	EG2790798001 Available to backorder	Motor And Gear Case Assembly	£111.48 £92.90
47	EG3660818001 Available to backorder	Compression Spring	£0.83 £0.69
48	EG3131427001 Available to backorder	Sliding Block	£0.52 £0.43
49	EG3127497001 Available to backorder	Power Pack Button	£0.56 £0.47
50	EG3660013003 Available to backorder	Spring1	£0.48 £0.40
51	EG3127498001 Available to backorder	Power Pack Button	£0.82 £0.68
52	EG3133887001 Available to backorder	Cover Plate	£5.36 £4.47
53	EG3570452001 Available to backorder	Drive Shaft	£24.58 £20.48
54	EG5620050007 Available to backorder	Screw	£0.48 £0.40
55	EG2831654001 Available to backorder	Electric Assembly	£191.16 £159.30

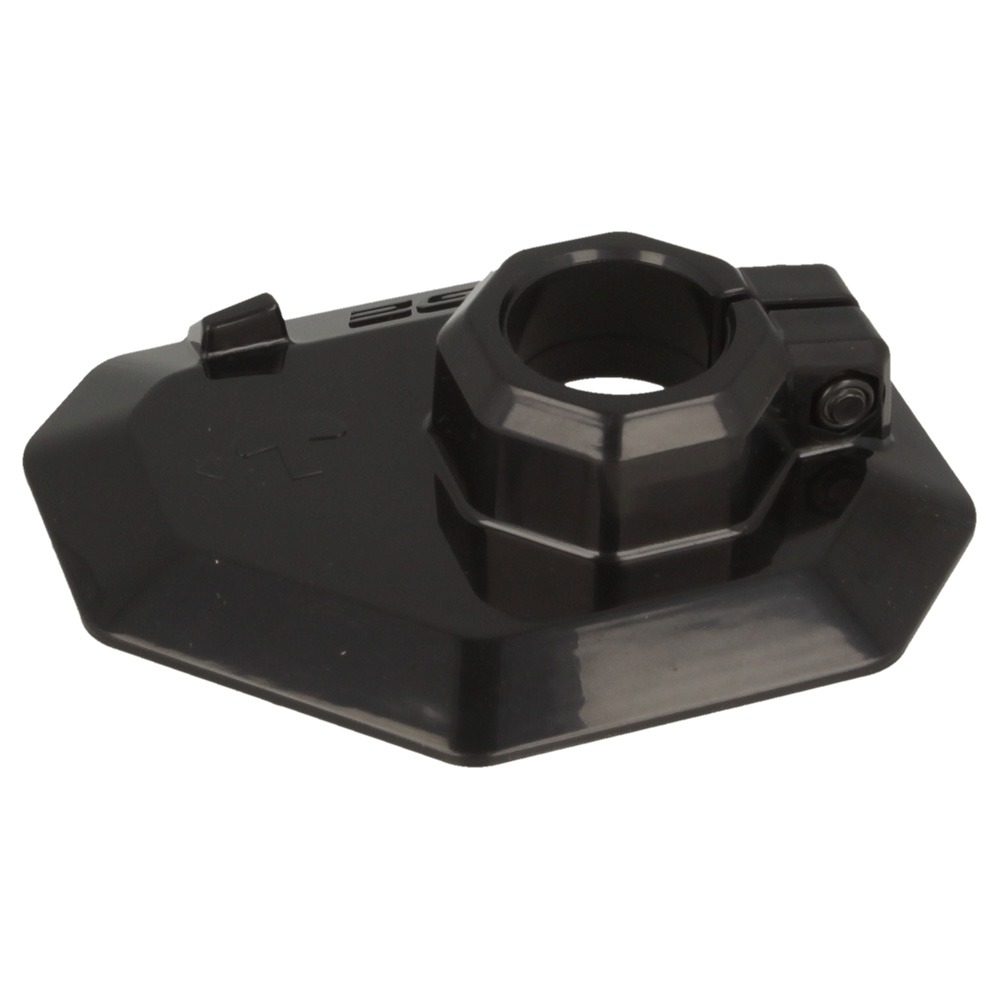

56	EG2850199001 Available to backorder	Baffle Assembly	£11.86 £9.88
57	EG2829754001 Available to backorder	Auxiliary Handle Assembly	£23.05 £19.21
58	EG2850167001 Available to backorder	Pothook Assembly	£13.37 £11.14
59	EG5620479001 Available to backorder	Screw	£0.48 £0.40
60	EG5610295001 Available to backorder	Hexagon Socket Screw	£0.89 £0.74
61	EG5610241002 Available to backorder	Screw	£0.89 £0.74
62	EG3900691005 Available to backorder	L R Housing Set	£31.80 £26.50
63	EG3900651006 Available to backorder	L R Handle Set	£23.14 £19.28
201	EG2850002001 Available to backorder	Blade Set	£238.08 £198.40
202	EG2850315001 Available to backorder	Connecting Tube Assembly	£153.36 £127.80
