EGO HTA2000 - Hedgetrimmer Attachment (Jan 2022) Main Assy Diagram

Description

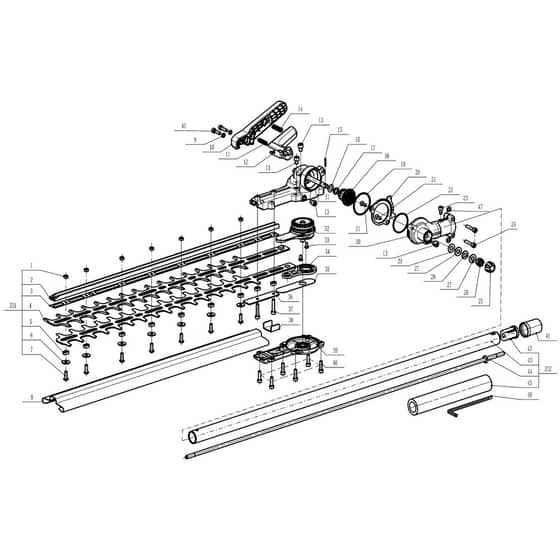

EGO HTA2000 Hedgetrimmer Attachment (Jan 2022) Multi Tool Main Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	EG5630007006 Available to backorder	Prevailing Torque Hexagon Nut	£0.48 £0.40
2	EG3552609001 Available to backorder	Clamp Support	£15.79 £13.16
3	EG3706193001 Available to backorder	Support Plate	£2.96 £2.47
4	EG3706167001 Available to backorder	Blade	£59.52 £49.60
5	EG5650531001 Available to backorder	Bush	£0.48 £0.40
6	EG5650487001 Available to backorder	Plain Washer	£0.48 £0.40
7	EG5620543001 Available to backorder	Hexagon Socket Screw	£0.44 £0.37
8	EG3128882001 Available to backorder	Sheath	£9.08 £7.57
9	EG5650404001 Available to backorder	Washer	£0.48 £0.40
10	EG3402842001 Available to backorder	Bevel Lever	£2.20 £1.83
11	EG3660094001 Available to backorder	Spring	£0.48 £0.40
12	EG3402841001 Available to backorder	Release Button	£1.74 £1.45
13	EG5620546001 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
14	EG3660072002 Available to backorder	Spring	£0.48 £0.40
15	EG5670436001 Available to backorder	Split Pin	£0.48 £0.40
16	EG5650187001 Available to backorder	Washer	£0.48 £0.40
17	EG5650570001 Available to backorder	Plain Washer	£0.67 £0.56
18	EG2824878002 Available to backorder	Transmitting Gear Assy	£47.42 £39.52
19	EG5650571001 Available to backorder	Plain Washer	£0.67 £0.56
20	EG3706166001 Available to backorder	Angle Support	£2.09 £1.74
21	EG5620074008 Available to backorder	Screw	£0.48 £0.40
22	EG5690353001 Available to backorder	O Ring	£0.48 £0.40
23	EG5620213003 Available to backorder	Hexagon Socket Screw	£0.47 £0.39
24	EG5620216003 Available to backorder	Screw	£0.38 £0.32
25	EG3128682001 Available to backorder	Cover	£0.92 £0.77
26	EG5630300001 Available to backorder	Hex Nut	£0.86 £0.72
27	EG5650569001 Available to backorder	Plain Washer	£0.67 £0.56
28	EG3660652001 Available to backorder	Disc Spring	£0.48 £0.40
29	EG5650578001 Available to backorder	Plain Washer	£0.48 £0.40
30	EG2824876002 Available to backorder	Left Gear Case Assy	£79.32 £66.10
31	EG2824877002 Available to backorder	Right Gear Case Assy	£79.32 £66.10
32	EG2824875002 In stock	Bevel Gear Assy	£65.56 £54.63
33	EG5620156007 Available to backorder	Hexagon Socket Screw	£0.48 £0.40
34	EG2824890002 In stock	Link Assembly	£34.56 £28.80
35	EG3700736001 Available to backorder	Support Plate	£0.67 £0.56
36	EG3705991001 Available to backorder	Support Plate	£1.45 £1.21
37	EG5620216005 Available to backorder	Hexagon Socket Screw	£0.83 £0.69
38	EG3706098001 Available to backorder	Upper Support Plate	£1.12 £0.93
39	EG2824873002 Available to backorder	Lower Housing Assy	£51.50 £42.92
40	EG5620446005 Available to backorder	Hexagon Socket Screw	£0.59 £0.49
41	EG3128734001 Available to backorder	Sleeve	£0.54 £0.45
42	EG3128859001 Available to backorder	Guiding Block	£0.48 £0.40
43	EG2825114002 Available to backorder	Tube Assembly	£40.39 £33.66
44	EG2824792002 Available to backorder	Shaft Assembly	£14.09 £11.74
45	EG3706123001 Available to backorder	Sheath	£3.40 £2.83
46	EG5680210001 Available to backorder	Inner Hexagon Spanner	£1.08 £0.90
47	EG5650598001 Available to backorder	Washer	£0.48 £0.40
201	EG2824872002 Available to backorder	Blade Set	£119.64 £99.70
202	EG2825115002 Available to backorder	Connecting Tube Assy	£53.11 £44.26
