EGO HT2600E - Hedgetrimmer (Apr 2023) Main Assy Diagram

Description

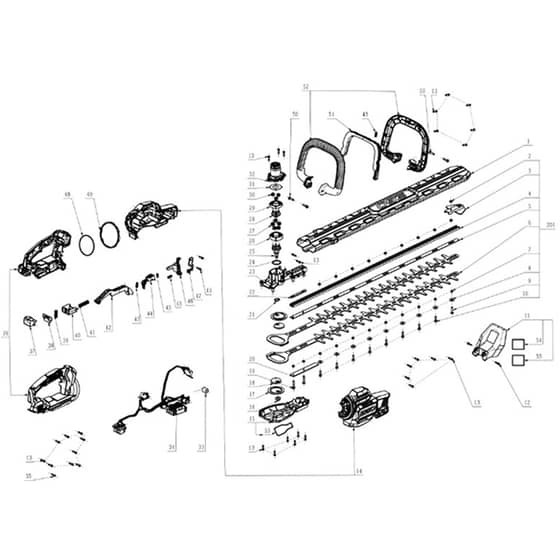

EGO HT2600E Hedgetrimmer (Apr 2023) Hedge Trimmer Main Assy Parts Diagram

	Part No.	Details
1	EG3133667001 Available to backorder	Sheath	£14.32 £11.93
2	EG5630007001 Available to backorder	Prevailing Torque Hexagon Nut	£0.48 £0.40
3	EG3706328001 Available to backorder	Tip Protector	£3.06 £2.55
4	EG3555966001 Available to backorder	Clamp Support	£17.88 £14.90
5	EG3708612001 Available to backorder	Hold Down Strip	£4.61 £3.84
6	EG2829011001 Available to backorder	Blade Set	£90.24 £75.20
7	EG5650671001 Available to backorder	Bush	£0.83 £0.69
8	EG5650487001 In stock	Plain Washer	£0.52 £0.43
9	EG5620544001 Available to backorder	Hexagon Socket Screw	£0.43 £0.36
10	EG5620019004 Available to backorder	Hexagon Socket Screw	£0.34 £0.28
11	EG3128993002 Available to backorder	Guard	£8.69 £7.24
12	EG5610264004 Available to backorder	Hexagon Lobular Screw	£0.83 £0.69
13	EG5610294001 Available to backorder	Tapping Screw	£0.48 £0.40
14	EG3900653001 Available to backorder	Front Housing Assembly	£18.74 £15.62
15	EG3133696002 Available to backorder	Mounting Cover	£11.36 £9.47
16	EG5630325001 Available to backorder	Flange Nut	£2.20 £1.83
17	EG5650951001 Available to backorder	Gasket	£2.48 £2.07
18	EG3708618001 Available to backorder	Eccentric Block	£4.00 £3.33
19	EG5620216005 Available to backorder	Hexagon Socket Screw	£0.82 £0.68
20	EG3708686001 Available to backorder	Support Plate	£3.56 £2.97
21	EG5660018001 Available to backorder	Circlips For Shaft	£0.48 £0.40
22	EG3134158001 Available to backorder	Knighthead	£0.56 £0.47
23	EG2790701001 Available to backorder	Gear Case Assembly	£16.26 £13.55
24	EG5650555001 Available to backorder	Washer	£0.48 £0.40
25	EG2824926002 Available to backorder	Carrier	£20.54 £17.12
26	EG3520963001 Available to backorder	Ring Gear	£4.74 £3.95
27	EG3520961001 Available to backorder	Planet Gear	£0.48 £0.40
28	EG2824927001 Available to backorder	Sun Gear Assy	£3.85 £3.21
29	EG3520964001 Available to backorder	Ring Gear	£4.31 £3.59
30	EG3520965001 Available to backorder	Planet Gear	£0.83 £0.69
31	EG5650576001 Available to backorder	Washer	£0.83 £0.69
32	EG2790765001 Available to backorder	Motor & Gear Assembly	£28.72 £23.93
33	EG3680298001 Available to backorder	Magnet Ring	£0.85 £0.71
34	EG2831346001 Available to backorder	4230_Electric Assembly	£99.72 £83.10
35	EG5610013004 Available to backorder	Tapping Screw	£0.89 £0.74
36	EG3900652001 Available to backorder	Rear Handle Assembly	£27.35 £22.79
37	EG3127498001 Available to backorder	Power Pack Button	£0.82 £0.68
38	EG3127497001 Available to backorder	Power Pack Button	£0.56 £0.47
39	EG3660013003 Available to backorder	Spring1	£0.48 £0.40
40	EG3131427001 Available to backorder	Sliding Block	£0.52 £0.43
41	EG3660818001 Available to backorder	Compression Spring	£0.83 £0.69
42	EG3133718001 Available to backorder	Rear Switch Trigger	£1.40 £1.17
43	EG3660046001 Available to backorder	Spring	£0.48 £0.40
44	EG3129010001 Available to backorder	Lock Button	£0.83 £0.69
45	EG3660344001 Available to backorder	Spring	£0.83 £0.69
46	EG3133717001 Available to backorder	Trigger	£1.08 £0.90
47	EG3133689001 Available to backorder	Cord Anchorage	£0.43 £0.36
48	EG5690424001 Available to backorder	O Ring	£1.84 £1.53
49	EG3133666001 Available to backorder	Latch	£0.74 £0.62
50	EG5610291003 Available to backorder	Tapping Screw	£0.83 £0.69
51	EG3128269001 Available to backorder	Switch Trigger	£4.64 £3.87
52	EG2824552001 Available to backorder	Side Handle	£11.68 £9.73
53	EG2245839002 Available to backorder	Namplate	£1.08 £0.90
54	EG2245893002 Available to backorder	Namplate	£0.48 £0.40
55	EG2245895001 Available to backorder	Namplate	£0.48 £0.40
201	EG2829253001 Available to backorder	Pruning Blade Set	£104.16 £86.80
