EGO HT2000E - Hedgetrimmer (Jan 2022) Main Assy Diagram

Name: EGO HT2000E - Hedgetrimmer (Jan 2022) Main Assy Diagram
SKU: ht2000e_hedgetrimmer_jan_2022_main_assy-group
Price: 0.31 GBP
Availability: InStock

Part No. ht2000e_hedgetrimmer_jan_2022_main_assy-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

EGO HT2000E - Hedgetrimmer (Jan 2022) Main Assy Diagram

Description

EGO HT2000E Hedgetrimmer (Jan 2022) Hedge Trimmer Main Assy Parts Diagram

	Part No.	Details
1	EG5610294001 Available to backorder	Tapping Screw	£0.48 £0.40
2	EG2826647002 Available to backorder	Motor & Gear Assy	£51.02 £42.52
3	EG5650576001 Available to backorder	Washer	£0.83 £0.69
4	EG3520965001 Available to backorder	Planet Gear	£0.83 £0.69
5	EG3520964001 Available to backorder	Ring Gear	£4.31 £3.59
6	EG2824927001 Available to backorder	Sun Gear Assy	£3.85 £3.21
7	EG3520961001 Available to backorder	Planet Gear	£0.48 £0.40
8	EG3520963001 Available to backorder	Ring Gear	£4.74 £3.95
9	EG2824926002 Available to backorder	Carrier	£20.54 £17.12
10	EG2824925002 Available to backorder	Gear Case Assy	£29.48 £24.57
11	EG5660018001 Available to backorder	Circlips For Shaft	£0.48 £0.40
12	EG5650494001 Available to backorder	Washer	£1.87 £1.56
13	EG3706977001 Available to backorder	Eccentric Block	£4.39 £3.66
14	EG5630325001 Available to backorder	Flange Nut	£2.20 £1.83
15	EG3128704001 Available to backorder	Mounting Cover	£4.22 £3.52
16	EG5620216005 Available to backorder	Hexagon Socket Screw	£0.82 £0.68
17	EG3706209001 Available to backorder	Support Plate	£2.48 £2.07
18	EG5620543001 Available to backorder	Hexagon Socket Screw	£0.37 £0.31
19	EG5620544001 Available to backorder	Hexagon Socket Screw	£0.43 £0.36
20	EG5650487001 In stock	Plain Washer	£0.52 £0.43
21	EG5650196001 Available to backorder	Bush	£0.83 £0.69
22	EG2827687001 Available to backorder	Blade	£36.19 £30.16
23	EG3706866001 Available to backorder	Hold Down Strip	£2.71 £2.26
24	EG3553174001 Available to backorder	Clamp Support	£13.97 £11.64
25	EG5630007001 Available to backorder	Prevailing Torque Hexagon Nut	£0.48 £0.40
26	EG3706328001 Available to backorder	Tip Protector	£3.06 £2.55
27	EG5650015003 Available to backorder	Spring Washer	£0.83 £0.69
28	EG5610264004 Available to backorder	Hexagon Lobular Screw	£0.83 £0.69
29	EG3128993001 Available to backorder	Guard	£2.83 £2.36
30	EG3131491001 Available to backorder	Sheath	£7.63 £6.36
31	EG5610291003 Available to backorder	Tapping Screw	£0.83 £0.69

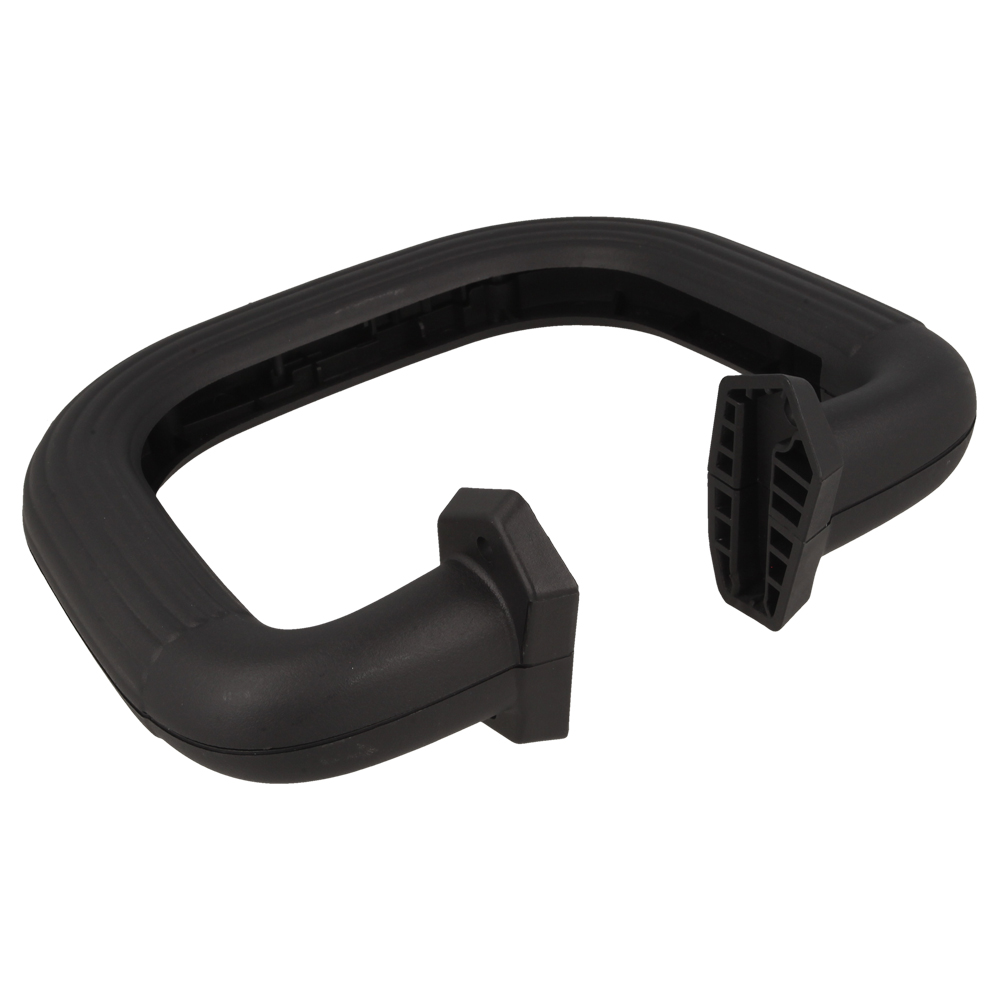

32	EG2824552001 Available to backorder	Side Handle	£11.68 £9.73
33	EG3660046001 Available to backorder	Spring	£0.48 £0.40

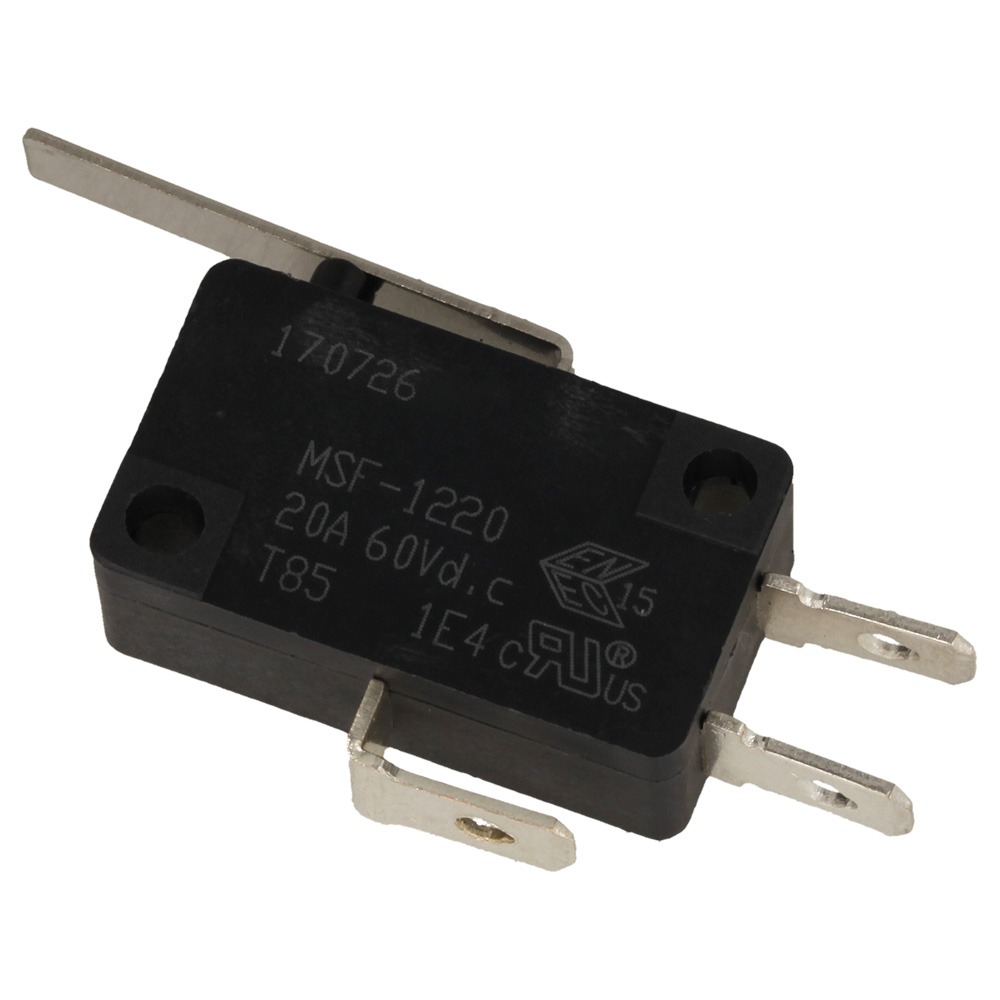

34	EG4870564001 Available to backorder	Switch	£5.54 £4.62
35	EG3128269001 Available to backorder	Switch Trigger	£4.64 £3.87
36	EG3680109001 Available to backorder	Magnet Ring	£1.03 £0.86
37	EG3128266001 Available to backorder	Lever	£0.85 £0.71
38	EG3660614001 Available to backorder	Compression Spring	£0.54 £0.45
39	EG3660344001 Available to backorder	Spring	£0.83 £0.69
40	EG3129010001 Available to backorder	Lock Button	£0.83 £0.69
41	EG3128270001 Available to backorder	Switch Trigger	£1.58 £1.32
42	EG3660028003 Available to backorder	Stop Spring	£0.83 £0.69
43	EG3127497001 Available to backorder	Power Pack Button	£0.56 £0.47
44	EG3660013003 Available to backorder	Spring1	£0.48 £0.40
45	EG3127498001 Available to backorder	Power Pack Button	£0.82 £0.68
46	EG2824930001 Available to backorder	L R Housing Set	£32.60 £27.17
201	EG2826648002 Available to backorder	Motor And Gear Case Assy	£83.28 £69.40
202	EG2827717001 Available to backorder	Blade Set	£83.28 £69.40
203	EG2830561001 Available to backorder	Electric Assembly	£83.28 £69.40
