EGO CSX3000 - Chainsaw (Jan 2022) Main Assy Diagram

Description

EGO CSX3000 Chainsaw (Jan 2022) Chainsaw Main Assy Parts Diagram

	Part No.	Details

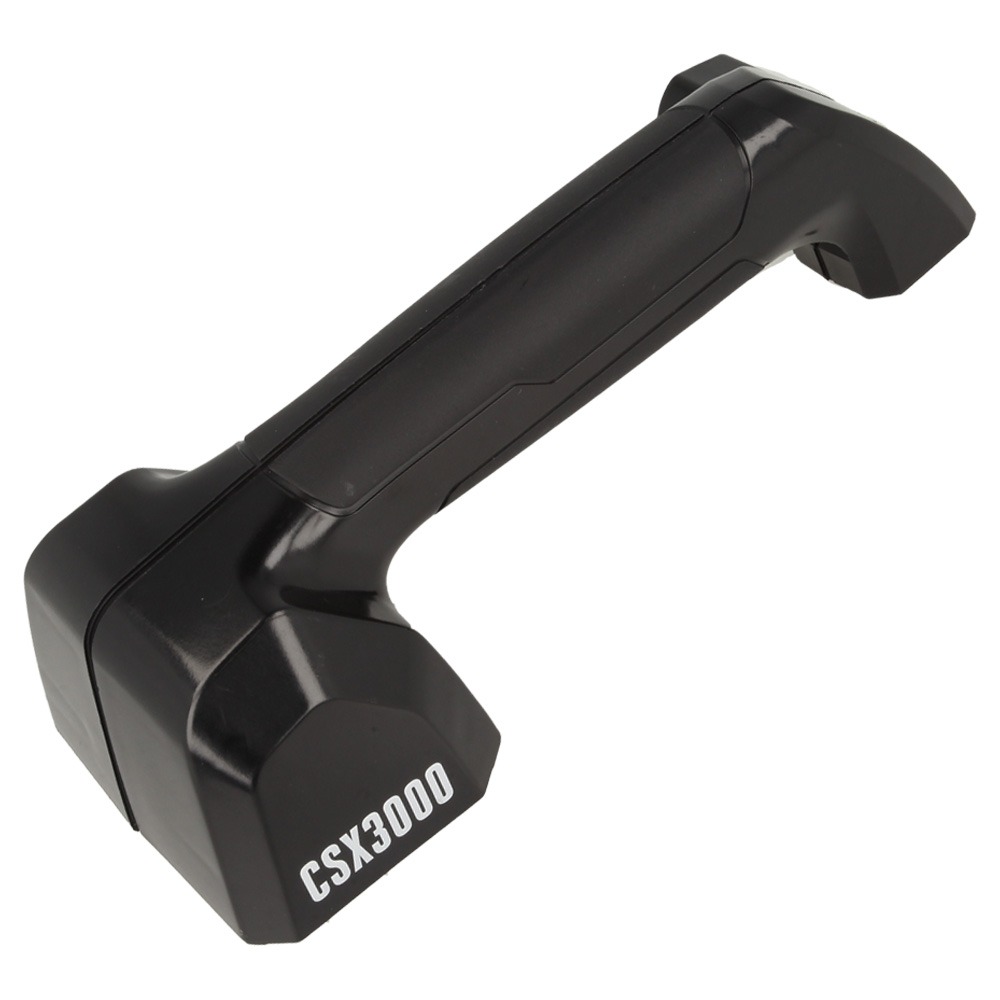

3	EG2827689001 Available to backorder	Handle Assembly	£11.32 £9.43
4	EG5670313002 Available to backorder	Pin	£0.83 £0.69
5	EG4870752001 Available to backorder	Switch Assembly	£33.35 £27.79
6	EG3660697001 Available to backorder	Torsion Spring	£0.83 £0.69
7	EG2827132002 Available to backorder	Switch Lever Assembly	£13.57 £11.31
8	EG3422689001 Available to backorder	Trigger Lever	£4.00 £3.33
9	EG2830718001 Available to backorder	Fuse Electric Assembly	£16.03 £13.36
10	EG5620479001 Available to backorder	Screw	£0.48 £0.40
11	EG3521234001 Available to backorder	Plunge Frame	£1.55 £1.29
12	EG3130880001 Available to backorder	Lock Button	£0.83 £0.69
13	EG2827275002 Available to backorder	Tension Nut Assembly	£15.91 £13.26
17	EG3707340001 Available to backorder	Protecting Cover Plate	£0.83 £0.69
14	EG3707341001 Available to backorder	Chip Shield	£1.82 £1.52
18	EG2827278002 Available to backorder	Pivot Plate Assembly	£12.29 £10.24
15	EG3707012001 Available to backorder	Wood Teeth	£3.79 £3.16
19	EG3130984001 Available to backorder	Sealing Gasket	£0.83 £0.69
16	EG5620013006 Available to backorder	Hexagon Socket Screw	£0.83 £0.69
20	EG3660802001 Available to backorder	Tension Spring	£1.55 £1.29
21	EG3130858001 Available to backorder	Cover Plate	£2.71 £2.26
22	EG5670298001 Available to backorder	Parallel Pin	£0.83 £0.69
23	EG2827274001 Available to backorder	Crank Assembly	£5.81 £4.84
24	EG5660266001 Available to backorder	C Ring	£0.83 £0.69
25	EG5630369001 Available to backorder	Flange Nut	£5.81 £4.84
26	EG3660803001 Available to backorder	Compression Spring	£1.84 £1.53
27	EG3707342001 Available to backorder	Brake Band	£4.91 £4.09
28	EG5660028001 In stock	E Ring	£0.54 £0.45
29	EG3422529001 Available to backorder	Sprocket	£17.96 £14.97
30	EG5660208002 Available to backorder	Gasket	£2.88 £2.40
31	EG3130860001 Available to backorder	Right Cover	£1.03 £0.86
32	EG5690474001 Available to backorder	Felt Ring	£0.83 £0.69
33	EG5650526002 Available to backorder	Plain Washer	£0.83 £0.69
34	EG5620651002 Available to backorder	Hexalobular Socket Screw	£0.83 £0.69
35	EG3130857001 Available to backorder	Cover Plate	£1.68 £1.40
36	EG5690203001 Available to backorder	O Ring	£0.48 £0.40
37	EG3130983001 Available to backorder	Rear Tube	£1.28 £1.07
38	EG2827231001 Available to backorder	Pump Assembly	£31.28 £26.07
39	EG3570062001 Available to backorder	Worm	£0.83 £0.69
40	EG3130982001 Available to backorder	Intermediate Tube	£0.89 £0.74
41	EG3707343001 Available to backorder	Fixing Board	£0.52 £0.43
42	EG3650257001 Available to backorder	Pothook	£1.03 £0.86
43	EG5610291003 Available to backorder	Tapping Screw	£0.83 £0.69
44	EG3403164001 Available to backorder	Right Housing	£12.68 £10.57
45	EG3130979001 Available to backorder	Protective Cover	£0.83 £0.69
46	EG5620019005 Available to backorder	Hexagon Socket Screw	£0.83 £0.69
47	EG2827276002 Available to backorder	Support Assembly	£46.01 £38.34
48	EG5680216001 Available to backorder	Key	£0.83 £0.69
49	EG2830736002 Available to backorder	Control Electric Assembly	£124.92 £104.10
50	EG2830698001 Available to backorder	Signal Acquisition Pcba	£7.90 £6.58
51	EG2730321001 Available to backorder	Dc Motor	£124.92 £104.10
52	EG3130862001 Available to backorder	Right Fan Baffle	£2.71 £2.26
53	EG5610237001 Available to backorder	Tapping Screw	£0.83 £0.69
54	EG3130861001 Available to backorder	Left Fan Cover	£2.98 £2.48
55	EG4860525003 Available to backorder	Internal Wire Assy	£61.20 £51.00
56	EG3130852001 Available to backorder	Left Housing	£12.94 £10.78
57	EG3130853001 Available to backorder	Front Handle	£9.71 £8.09
58	EG3131120001 Available to backorder	Rubber Ring	£0.83 £0.69
59	EG2827277002 Available to backorder	Kettle Cover Assembly	£6.20 £5.17
60	EG3128576001 Available to backorder	Valve	£1.82 £1.52
61	EG2827286002 Available to backorder	Oil Screen Assembly	£5.54 £4.62
62	EG5650419002 Available to backorder	Plain Washer	£0.48 £0.40
63	EG5620176002 Available to backorder	Screw With Washer	£0.83 £0.69
64	EG3131184001 Available to backorder	Sheath	£6.46 £5.38
65	EG5680272001 Available to backorder	Socket Wrench	£6.97 £5.81
201	EG2827131002 Available to backorder	Brake Assembly	£35.06 £29.22
202	EG2827709001 Available to backorder	Kettle Assembly	£4.26 £3.55
