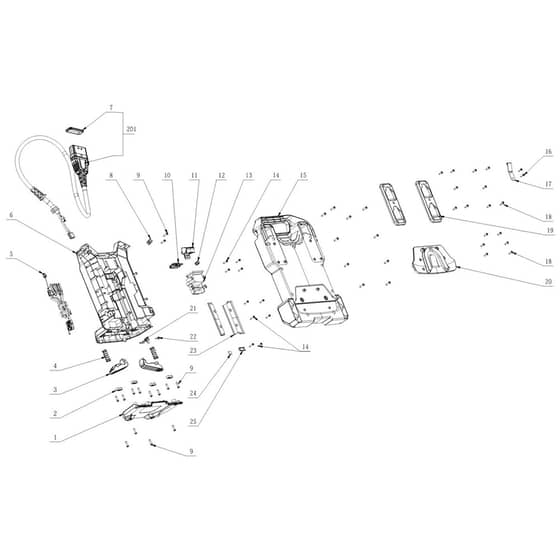

EGO BHX1000 Backpack Harness (Jan 2022) Accessory Main Assy Parts Diagram

Ref. Img. Part No. Details
  1 Bottom Support
Bottom Support
EG3129071001
Available to backorder
Bottom Support
£3.30 £2.75

  2 Cord Anchorage
Cord Anchorage
EG3122798001
Available to backorder
Cord Anchorage
£0.48 £0.40

  3 Lever
Lever
EG3126773001
Available to backorder
Lever
£1.56 £1.30

  4 Spring
Spring
EG3660306002
Available to backorder
Spring
£0.78 £0.65

  5 Electric Assembly
Electric Assembly
EG2830264001
Available to backorder
Electric Assembly
£28.92 £24.10

  6 Front Housing
Front Housing
EG3129073001
Available to backorder
Front Housing
£27.11 £22.59

  7 Seal Ring
Seal Ring
EG5690356002
Available to backorder
Seal Ring
£1.34 £1.12

  8 Cord Anchorage
Cord Anchorage
EG3700285001
Available to backorder
Cord Anchorage
£0.80 £0.67

  9 Tapping Screw
Tapping Screw
EG5610294001
Available to backorder
Tapping Screw
£0.48 £0.40

  10 Power Pack Button
Power Pack Button
EG3127497001
Available to backorder
Power Pack Button
£0.58 £0.48

  11 Power Pack Button
Power Pack Button
EG3127498001
Available to backorder
Power Pack Button
£0.83 £0.69

  12 Spring1
Spring1
EG3660013003
Available to backorder
Spring1
£0.48 £0.40

  13 Support
Support
EG3128359001
Available to backorder
Support
£1.12 £0.93

  14 Self Tapping Screw
Self Tapping Screw
EG5610274001
Available to backorder
Self Tapping Screw
£0.48 £0.40

  15 Rear Housing
Rear Housing
EG3322690001
Available to backorder
Rear Housing
£44.24 £36.87

  16 Screw With Washer
Screw With Washer
EG5620410002
Available to backorder
Screw With Washer
£0.80 £0.67

  17 Leaf Spring
Leaf Spring
EG3706275001
Available to backorder
Leaf Spring
£0.85 £0.71

  18 Tapping Screw
Tapping Screw
EG5610329001
Available to backorder
Tapping Screw
£0.80 £0.67

  19 Mounting Plate
Mounting Plate
EG3128805001
Available to backorder
Mounting Plate
£1.76 £1.47

  20 Mounting Plate
Mounting Plate
EG3128807001
Available to backorder
Mounting Plate
£4.26 £3.55

  21 Lever
Lever
EG3129115001
Available to backorder
Lever
£0.80 £0.67

  22 Torsion Spring
Torsion Spring
EG3660682001
Available to backorder
Torsion Spring
£0.80 £0.67

  23 Cover
Cover
EG3128361001
Available to backorder
Cover
£0.72 £0.60

  24 Sponge Pad
Sponge Pad
EG3706436001
Available to backorder
Sponge Pad
£0.80 £0.67

  25 Cord Anchorage
Cord Anchorage
EG3700367001
Available to backorder
Cord Anchorage
£0.48 £0.40

  201 Power Cord Assy
Power Cord Assy
EG4810227001
Available to backorder
Power Cord Assy
£79.32 £66.10
